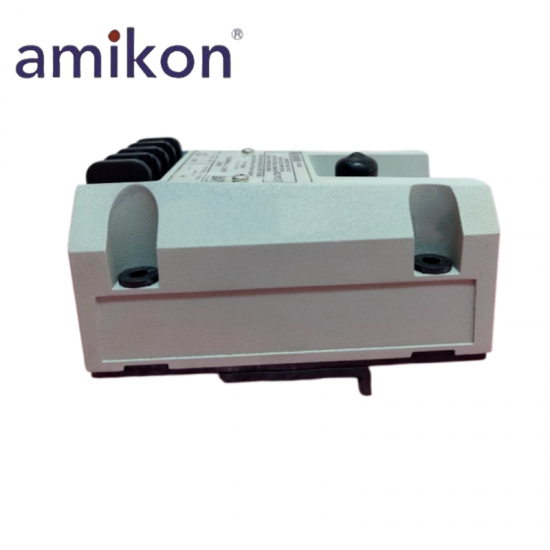

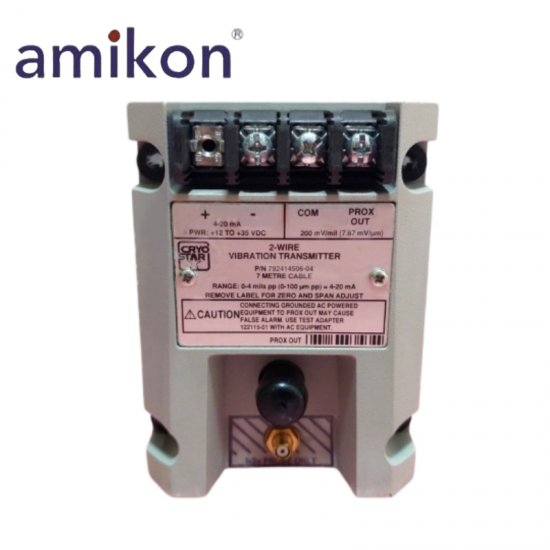

Bently Nevada 792414506-04 2-Wire Vibration Transmitter

Product Information

Part Number: 792414506-04

Product Type: 2-Wire Vibration Transmitter

Manufacturer: Bently Nevada

Country of origin: USA

Place of shipment: Xiamen, Fujian, China

Product Parameters

Cable Length: 7 metres

Power Supply: +12 to +35 VDC

Main Output Signal: 4–20 mA

Measurement Range:

0–4 mils peak-to-peak (0–100 µm peak-to-peak)

Output Scaling:

0–4 mils peak-to-peak corresponds to 4–20 mA

Proximity Output Sensitivity:

 200 mV/mil (7.87 mV/µm)

Connection Terminals:

Positive (+), Negative (−), COM, and PROX OUT

Zero and Span Adjustment:

Accessible after removing the front label

North American Hazardous-Location Rating:

Class I, Division 2, Groups A, B, C and D

North American Temperature Code:

T5 at Ta ≤ 85°C

ATEX / IECEx Temperature Range:

T4 at −35°C ≤ Ta ≤ 85°C

Explosion-Protection Marking 1:

II 3 G Ex nA IIC T4 Gc

Explosion-Protection Marking 2:

II 1 G Ex ia IIC T4 Ga

ATEX Certificate: LCIE 06 ATEX 6052X

ATEX Certificate: LCIE 06 ATEX 6055X

IECEx Certificate: IECEx LCIE 13.0046 X

Certification / Compliance Marks:

 CSA c/us, CE 1180, RCM and Ex

E1–E2 Entity Parameters: Ui ≤ 28 V; Ii ≤ 120 mA; Pi ≤ 0.84 W; Ci ≤ 20 nF; Li ≤ 10 µH

E3–E4–J2 Entity Parameters: Uo ≤ 28 V; Io ≤ 6 mA; Po ≤ 0.17 W; Co ≤ 80 nF; Lo ≤ 1 H

J3 Entity Parameters: Uo ≤ 28 V; Io ≤ 100 mA; Po ≤ 0.8 W; Co ≤ 27.3 nF; Lo ≤ 5.3 mH
