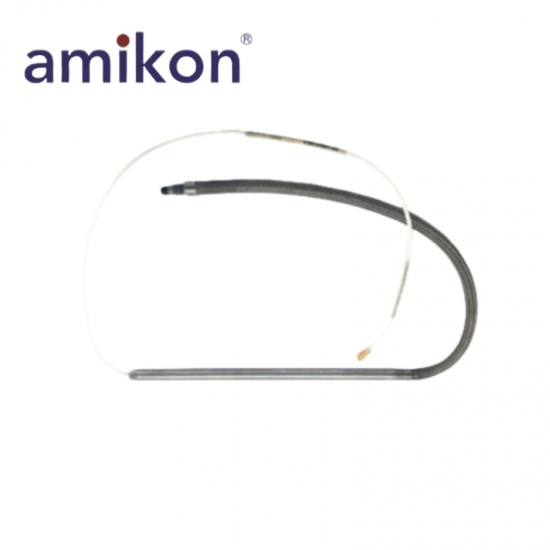

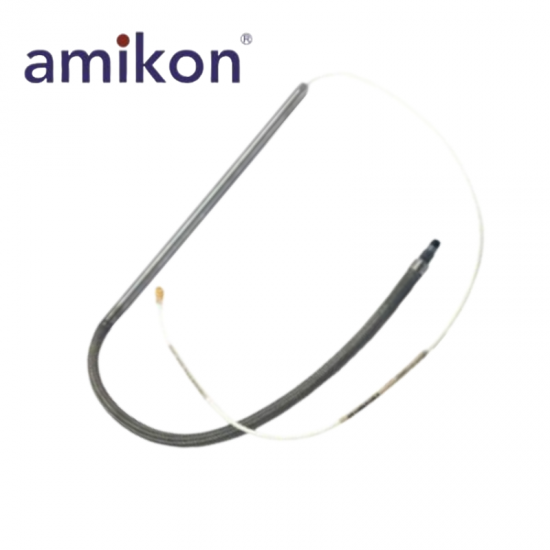

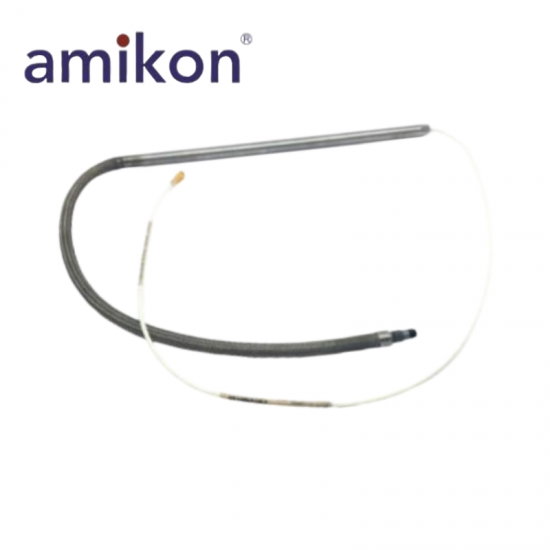

Bently Nevada 86691-01780-1300-15 Vibration Probe

Contact Info

 Sales manager：Jim Pei

 Email：sales6@amikon.cn

 Wechat: ZXH18020776782

 Phone/WhatsApp：+86 18020776782

Product Description

Product Model: 86691-01780-1300-15

Product Parameters: Vibration Probe

Country of origin: USA

Place of shipment: Xiamen, China

Manufacturer: Bently Nevada

Vibration Amplitude: Typically 0-1000 mils (thousandths of an inch) or 0-25 mm

Vibration frequency: from DC to 100 kHz

Analog signal: 4-20 mA output, or 10V DC output

Working voltage: 24V DC (optional 24V AC)

Power consumption: Typically in the 10-20W range

Temperature range: -40°C to +85°C

Humidity range: 0% to 95% (non-condensing)

Measurement Range: ± 0.25 mm

Features

Product Type & Application: The vibration probe is designed for continuous monitoring of machinery vibration amplitude and dynamic behavior. It is widely used in industrial rotating equipment for condition monitoring and fault detection.

Measurement Capability: It supports a vibration amplitude range of 0–1000 mils (0–25 mm) with a measurement range of ±0.25 mm for high-resolution detection. This enables accurate monitoring of small displacement changes in machinery.

Frequency Response: The system operates over a wide frequency range from DC to 100 kHz. This allows it to capture both low-frequency structural movement and high-frequency vibration signals.

Output Signal: The probe provides standard industrial outputs including 4–20 mA current signal or 10 V DC voltage output. This ensures compatibility with most control and monitoring systems.

Power Requirements: It operates on a 24 V DC supply, with optional support for 24 V AC configurations. Typical power consumption is in the 10–20 W range for stable operation.

Environmental Performance: The device operates reliably in temperatures from -40°C to +85°C and humidity levels from 0% to 95% non-condensing. This makes it suitable for harsh industrial environments.

Connection Interface: It uses a 5-pin M12 connector for secure and standardized electrical connection. This ensures easy installation and stable signal transmission in field applications.
