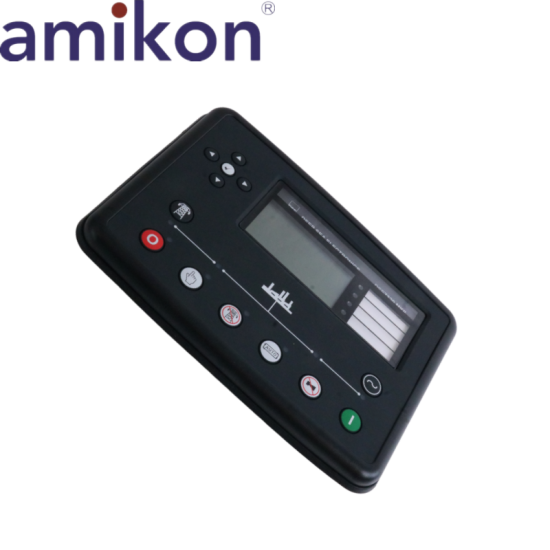

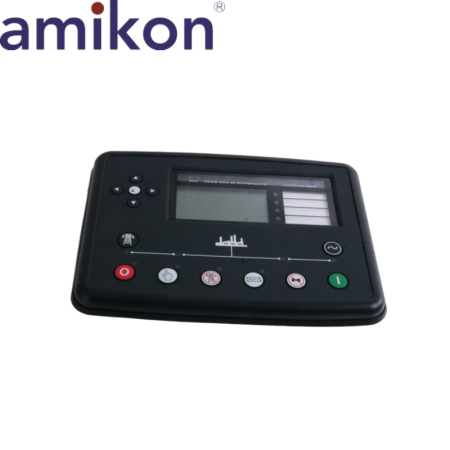

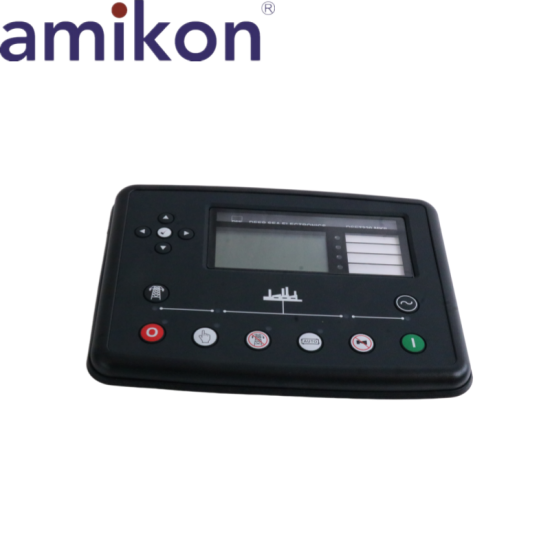

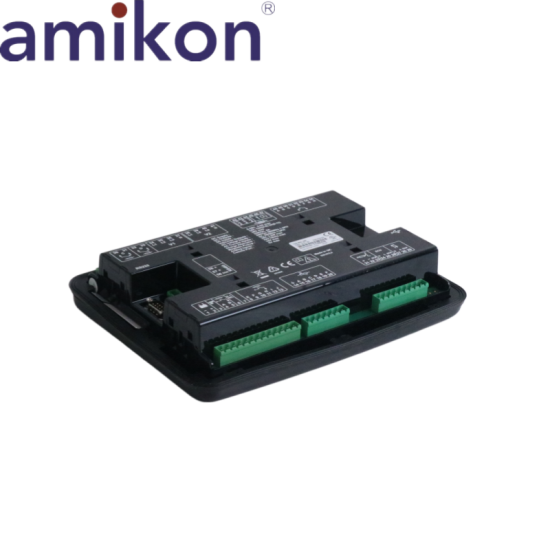

DEEPSEA DSE8660 MKII module

Sales manager:Jim Pei

Wechat: ZXH18020776782

Email : sales6@amikon.cn

Phone/WhatsApp: +8618020776782

Brand:DEEPSEA

Item NO:DSE8660 MKII

Description:module

Product Origin:XIAMEN,CHINA

Shipping Port:Modbus RTU

Weight:0.88kg

Dimensions: 24.5 cm x 18.4 cm x 5.1 cm

DC Supply:5 V to 35 V Continuous

Current (Operating/Standby):530mA/320mA (12V), 280mA/160mA (24V)

Voltage/Freq (Mains & Bus):15-415V AC (Ph-N), 3.5-75 Hz

Digital Inputs:12 (Configurable)

Communication Ports:RS232, RS485, Ethernet, USB

Storage Temperature Range:-40°C to +85°C (-40°F to +185°F)

Operating Temperature Range:-30°C to +70°C (-22°F to +158°F)

The DSE8660 MKII is a robust auto mains failure controller built for panel mounting, designed to monitor utility supplies and manage one or more DSE8610 MKII generator sets. It handles synchronising, load sharing, and load demand start/stop, while offering true RMS power monitoring, multiple communication ports, and built-in mains failure detection via ROCOF and vector shift protection. With its integral PLC and configurable front panel or PC software, this module provides flexible control for parallel or island operations.
