Product Introduction

Part Number: GE  DS200PTCTG2BAA

Manufacture: GE

Origin: USA

Condition: Brand New

The GE Signal Conditioner Board DS200PTCTG2BAA features 1 terminal block with terminals for 72 signal wires. It also contains 1 50-pin connector. The IDs for the terminals on the terminal block include OUT2, OUT1, COM1, COM2, P15, SO21, and L23.  When the original board is installed from the factory, the installation guide describes each of the terminals and provides information about which signal wires to connect to them. The board receives some of the signals for processing. Other signals are transmitted to other boards. Make sure approximately one half inch of insulation is removed from the signal wires to make contact with the terminal.

The board also contains terminals for 6 signal wires. The terminals are held in place with screws that are on the surface of the board. Use a flat-blade screwdriver to open the terminals. However, care must be taken that you do not scratch the surface of the board with the blade of the screwdriver. Use one hand to guide the blade of the screwdriver to the screw and use the other hand to turn the screwdriver. Wrap the signal wire around the terminal and tighten the screw. Keep the screwdriver from scratching the surface of the board. The terminals are associated with a 3-character ID. The first character is a number. The second and third characters are TB. For example, some terminal IDs are 1TB, 2TB, and 3TB.

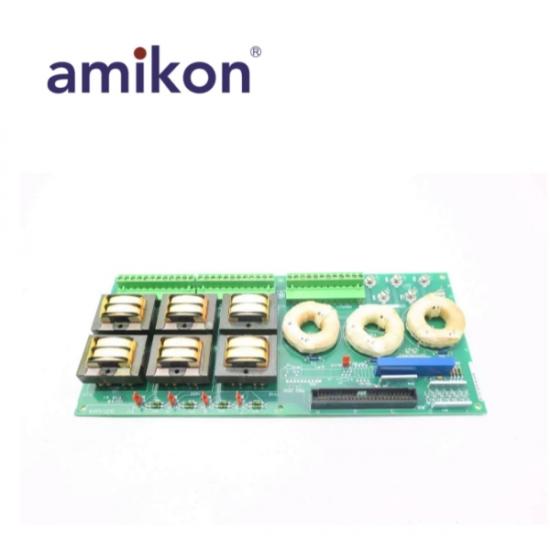

The GE Signal Conditioner Board DS200PTCTG2BAA is populated with 2 isolated amplifiers and multiple flat wire inductors. The components are directly embedded on the board.
