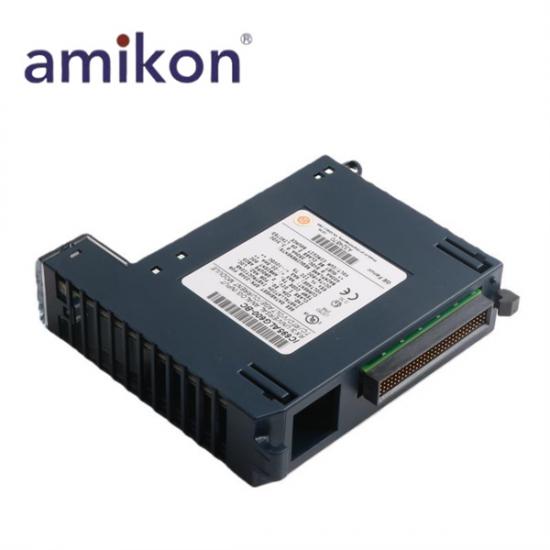

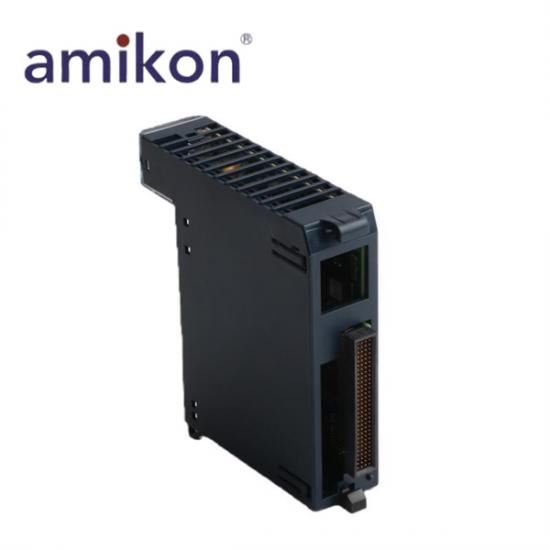

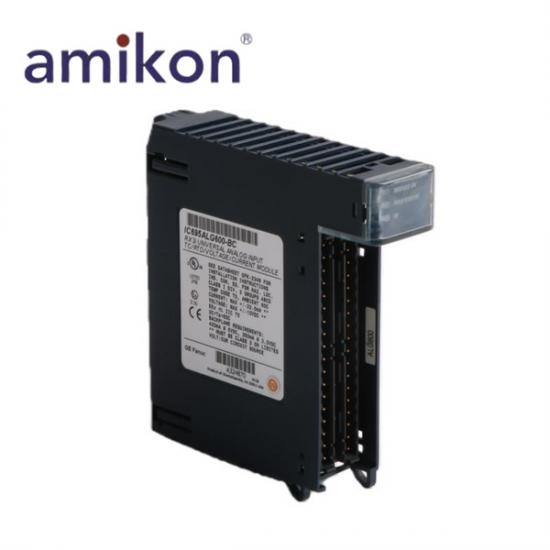

GE IC695ALG600-DD Universal Analog Input Module

Manufacturer: GE
Product Numbers: IC695ALG600-DD
Product Type: Universal Analog Input Module
Place of 0rigin: USA
Backplane Power Requirements: 300 mA maximum @ 5.0V; 320 mA maximum @ 3.3V.
Power Dissipation within Module Thermal Dissipation: 5.4 watts maximum
Per Channel Acquisition Time (Each group scanned independently): 10 msec @ 1000 Hz, 13 msec @ 200 Hz, 27 msec @ 40 Hz, 67 msec @ 16 Hz, 87 msec @ 12 Hz, 127 msec @ 8 Hz
Input resolution: 11 to 16 bits, depending on configured range and A/D filter frequency.
Current Inputs: -20mA to +20mA, 4 to 20mA, 0 to 20mA
Configurable Input Filter: 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 1000 Hz
Scaling: Floating point user scaling.
Max RTD Cable Impedance: 25 ohm
RTD Wire Length: 1000 ft max w/settling time of 1mSec
Input Impedance: >1M ohm for TC/V/RTD
Current Input Resistance: 249 ohm +/- 1%

The GE IC695ALG600-DD Universal Analog Input Module is a high-performance analog input module designed for PACSystems RX3i control platforms. It provides eight general-purpose input channels and two Cold Junction Compensation (CJC) channels, allowing simultaneous measurement of voltage, current, thermocouple, RTD, and resistance inputs. Each channel is individually configurable using Proficy Machine Edition software, supporting flexible scaling, filter selection, and alarm settings. The module supports hot insertion and removal, terminal block detection, and onboard diagnostic features, ensuring reliable operation in industrial automation applications.
The IC695ALG600-DD delivers precise and rapid signal acquisition, with per-channel acquisition times ranging from 10 msec to 127 msec depending on filter frequency, and input resolution of 11 to 16 bits. It includes advanced error checking, open-circuit and short-circuit detection, and user-defined alarms such as overrange, underrange, and rate-of-change. Compatible with RX3i CPUs and a variety of terminal block styles—including Box-style, Extended Box-style, Spring-style, and Extended Spring-style—the module meets CE, UL/CUL 508/1604, and ATEX standards, providing robust, software-configurable analog input capability for demanding industrial environments.

Your Dedicated Account Manager

At Amikon, every inquiry is handled by a dedicated account manager who is fully trained and focused on your needs. They understand your priorities—highest quality, best pricing, and fastest delivery—and are available to assist with even the smallest question at any time with transparency and honesty.

Fast and Reliable Turnaround

In the industrial sector, timing is crucial. Your account manager provides precise lead times for every request, and Amikon ensures shipments arrive as promised. We can coordinate with any carrier you prefer and keep you informed with tracking details from dispatch to delivery.

Highly Competitive Pricing

Amikon not only maintains an extensive inventory, but also leverages a global network of manufacturers and suppliers to secure the best prices for every part. This ensures you receive excellent value without compromising on quality or availability.

Q1: What types of input signals does the IC695ALG600-DD support?
A1: The module supports voltage, current, thermocouple, RTD, and resistance inputs, including B, C, E, J, K, N, R, S, T thermocouples and PT, NiFe, and CU RTDs.

Q2: How is each channel configured?
A2: Each channel can be individually configured using Proficy Machine Edition software, allowing user-defined scaling, filter selection, and alarm settings without hardware jumpers.

Q3: Can the IC695ALG600-DD be installed or removed while the system is running?
A3: Yes, the module supports hot insertion and extraction, and it automatically detects terminal block insertion or removal to ensure safe operation.

Q4: How does the module handle faults or abnormal input conditions?
A4: The module performs onboard error checking, detects open-circuits and short-circuits for most input types, and reports channel-specific alarms such as overrange, underrange, high/low alarms, and calibration faults.

Q5: What are the environmental and safety standards for this module?
A5: The IC695ALG600 meets CE, UL/CUL 508 and 1604, and ATEX standards, ensuring reliable operation in demanding industrial environments with high safety compliance.
