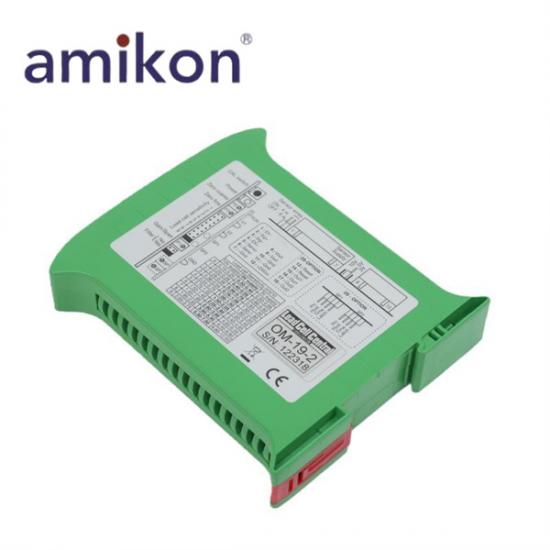

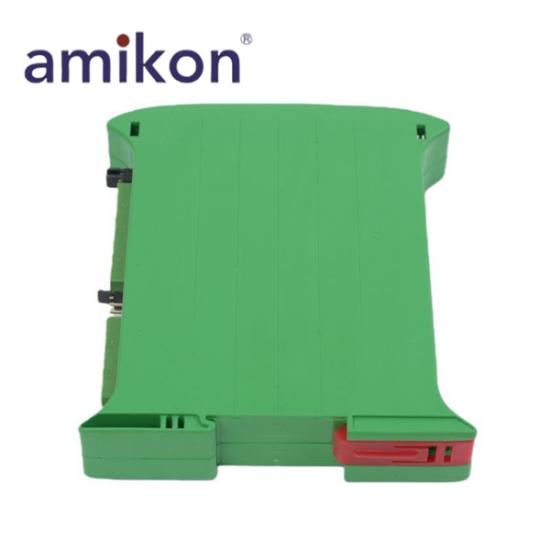

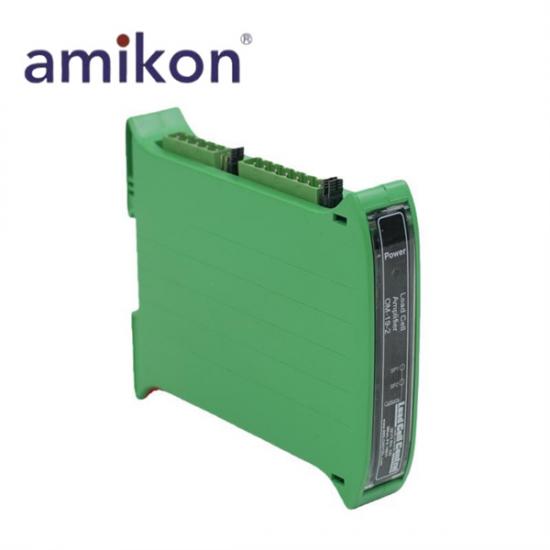

Load Cell Central OM-19-2 Load Cell Amplifier

Manufacturer: Load Cell Central
Product Model:OM-19-2
Product Type: Load Cell Amplifier
Place of 0rigin: USA
Power supply: 24 ±4 Vdc
Accuracy class: 0.05 %
Temperature effect on zero: ≤0.035 %F.S./℃
Temperature effect on span: ≤0.02 %/℃
Operating temperature range: 0...+70 ℃
Load cell input voltage (engaged with jumper): 3, 5, 10 Vdc
Min. load cell impedance: excit. 3/5 V: 80 Ω
Min. load cell impedance: excit. 10 V: 160 Ω
Span adjustment: 0.15...12 mV/V
Max supply current OM‑19 / OM‑192S: 120 / 170 mA
Voltage output: ±10, 0‑10 V
Current output: 4‑20 mA
Load impedance for voltage output: ≥2000 Ω
Load impedance for current output: ≤500 Ω
Capacitive load on the output: ≤1 nF
Filtering (engaged with jumper) low pass (-3dB): 10 Hz
Bandwidth: ≤20 KHz
Number of set points: 2
Adjustment: 2 potentiometers
Selectable functioning direction: yes
Hysteresis: 1.1 / 0.2 % F.S.
Holding time: 5 / 600 ms
Latch function: yes
Response time: 7 ms
Relay Technology: Photorelays
On‑state current max. at 40℃: 0.4 A
Off‑state voltage: 55 V
On‑state resistance: 2 Ω
Isolation voltage: 2500 Vrms

Load Cell Central’s OM-19 load cell amplifier is the perfect solution for OEM applications that do not require a load cell display.  24VDC powered, this load cell amplifier is often paired with PLC systems, and provides an amplified load cell signal to 0-10V, +/-10VDC, or 4-20mA output.  The OM-19 can power up to four 350 ohm strain gage load cells.  The OM-19 load cell amplifier also features a shunt calibration switch, sense connections, excitation jumpers, and variable output rates from the factory.  The OM-19 signal conditioner comes in several models, including OM-19-1 which is an OEM bare board version, OM-19-2 is DIN rail mountable, or OM-19-3 the fully enclosed version.  Each version is also available with two optional configurable setpoints.

Features

• The OM-19 load cell amplifier is able to run up to four strain gage load cells (350 Ohm)
• 4 or 6 wire load cell
• Voltage output (±10 VDC or 0-10 VDC) and current ouput (4-20 mA)
• Shunt calibration signal
• 2 variable setpoints optional on model OM-192S
