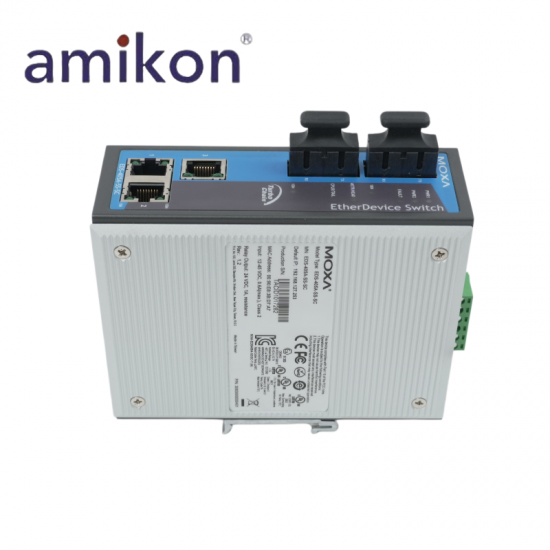

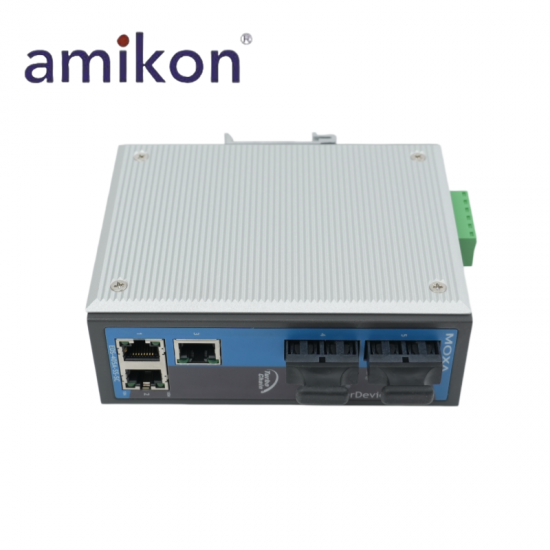

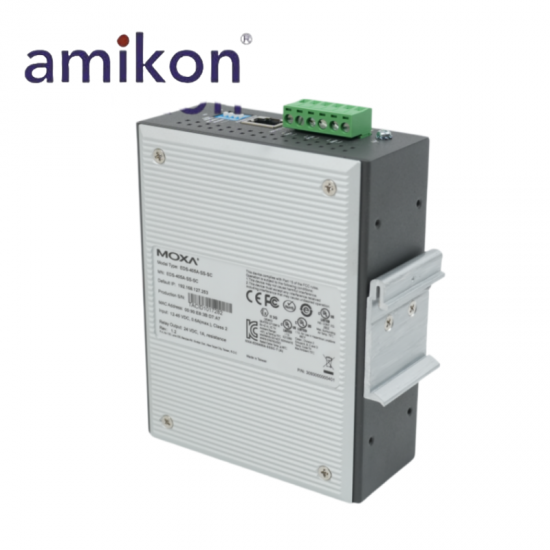

EDS-405A-SS-SC
EDS-405A-SS-SC
Item NO.:
EDS-405A-SS-SCProduct Origin:
TaiwanManufacturer:
MOXAPart number:
EDS-405A-SS-SCHS CODE:
8537101190Warranty:
12 monthsProduct Specifications
Part Number: EDS-405A-SS-SC
Product Type: Entry-Level Managed Ethernet Switch
Manufacturer: MOXA
Country of origin: Taiwan
Place of shipment: Xiamen,Fujian,China
Fiber Cable Type: G.652
Typical Distance: 40 km
Wavelength Typical (nm): 1310
Wavelength TX Range (nm): 1280 to 1340
Wavelength RX Range (nm): 1100 to 1600
Optical Power TX Range (dBm): 0 to -5
Optical Power RX Range (dBm): -3 to -34
Optical Power Link Budget (dB): 29
Optical Power Dispersion Penalty (dB): 1
10/100BaseT(X) Ports (RJ45 connector): 3
100BaseFX Ports (single-mode SC connector): 2
Industrial Protocols: EtherNet/IP Modbus TCP
IGMP Groups: 256
MAC Table Size: 2 K
Max. No. of VLANs: 64
Packet Buffer Size: 1 Mbits
Priority Queues: 4
VLAN ID Range: VID 1 to 4094
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): 40 to 85°C (-40 to 185°F)
