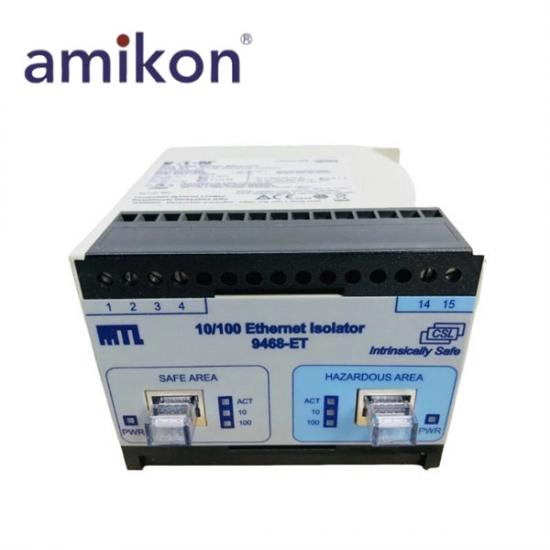

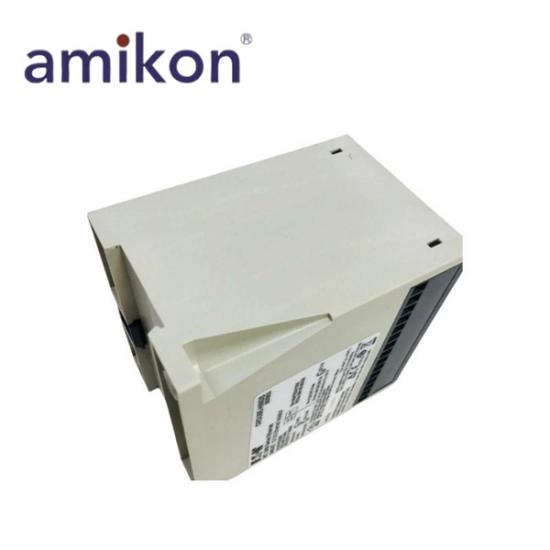

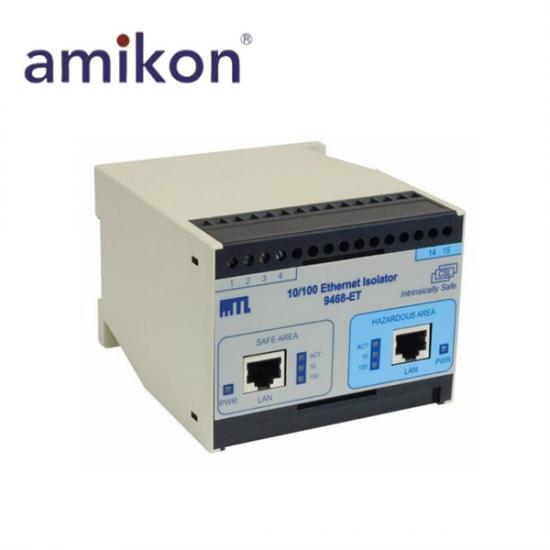

MTL 9468-ET Intrinsically Safe Ethernet Isolator

MTL 9468-ET Intrinsically Safe Ethernet Isolator

Manufacturer: MTL
Product Numbers: 9468-ET
Product Type: Intrinsically Safe Ethernet Isolator
Place of 0rigin: Sweden
Condition: 100% Original
Warranty: 1 Year
Input voltage: 24V DC (20–30V)
Input current: 220mA
Input protection: Fuse + supply reversal diode
GENERAL PURPOSE ETHERNET: 10/100 base T
IS ETHERNE: TIntrinsically Safe 10/100 base T
Operating: –40°C to +70°C
Storage: –40°C to +70°C
Relative Humidity: 5 to 95% RH (non-condensing)

The 9468-ET 10/100Mbps, Isolating Ethernet Barrier allows the interconnection of a Zone 2 or uncertified safe area device to the intrinsically safe 9400-ET range of Ethernet networking products, operating in the hazardous area. The isolating barrier provides acompact alternative solution to fibre optic cable and media converters and for when it is desirable to use Cat5e cables in preference to fibre.The 9468-ET is designed for Zone 2 hazardous-area mounting inside a suitable enclosure and has intrinsically safe ATEX and IECEx approvals, together with IS approval for USA and Canada. FM  Division 2 mounting approval is pending. The ATEX and IECEx approvals cover both surface industry and mining applications.10/100Mb Ethernet twisted pair (Cat5e) RJ45 connections(100metres length max.). These RJ45 ports provide total galvanic isolation (Um=253Vac) from safe to hazardous areas.
