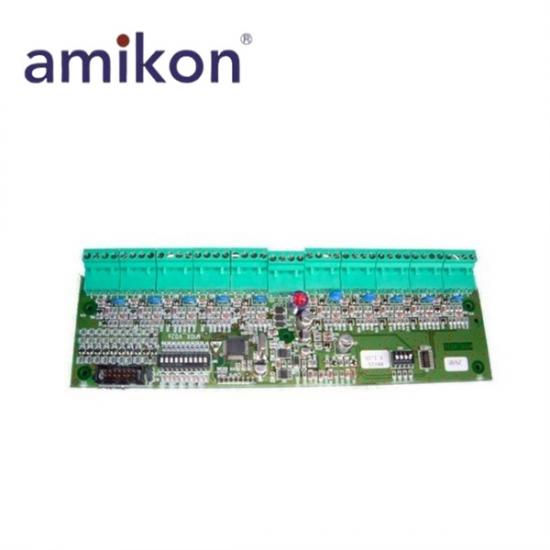

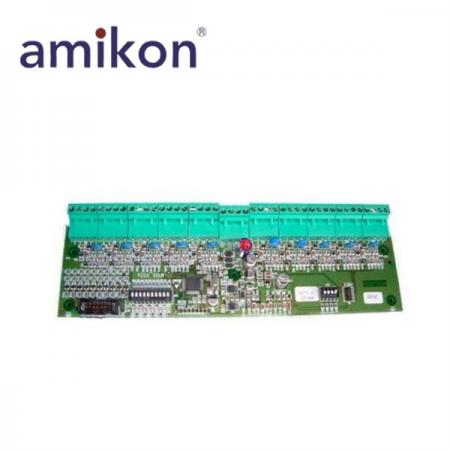

The NOTIFIER MMX-10M 10 Way Monitor Module is part of a 10-way I/O module range (alongside CMX-10RM and MCX-55) designed for Notifier analogue addressable loops.  It provides 10 individually addressed inputs, configurable to monitor open circuit, short circuit, and active (fire) conditions.
Each module uses up to 10 consecutive addresses (base set via DIP switch; individual addresses can be disabled for loop sharing).  It operates on 17–28 Vdc loop voltage, with an alarm threshold of 560 Ω ±5 %, short-circuit threshold <100 Ω, and open-circuit threshold >20 kΩ.  Operating temperature ranges from –10 °C to +55 °C, with 10–93% non-condensing RH, serving as a cost-effective, compact solution for multi-point monitoring in fire systems.

Manufacturer: NOTIFIER
Product Numbers: MMX-10M
Product Type: 10 Way Monitor Module
Country of origin: USA
Loop operating voltage: 17–28 Vdc
LED current: 5 mA @ 24 Vdc
Alarm threshold: 560 Ω ±5 %
Short-circuit threshold: < 100 Ω
Open-circuit threshold: > 20 kΩ
Minimum switching load: 1 mA @ 5 Vdc
Operating temperature: –10 °C to +55 °C
Storage temperature: –30 °C to +70 °C
Relative humidity: 10 % – 93 % RH, non-condensing
