1. Product Overview

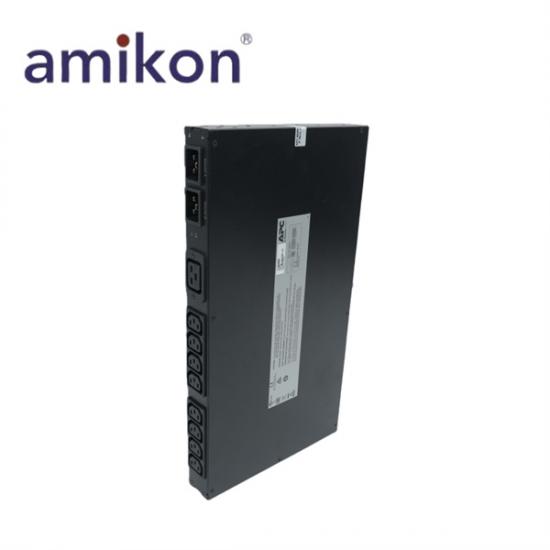

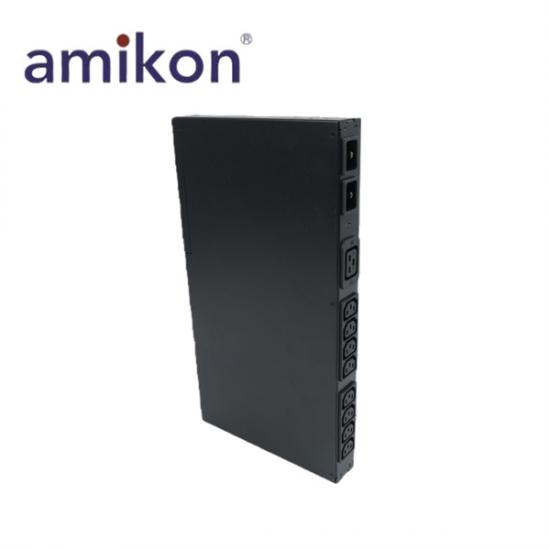

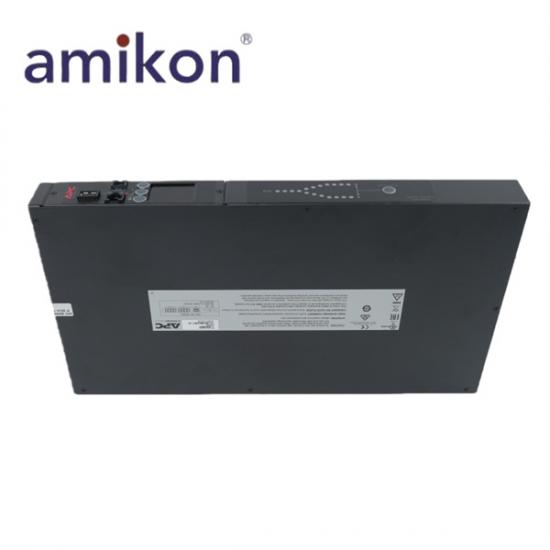

Schneider AP4423 is a rack automatic transfer switch for supplying single-corded IT equipment from two independent 230 V AC sources. It uses two IEC C20 inputs and distributes power through eight IEC C13 outlets and one IEC C19 outlet in a 1U rack enclosure.

The switch powers connected loads from the selected primary source. If that source becomes unavailable or moves outside the configured transfer range, AP4423 changes to the alternate source. Local controls and the network interface provide source selection, status, current monitoring, event information and alarm visibility.

2. Product Specifications

3. Dual-Source Transfer and Load Distribution

Source selection and transfer

AP4423 accepts two AC sources and allows a preferred source to be selected locally or through the network interface. The transfer mechanism changes sources safely even when the inputs are not phase synchronized. Voltage sensitivity and transfer ranges can be configured for the installation.

Outlet distribution

Eight C13 outlets and one C19 outlet allow several single-corded devices to connect directly to the ATS. The 16 A rating, 3700 VA capacity and outlet loading must be considered as one aggregate load rather than as independent full-rated outlets.

4. Monitoring, Alarms and Network Access

AP4423 measures aggregate load current and provides near-overload and overload indications. Operators can review source condition, alarms, transfer events and load data from the front panel or the network management interface.

Remote access supports Web, SNMP, SSH and Telnet functions, together with StruxureWare Data Center Expert integration. The serial configuration cable supplied with the unit supports initial setup when network parameters are not yet available.

5. Lifecycle and Replacement Information

Status: Discontinued on 9 June 2023.
Replacement: Schneider Electric identifies AP4423A as the replacement for AP4423.

6. FAQ

What should be checked before replacing an installed Schneider AP4423?

Match the 230 V supply, two IEC C20 inputs, eight C13 outlets, one C19 outlet, 16 A rating and 1U rack arrangement. AP4423A is the identified replacement, but the installed cords, outlet loading and network configuration should still be recorded before the change.

How does Schneider AP4423 protect a single-corded load when the preferred source is lost?

AP4423 feeds the load from the selected primary source and transfers it to the secondary source when the primary source becomes unavailable. The switching design handles phase differences between the two inputs while keeping the transfer within the specified timing.

Which loading details matter most when commissioning Schneider AP4423?

Check the 16 A rated load, the 20 A maximum line current, the 3700 VA capacity and the connected outlet distribution. Aggregate current monitoring and near-overload warnings help operators identify loading that is approaching the unit rating.

How can Schneider AP4423 be monitored without working at the rack?

Its built-in network interface supports remote monitoring and configuration through Web access, SNMP, SSH, Telnet and StruxureWare Data Center Expert. Local display and network event information can be used together when checking a transfer or alarm.

What installation information should be recorded for Schneider AP4423 before ordering?

Record the available 1U rack space, the 44 × 432 × 236 mm chassis size, front or rear mounting position, both C20 source connections, outlet requirements, operating temperature and the current network settings. This prevents a mechanically correct unit from being ordered with the wrong power or connection arrangement.
