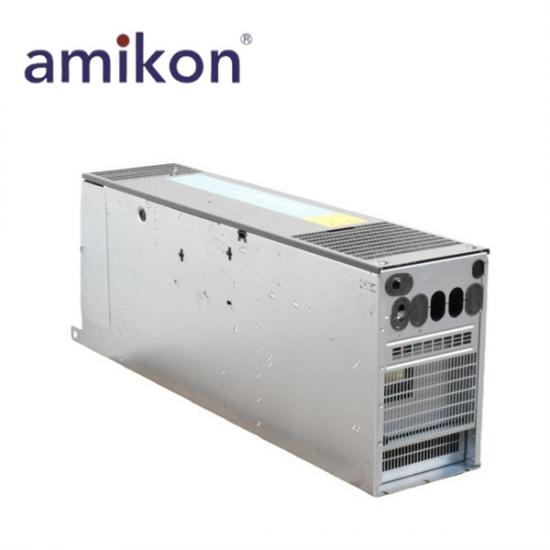

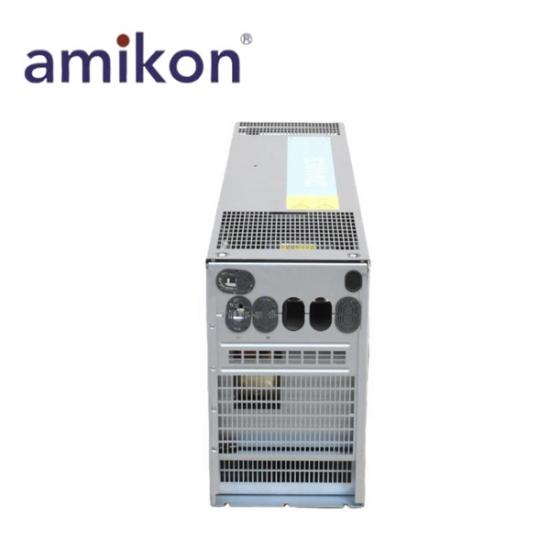

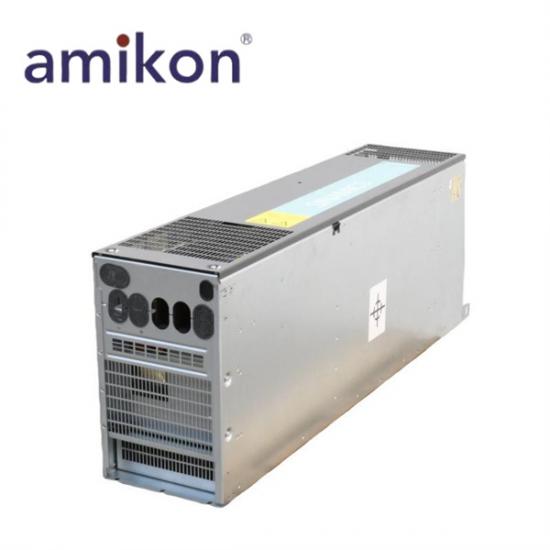

Siemens 6SL3320-1TE33-1AA3 Motor Module

Manufacturer: Siemens
Product Numbers: 6SL3320-1TE33-1AA3
Product Type: Motor Module
Place of 0rigin: Germany
Product Line:SINAMICS S120
Number of Phases:3-phase
Line voltage:380 ... 480 V 3 AC
DC link voltage:510 ... 720 V DC
Type rating at 400V or 690V:160 kW
Rated output current:310 A
Pulse Frequency:2kHz
Temperature Range:0-40℃
Degree of Protection:IP20

The Siemens 6SL3320-1TE33-1AA3 Motor Module is part of the SINAMICS S120 drive system and is designed to deliver high-performance motor control for demanding industrial automation applications. Operating on a 3-phase 380–480 V AC line voltage with a DC link voltage range of 510–720 V DC, the module provides a type rating of 160 kW and a rated output current of 310 A. Using integrated IGBT technology, the module converts DC link power into variable voltage and frequency for precise motor control. With a 2 kHz pulse frequency, IP20 protection, and an operating temperature range of 0–40 °C, the Siemens 6SL3320-1TE33-1AA3 ensures stable and efficient performance in industrial environments.
A key advantage of the Siemens 6SL3320-1TE33-1AA3 is its ability to operate multiple motor modules on a shared DC link, enabling energy exchange between modules. When one module operates in generator mode, the recovered energy can be reused by another module running in motor mode, improving overall system efficiency. The module is controlled by a dedicated control unit and provides comprehensive interfaces including one motor connection, a 24 V DC electronics supply connection, DC link connections (DCP/DCN), braking module connections (DCPA/DCNA), dv/dt filter connections (DCPS/DCNS), three DRIVE-CLiQ sockets, and a temperature sensor input supporting KTY84-130, Pt1000, PTC, or Pt100 sensors. Additional features such as connections for Safe Brake Adapter, Safety Integrated, and two PE grounding points, along with three status LEDs, allow the Siemens 6SL3320-1TE33-1AA3 to deliver reliable monitoring, safety integration, and flexible system configuration.
