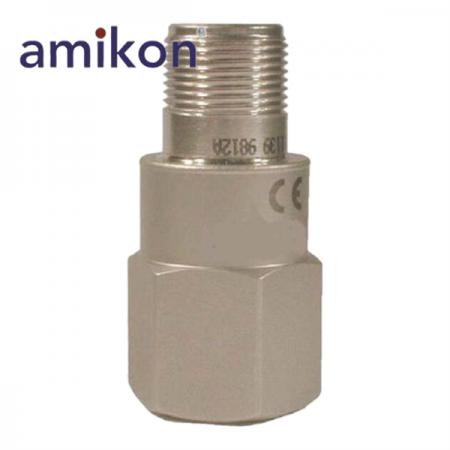

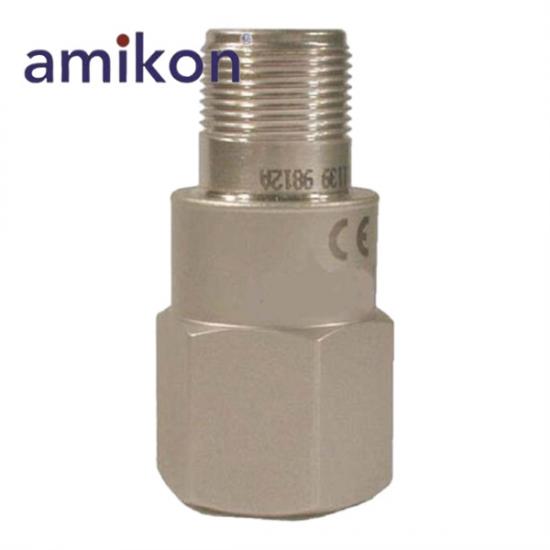

Vibro-Meter CE 680 M411 444-680-000-411 Piezoelectric Accelerometer

—— Contact Us ——

—— Product Information ——

The CE 680 M411 444-680-000-411 is an all-purpose vibration sensor designed for use in harsh industrial machinery environments. It uses the industry standard 2-wire voltage transmission technique with a 4 mA constant current supply. The output signal has a sensitivity of 100 mV/g.
Thanks to the accelerometer's isolated ground and Faraday shield, no ground loops or frame voltage are present to disturb the measurement.
The CE 680 M411 444-680-000-411 shows extremely low noise levels and exceptional bias voltage stability at elevated temperatures.

FEATURES
• Designed for medium temperature industrial applications (-55°C to +120°C)
• Shear mode operation, therefore no output due to thermal transients
• 2-pole low-pass filter for resonance suppression
• Hermetically sealed for harsh environments
• Ground isolated from case and connected to a Faraday shield
• Bias voltage stability at elevated temperatures

—— Technical Specifications ——

Manufacturer: Vibro-Meter
Product Numbers: CE 680 M411 444-680-000-411
Product Type: Piezoelectric Accelerometer
Place of 0rigin: Switzerland
ELECTRICAL
Input supply current : 2 to 10 mA
Supply voltage for current source : 22 to 30 VDC
DC output bias voltage
From -50 to +99°C : 11 to 14 VDC
From +100 to +120°C : ≤±100 mV/°C
Output impedance : 50 Ω
Residual noise (+25°C or +120°C) : 0.0005 g (from 2.5 Hz to 25 kHz)
Isolation between inner case and housing : ≥ 10 MΩ
Over-voltage protection : > 40 VDC
Reversed polarity : Protected
ENVIRONMENTAL
Temperature range : -55°C to +120°C
Humidity : Hermetically sealed
Simusoidal vibration limit : 500 g peak
Shock limit : 5000 g peak
Base strain sensitivity : 0.002 μg peak/με
ESD protection : > 36 V, EMC (10 V/m, 150 kHz to 1000 MHz with 80% AM at 1000 Hz) : 0.003 g peak to peak
MTBF: 197 000 hours (+25°C) ,35 000 hours (+125°C)
