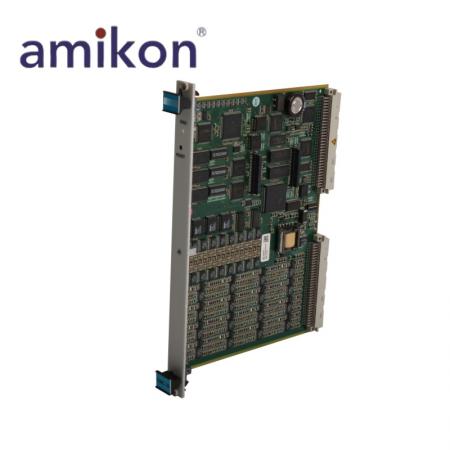

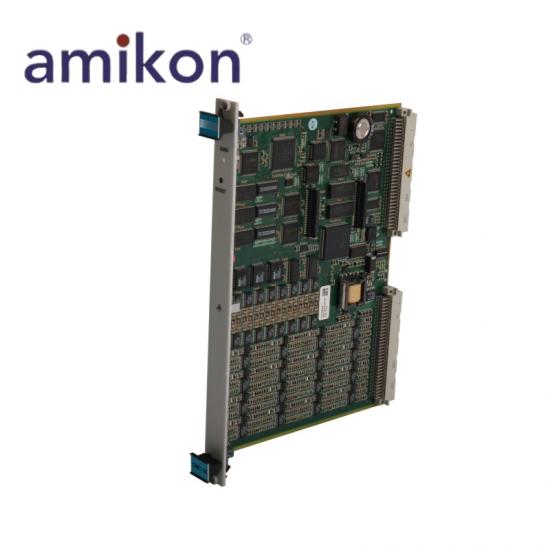

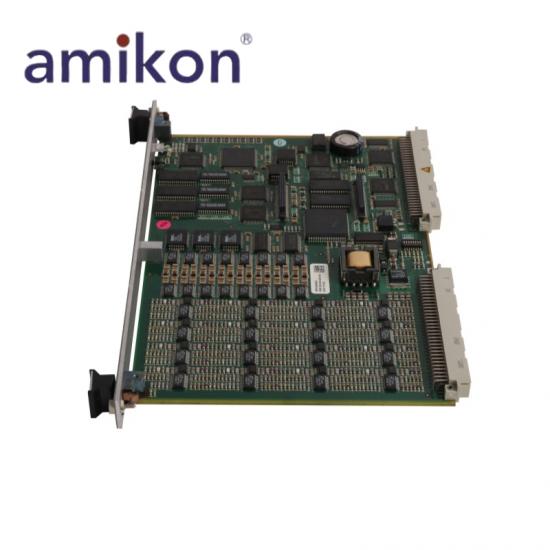

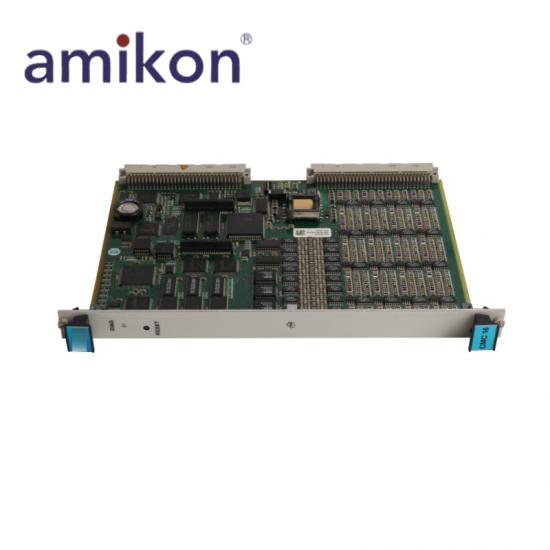

VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card

Get in touch

Product Description

Manufacturer: VIBRO METER

Part Number: VM600 CMC16 200-530-025-014

Product Type: Condition Monitoring Card

Weight: 0.32kg

Estimated shipping dimensions: 2x18.5x26.1cm

Country of origin: USA

Place of shipment: Xiamen,Fujian,China

Speed/Phase Inputs: 1–24 V pulse, 0.25–10,000 Hz

Vibration/Analog Inputs: 14-bit A/D, 100 kHz sampling

AC Input Range: 0.1–20 V FSD, accuracy ±1%

DC Input Range: ±24 V FSD, thermocouple 61.022 mV

Frequency Span: Up to 20 kHz

Crosstalk Isolation: < -75 dB

Fixed Frequency: 0–20 kHz

Supply Voltage: 5 VDC ± 5%

Power Consumption: 15 W

Operating Temperature: –25 °C to +65 °C

Survival Temperature: –40 °C to +85 °C

Humidity: 0–90% operating, up to 95% survival

Main Features

The VIBRO METER VM600 CMC16 (200-530-025-014) is a high-performance condition monitoring card designed for advanced vibration and machinery protection applications. It supports a wide range of speed and phase inputs (1–24 V pulse, 0.25–10,000 Hz) and delivers high-resolution 14-bit A/D conversion with up to 100 kHz sampling for precise signal analysis. The module accommodates both AC and DC input ranges, ensuring flexible compatibility with various sensors, including thermocouples. With excellent signal integrity (< -75 dB crosstalk isolation) and frequency handling up to 20 kHz, it ensures accurate diagnostics. Its rugged design supports reliable operation in harsh industrial environments with wide temperature and humidity tolerance.
