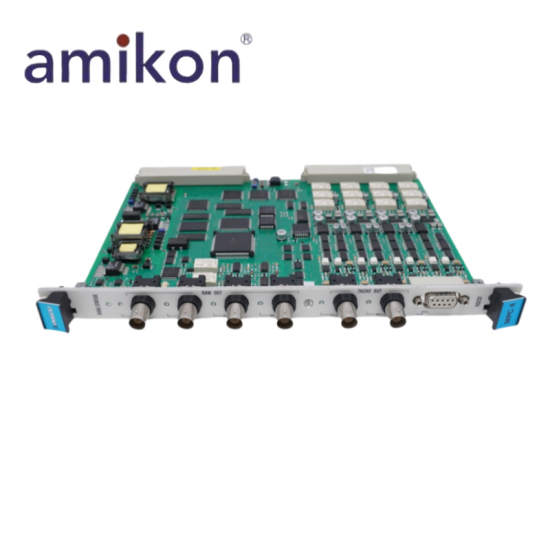

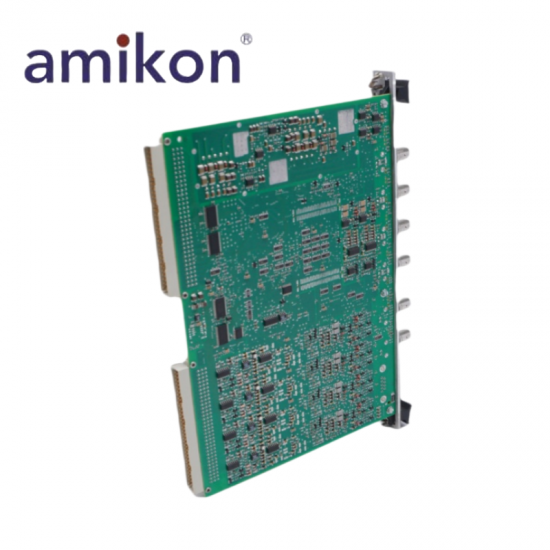

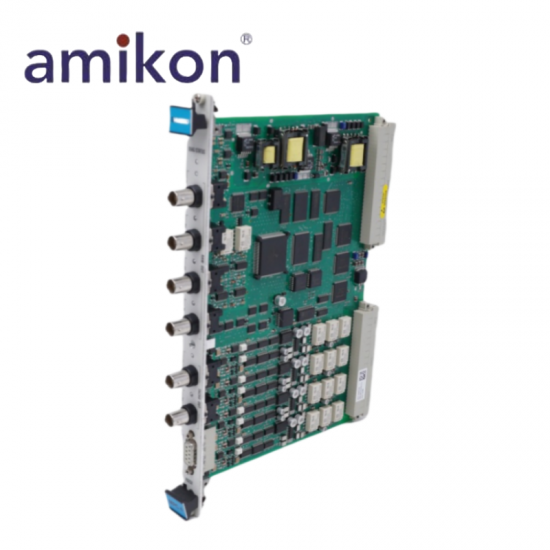

VIBRO METER VM600 MPC4 200-510-070-112 Machinery Protection Card

Get in touch

Product Description

 Manufacturer: Vibro-Meter

 Part Number: VM600 MPC4 200-510-070-112

 Product Family: Vibro-Meter

 Product Type: machinery protection card

 Number of inputs: 4 per MPC4 card

 DC range: 0 to +20 V or 0 to −20 V

 AC range: ±10 V (maximum)

 Common mode voltage range: −50 to +50 V

 CMRR: >60 dB at 50 Hz

 Crosstalk: −72 dB

 Input impedance: 200 kΩ

 Weight: 0.42 kg

 Estimated shipping dimensions: 2.1x19.1x26.2cm

 Country of origin: USA

 Place of shipment: Xiamen,Fujian,China

Main Features

The VIBRO-METER VM600 MPC4 200-510-070-112 is a machinery protection card designed for the VM600 monitoring system, providing real-time monitoring and protection for critical rotating machinery. It supports 4 dynamic signal inputs and 2 speed inputs, while advanced DSP-based processing enables accurate vibration, displacement, and multi-parameter monitoring. The module features programmable filtering, RMS and peak measurement functions, order tracking, built-in self-diagnostics, automatic fault detection, LED status indication, BNC signal analysis connectors, and 0–10 V / 4–20 mA analog outputs. It operates together with the IOC4T I/O card and is widely used in turbines, compressors, generators, and other industrial rotating equipment protection applications.
