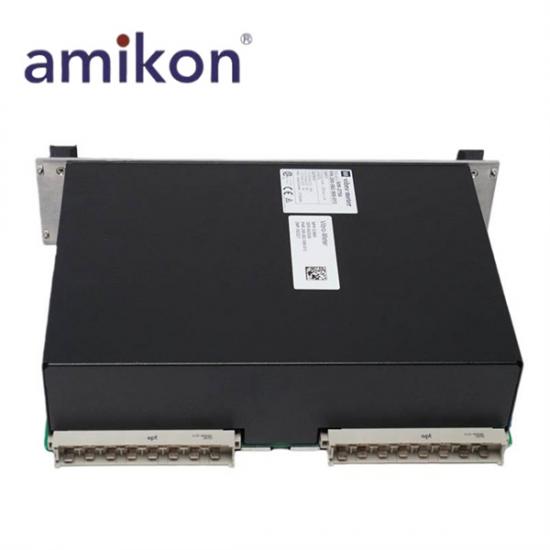

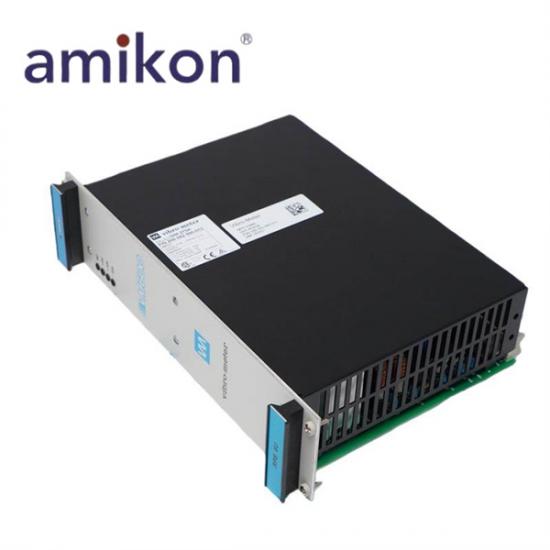

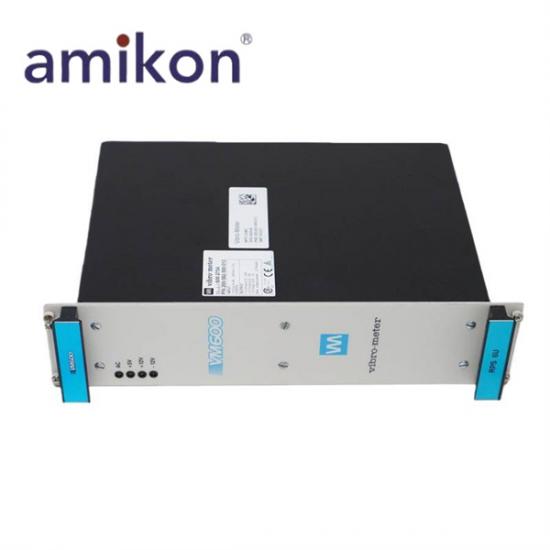

Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013 DC Rack Power

/ Get In Touch With Amikon /

Amikon - Professional Automation Spare Parts Distributor

Account Manager | Leonia

Business Email | sales11@amikon.cn

24/7 WhatsApp | +86 18030175807

/ Product Description /

The VM600Mk2/ VM600 RPS6U rack power supplies are designed for use in the VM600Mk2/ VM600 series of machinery protection systems and condition and performance monitoring systems, from Meggitt’s vibro-meter ® product line.
A VM600Mk2/ VM600 RPS6U rack power supply is installed in the front of a VM600Mk2/ VM600 ABE04x system rack (19 ″ system racks with a standard height of 6U) and connects via two high-current connectors to the VME bus of the rack’s backplane. The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack’s backplane.
Either one or two VM600Mk2/ VM600 RPS6U rack power supplies can be installed in a VM600Mk2/ VM600 ABE04x system rack. A rack with one RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50 °C (122 °F).
Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly over a wider range of environmental conditions.
A VM600Mk2/ VM600 ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards).
This means that if one RPS6U fails, the other will provide 100 % of the rack’s power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery
monitoring system.
Note: This is known as a redundant RPS6U rack power supply configuration.
A VM600Mk2/ VM600 ABE04x system rack with two RPS6U power supplies installed can also operate non-redundantly (that is, without rack power supply redundancy). Typically, this is only necessary for a full rack of modules (cards) in applications with operating temperatures above 50 °C (122 °F), where RPS6U output power derating is required.
Note: Even though two RPS6U rack power supplies are installed in the rack, this is not a redundant RPS6U rack power supply configuration.

KEY FEATURES AND BENEFITS
• From the vibro-meter ® product line
• Power supply for VM600Mk2/ VM600 ABE04x 19 ″ system racks with a height of 6U
• Input: AC-input and DC-input versions
• Outputs: +5 VDC and ±12 VDC
• Output over-voltage, short-circuit and overload protection
• Status indicators
• High-power, high-performance, high efficiency
• Minimal derating within the operating
temperature range

/ Product Specifications /

Manufacturer: Vibro-Meter
Part Number: VM600 RPS6U SIM-275D-24 200-582-200-013 DC
Product Type: Rack Power
Country of origin: USA
Nominal Input Voltage: 24 VDC
Input Voltage Range: 18 to 32 VDC
Input Current (max.): 30 A
Efficiency (typ.): 83%
Inrush Current: <10 × nominal input current
Output Voltages: +5 VDC (up to 50 A), +12 VDC (up to 6 A), –12 VDC (up to –4 A)
Total Output Power: 330 W max.
Factory Adjustment (at 60% load): +5.41V ±0.02V, ±12.5V ±0.05V
Load Range Accuracy: +5.35‑5.45V (3‑50A); +12.2‑12.8V (0‑6A); –12.2 to –12.8V (0‑4A)
Ripple & Noise (20 MHz BW): <50 mV peak‑to‑peak for all outputs
Line Regulation (±10% input change): <±1% for all outputs
Output Power Derating (convection, 50‑70°C): +5V: 2%/°C; ±12V: 3%/°C (60‑70°C)
MTBF (MIL‑HDBK‑217F, 70°C): >40,000 hours
Operating Temperature: 0 to +70°C
Storage Temperature: –40 to +85°C
Humidity: 5‑90% non‑condensing
