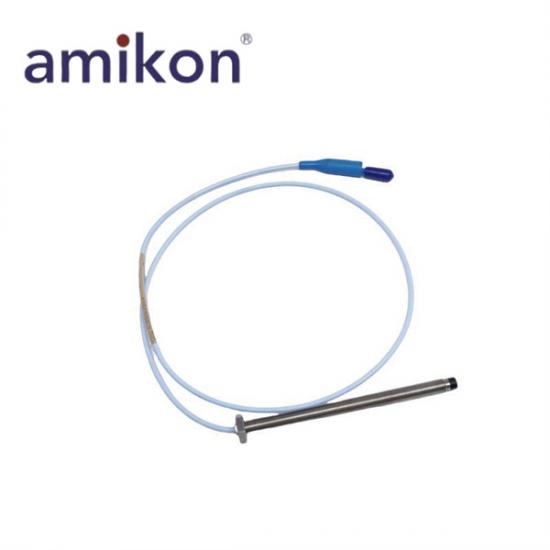

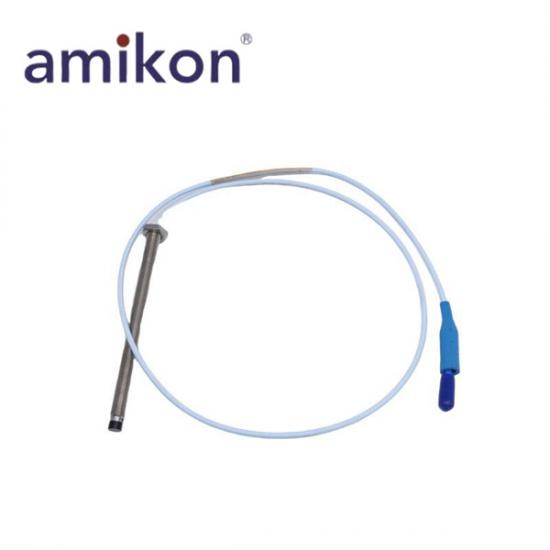

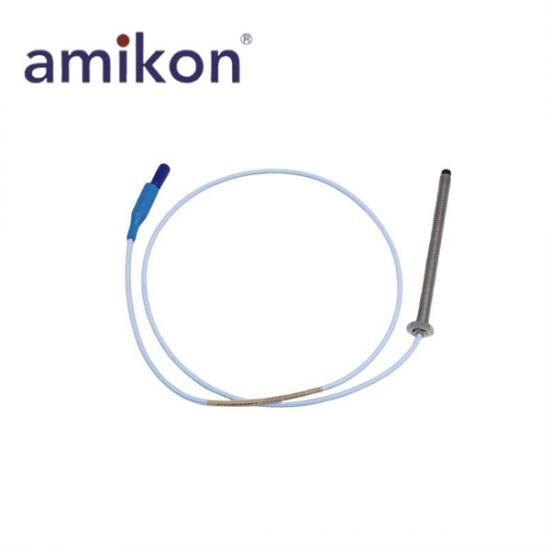

Bently Nevada 330103-00-18-10-02-00
Brand:
Bently NevadaPayment:
T/TProduct Origin:
USALead Time:
IN STOCKManufacturer:
Bently NevadaPart number:
330103-00-18-10-02-00Dimension:
1.8x1.6x113cmWeight:
0.05kgHS CODE:
8537101190Warranty:
12 month|
Product Information |
Manufacturer: Bently Nevada
Product Numbers: 330103-00-18-10-02-00
Product Type: 3300 XL 8 mm Proximity Probe
Place of 0rigin: USA
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Operating and Storage Temperature: -52°C to +177°C (-62°F to + 350°F)
Ordering Information for Probes
Part Number-AA-BB-CC-DD-EE
AA: Unthreaded Length Option: 00=00 mm
BB:Overall Case Length Option: 18=180 mm
CC:Total Length Option: 10=1.0 meter (3.3 feet)
DD:Connector and Cable-Type Option: 02= Miniature coaxial ClickLoc connector, standard cable
EE:Agency Approval Option: 00=Not required
The Bently Nevada 3300 XL 8 mm Proximity Probe (P/N: 330103-00-18-10-02-00) is a high-performance sensing component designed for precision vibration and position monitoring in rotating machinery. It is part of the 3300 XL Proximity Transducer System, which includes a probe, extension cable, and Proximitor Sensor working together to provide stable and accurate non-contact measurement. The probe tip is made of Polyphenylene sulfide (PPS), while the housing uses AISI 303 or 304 stainless steel, ensuring strong mechanical durability and resistance to harsh industrial environments. With an operating and storage temperature range of -52°C to +177°C, it is suitable for demanding applications in turbines, compressors, pumps, and other fluid-film bearing equipment.
This proximity probe outputs a voltage signal directly proportional to the distance between the probe tip and the conductive target surface, enabling both static position and dynamic vibration measurements. It is widely used for machinery protection and condition monitoring, including Keyphasor reference and speed sensing applications. The modular design and standardized ordering options (AA-BB-CC-DD-EE) allow flexible configuration, such as 180 mm case length, 1.0 m total length, and Miniature coaxial ClickLoc connector for secure installation and stable signal transmission.
|
