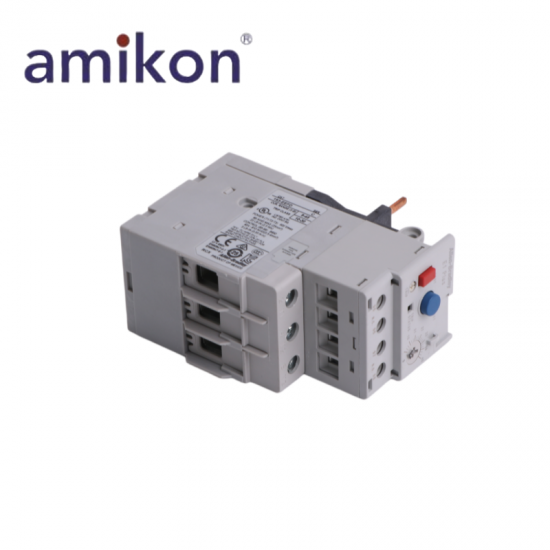

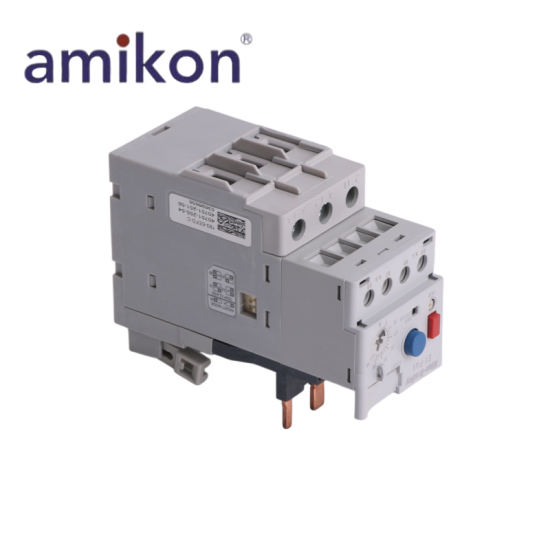

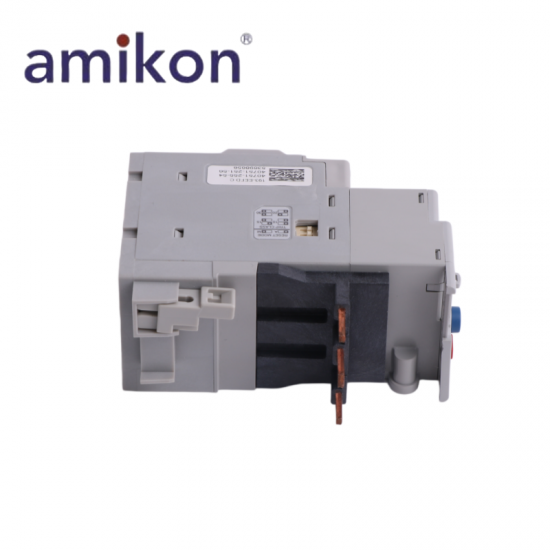

AB 193-EEGE E1 Plus Electronic A IEC Overload Relay

sales6@amikon.cn

193-EEGE

Item NO.:
193-EEGE
Product Origin:
USA
Part number:
193-EEGE
Dimension:
7.2 x 19.3x 121cm
Weight:
0.52 kg
HS CODE:
8537101190
Warranty:
12 months

Allen‑Bradley 193-EEGE E1 Plus Electronic Overload Relay is a self-powered electronic overload relay designed to provide accurate thermal protection for three-phase motors. Using direct current measurement instead of conventional thermal elements, it delivers precise motor overload monitoring and improved protection performance.

The relay features an adjustable current range of 18–90 A with selectable trip classes 10, 15, 20, and 30, allowing flexible configuration for different motor applications. Its self-powered design eliminates the need for an external control supply, simplifying installation and reducing panel heat.

Additional features include automatic or manual reset selection, isolated N.O./N.C. alarm contacts, fast phase loss detection, and thermal memory modeling to monitor motor heating and cooling conditions.

Optional expansion modules support advanced functions such as DeviceNet, EtherNet/IP, and PROFIBUS communication, as well as jam detection, ground fault protection, and PTC thermistor monitoring.

Manufacturer	Allen-Bradley
Part Number	193-EEGE
Product Family	Bulletin 193
Product Type	E1 Plus 18-90 A IEC Overload Relay
Trip Class Selectable	10, 15, 20, 30
Reset Mode Selectable	Automatic / Manual
Rated Operational Voltage	690 V AC
Rated Operational Voltage	600 V AC
Terminal Lugs	Not included (order separately)
Ambient Operating Temperature	–20°C to +60°C
Storage Temperature	–40°C to +85°C
Rated Impulse Withstand Voltage	6 kV
Frequency	50 / 60 Hz
Weight	0.52 kg
Estimated shipping dimensions	7.2 x 19.3x 121cm
Tariff Code	8537101190
Country of origin	USA
Place of shipment	Xiamen, Fujian, China
