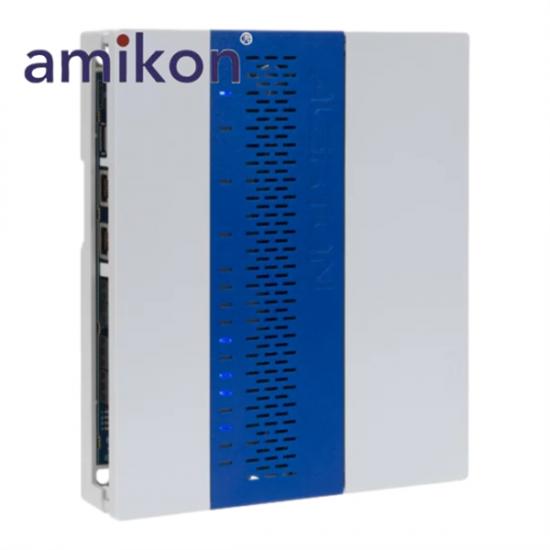

Alerton ACM-000-000-000-000-00-00-00 Ascent Control Module carries the additional identification number 50080121-001 and belongs to the configurable Alerton ACM controller platform.
Our Services: exact model checking, stock and quantity confirmation, current lead-time review, official-document support and global logistics coordination.
Manager: Leonia | Email: sales11@amikon.cn | WhatsApp: +8618030175807
Brand:
Other Hot-sellingsItem NO.:
ACM-000-000-000-000-Payment:
T/TLead Time:
Confirm by RFQManufacturer:
Alerton | HoneywellPart number:
ACM-000-000-000-000-00-00-00 | 50080121-001Dimension:
185 W x 220 H x 44 D mmThe Alerton ACM-000-000-000-000-00-00-00, with identification number 50080121-001, is an ACM configuration reference within the BACtalk Ascent controller platform. The ACM combines Alerton BACnet control capabilities with support for Niagara Framework integration.
The controller provides multiple communication networks, expandable option-card interfaces and automation functions for building control applications.
The Alerton ACM supports up to six global controller instances and up to six MS/TP trunks or EIA-485 LANs. Two integrated Ethernet ports support BACnet network connections, Modbus TCP and supported Niagara integration protocols.
The controller hosts schedules, trendlogs, alarms, zones and demand-limiting functions. Two option-card slots provide additional communication interfaces for system expansion.
| Specification | Official value |
|---|---|
| Manufacturer | Alerton | Honeywell |
| Model | ACM-000-000-000-000-00-00-00 |
| Identification number | 50080121-001 |
| Product type | Ascent Control Module |
| BACnet device profile | BACnet Building Controller (B-BC) |
| Power | 20-30 VAC at 40 VA, 47-63 Hz, full-wave rectified; optional battery backup |
| Processor and memory | ARM Cortex-A9 based Freescale i.MX6Quad quad-core CPU; 1 GB DDR3 SDRAM, 64-bit, 533 MHz (1066 MT/s) |
| Data storage | One removable microSD card |
| Ethernet | Two integrated 8P8C connectors for 10Base-T, 100Base-TX and 1000Base-T networks |
| Onboard networks | Two EIA-485 networks |
| Expansion | Two option-card slots; up to four additional EIA-485 networks |
| Protocols | BACnet/Ethernet, BACnet/IPv4, BACnet/IPv6, BACnet/MS/TP, Modbus RTU, Modbus TCP, Alerton TUX, Alerton AXM/EXP and NTPv4 |
| Mounting | 35 mm DIN rail, vertical or horizontal orientation |
| Dimensions | 185 W x 220 H x 44 D mm |
| Operating environment | -20 to 65 °C; 0 to 95% RH, non-condensing |
| Storage environment | -20 to 85 °C; 0 to 95% RH, non-condensing |
| Certifications and standards | RoHS, CE EN 60730-1, FCC Part 15 Class B, ICES-003, C-Tick, UL 916 and BTL B-BC listing |
The ACM platform uses configurable ordering references. In ACM-000-000-000-000-00-00-00, the 000 and 00 segments denote No Selection in the official configuration structure. The base license, device capacity, drivers and communication option cards are selected for the required system configuration.
It is an Ascent Control Module and BACnet Building Controller for the Alerton BACtalk Ascent platform.
The official datasheet specifies 20-30 VAC at 40 VA, 47-63 Hz, full-wave rectified, with optional battery backup.
Supported protocols include BACnet/Ethernet, BACnet/IPv4, BACnet/IPv6, BACnet/MS/TP, Modbus RTU, Modbus TCP, Alerton TUX, Alerton AXM/EXP and NTPv4.
It mounts on a 35 mm DIN rail in either vertical or horizontal orientation. The official dimensions are 185 W x 220 H x 44 D mm.
The official ordering guide uses 000 and 00 for No Selection. It also states that at least one base license is required for a functional ACM.
