>P+F TPH-LBF-IA1.36.DE.1 FieldConnex Fieldbus Surge Protector


TPH-LBF-IA1.36.DE.1
TPH-LBF-IA1.36.DE.1 TPH-LBF-IA1.36.DE.1

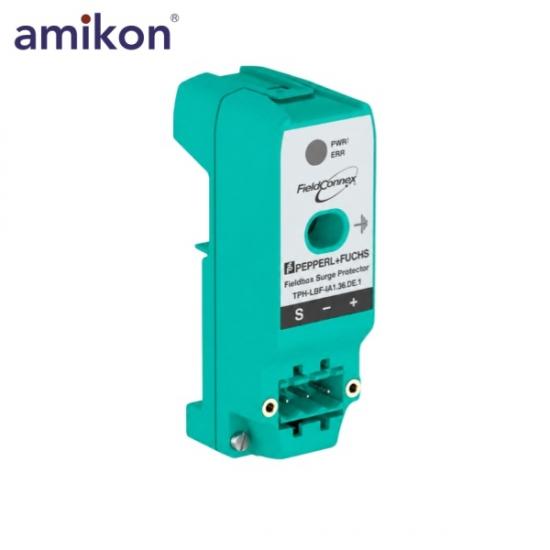

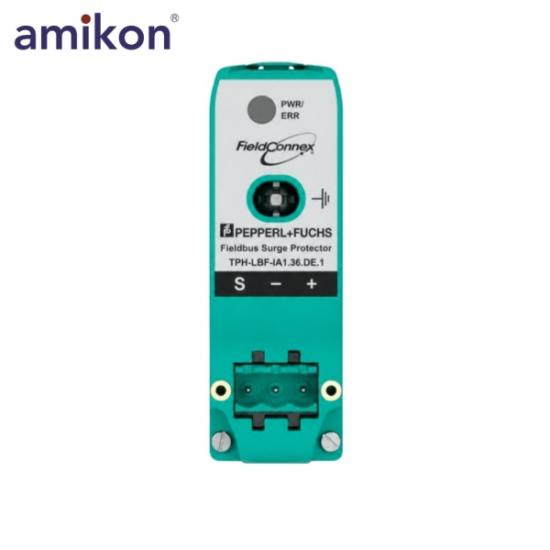

P+F TPH-LBF-IA1.36.DE.1 FieldConnex Fieldbus Surge Protector

P+F TPH-LBF-IA1.36.DE.1 FieldConnex Fieldbus Surge Protector

Email: sales15@amikon.cn

WhatsApp: +86-17359287459

  • Brand:

    Other Hot-sellings

  • Item NO.:

    TPH-LBF-IA1.36.DE.1

  • Product Origin:

    GERMANY

  • Manufacturer:

    Pepperl+Fuchs

  • Part number:

    TPH-LBF-IA1.36.DE.1

  • Dimension:

    2.5 × 7.48 × 5.18 cm

  • Weight:

    0.045 kg

  • HS CODE:

    8537101190

  • Warranty:

    12 months
Inquiry now
Product Detail

Pepperl+Fuchs · FieldConnex Protection

TPH-LBF-IA1.36.DE.1 Fieldbus Surge Protector

The Pepperl+Fuchs TPH-LBF-IA1.36.DE.1 is a diagnostic surge-protection module for FieldConnex networks. Installed between a compatible FieldConnex Power Hub and the trunk cable, it helps protect FOUNDATION Fieldbus H1 or PROFIBUS PA infrastructure from transient overvoltage while providing clear diagnostic status for maintenance teams.

Technical Specifications

Product Data
Supported Networks FOUNDATION Fieldbus H1 · PROFIBUS PA Rated Voltage 36 V
Rated Current 600 mA Self-Consumption 6 mA maximum
Continuous Voltage 33 V maximum Response Time ≤ 1 ns line-to-line · ≤ 100 ns line-to-earth
Ambient Temperature −40 to +70 °C Degree of Protection IP20

Typical Applications

FF H1 Trunk Protection Protects FieldConnex trunk cabling and connected devices from transient overvoltage.
PROFIBUS PA Infrastructure Provides pluggable protection between the FieldConnex Power Hub and the trunk cable.
Diagnostic Maintenance Integrated indication supports faster inspection and maintenance decisions.
