P+F HCD2-FBPS-1.500 FieldConnex Fieldbus Power Supply
Email: sales15@amikon.cn
WhatsApp: +86-17359287459
Brand:
Other Hot-sellingsItem NO.:
HCD2-FBPS-1.500Product Origin:
GERMANYManufacturer:
Pepperl+FuchsPart number:
HCD2-FBPS-1.500Dimension:
10.6 × 1.25 × 12.8 cmWeight:
0.15 kgHS CODE:
8537101190Warranty:
12 monthsPEPPERL+FUCHS · FIELDCONNEX® FIELDBUS

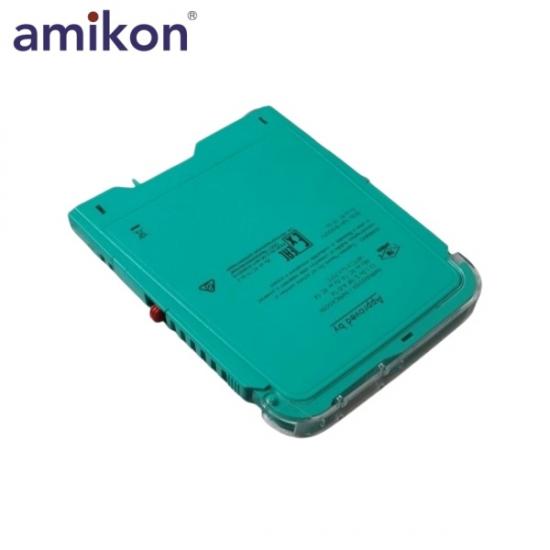

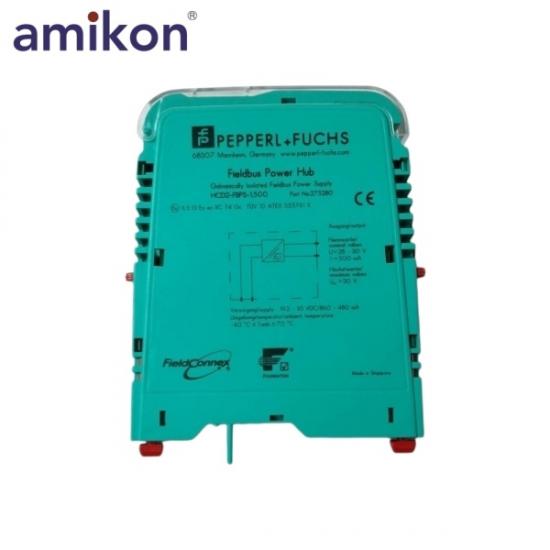

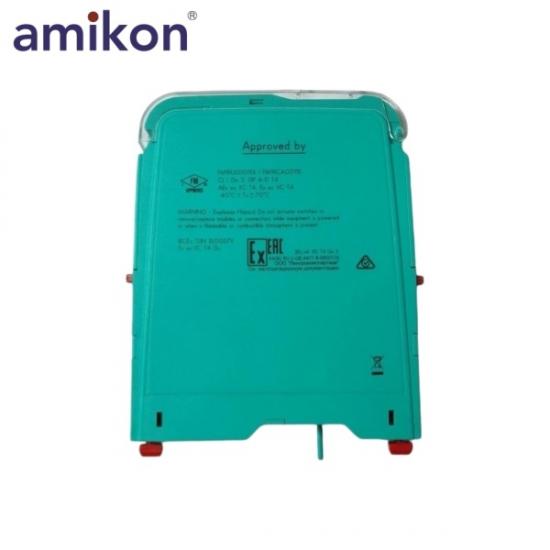

The Pepperl+Fuchs HCD2-FBPS-1.500 is a motherboard-based, galvanically isolated power supply module for a FieldConnex® Fieldbus Power Hub. It delivers 28 to 29.5 V at up to 500 mA for high-power fieldbus trunks, supporting high device counts and long cable lengths. The module is designed for FOUNDATION Fieldbus H1 and PROFIBUS PA networks and is suitable for installation in Zone 2 / Class I, Div. 2.
| Product Data | |||
|---|---|---|---|
| Design / Mounting | Motherboard based | Degree of Protection | IP20 |
| Supply Voltage | 19.2 to 35 V DC | Power Dissipation | Typically 1.6 W |
| Fieldbus Output Voltage | 28 to 29.5 V | Rated Output Current | 500 mA maximum |
| Short-Circuit Current | 550 mA | Galvanic Isolation | 250V AC rated insulation voltage |
| Ambient Temperature | −40 to +70 °C | Storage Temperature | −40 to +85 °C |
