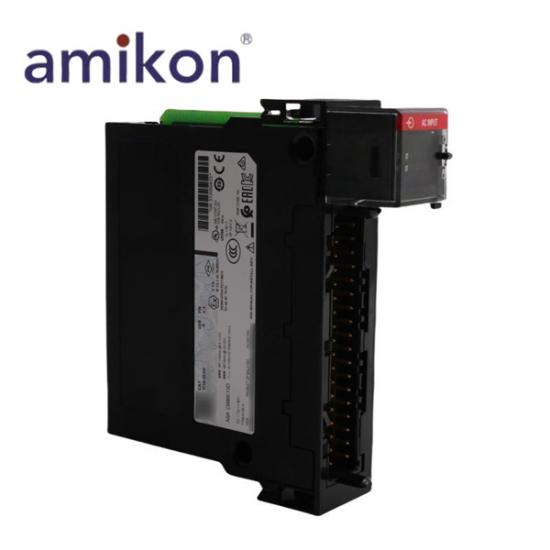

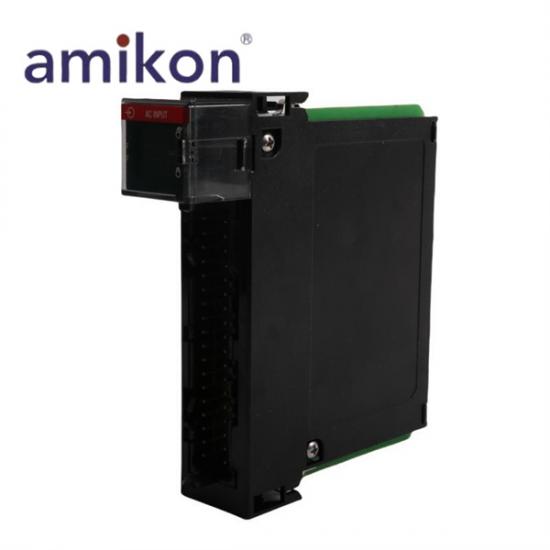

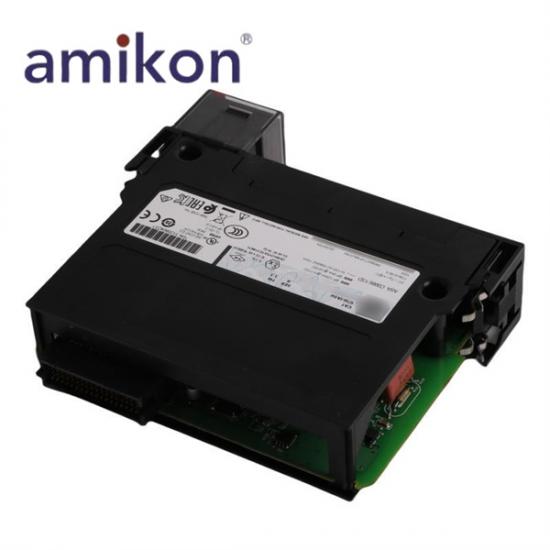

Allen-Bradley 1756-IA16I ControlLogix 120V AC Isolated Input Module

Manufacturer: Allen-Bradley
Product Numbers: 1756-IA16I
Product Type: ControlLogix 120V AC Isolated Input Module
Place of 0rigin: USA
Inputs: 16 individually isolated
Voltage category: 120V AC 50/60 Hz
Operating voltage range(1): 79…132V AC,47…63 Hz
Input voltage, nom: 120V AC 50/60 Hz
Current draw @ 5.1V: 125 mA
Current draw @ 24V: 3 mA
Total backplane power: 0.71 W
Power dissipation, max: 4.9 W @ 60 °C (140 °F)
Thermal dissipation: 16.71 BTU/hr
Off-state voltage, max: 20V
Off-state current, max: 2.5 mA
On-state current, min: 5 mA @ 79V AC, 47…63 Hz
On-state current, max: 15 mA @ 132V AC, 47…63 Hz
Inrush current, max: 250 mA
Input impedance, max: 8.8 kΩ @ 132V AC, 60 Hz
Cyclic update time: 200 μs ... 750 ms
Change of state: Software configurable
Time stamp of inputs: ±200 μs



The 1756-IA16I is a ControlLogix Discrete input module which operate at a voltage category of 79 to 132V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) individually isolated channels. This module is directly installed to a 1756 local or remote chassis.
This module is compatible with any ControlLogix processor. It is also compatible with any ControlLogix communication adapter for implementing Remote I/O application.
This module uses a 36-point Removable Terminal Block (RTB) for wiring signals and allow modular replacement of a defective module without the need of full rewiring. As the channels of this module are individually isolated, each channel has individual common which allows the module to be used in application where direct AC commons are existing.
This module has front panel indicators that provide status of each channel. Whenever a channel is supplied with an appropriate signal, the dedicated LED indicator will be activated to confirm that the signal is received by the module.
