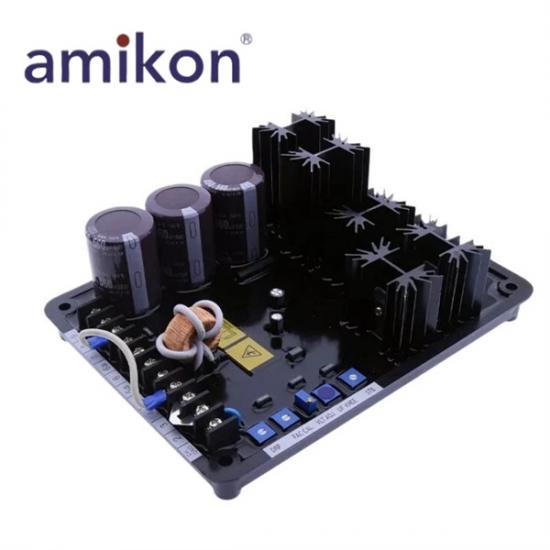

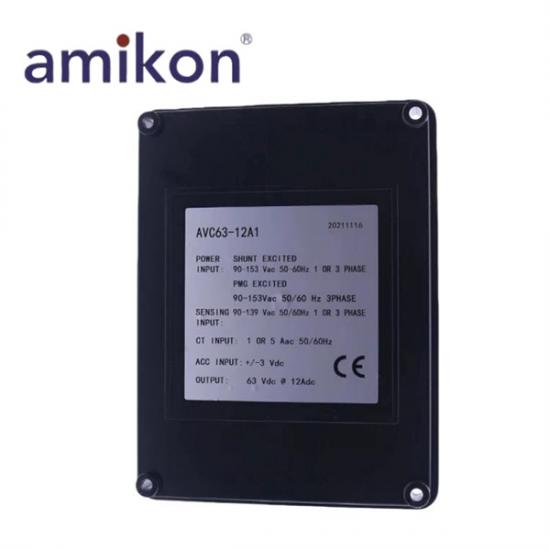

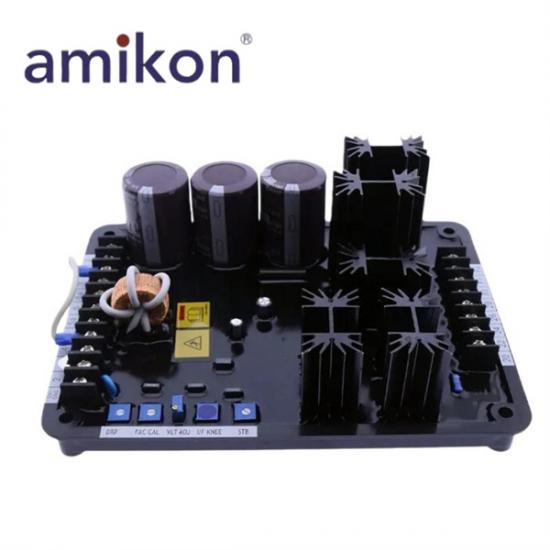

Basler AVC63-12A1 Voltage Regulator

※Contact Us

Account Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

Feel free to contact us for product inquiries, quotation and technical support. We are always ready to provide professional and efficient service for you.

※Product Specifications

Basler AVC63-12A1 Voltage Regulator

Manufacturer: Basler
Product Numbers: AVC63-12A1
Product Type: Voltage Regulator
Place of 0rigin: Germany
Configuration: 1-phase or 3-phase
Frequency: 50 to 400 Hz
Voltage Range: 90 to 153 Vac
Maximum Continuous Burden: 1,092 VA
Configuration: 1-phase or 3-phase
Burden:  <1 VA per phase
Voltage Range Option A: 90 to 139 Vac
Voltage Range Option B: 180 to 264 Vac
Nominal Frequency Option 1: 50 or 60 Hz
Nominal Frequency Option 2: 400 Hz
Voltage Range: ±3 Vdc
Maximum Continuous Output: 12 Adc at 63 Vdc
10 Second Forcing Output: 24 Adc at 125 Vdc
Minimum Field Resistance: 5.25 Ω
Regulation Accuracy: ±0.5% of voltage setpoint, average response
Voltage Drift : ±0.5% variation for a 40°C (104°F) change
Response Time : <4 ms
Operating Temperature : –40 to 70°C (–40 to 158°F)
Storage Temperature :  –40 to 70°C (–40 to 158°F)
Max. Humidity: 95%, non-condensing

※Product Description

The Basler AVC63-12A1 is a high-performance automatic voltage regulator (AVR) designed to control the excitation system of conventional brushless synchronous generators. By continuously monitoring generator output voltage and comparing it to an internal reference signal, the regulator precisely adjusts field excitation current to maintain stable generator voltage under varying load conditions. With a regulation accuracy of ±0.5%, fast response time of less than 4 ms, and support for both single-phase and three-phase sensing, the AVC63-12A1 provides reliable voltage control for a wide range of power generation applications.
Designed for demanding industrial and standby power environments, the AVC63-12A1 supports shunt or permanent magnet generator (PMG) power input and incorporates advanced features including frequency compensation, inverse-time overexcitation protection, parallel droop compensation, and accessory inputs for power factor controllers or excitation limiters. The regulator delivers up to 12 Adc continuous output at 63 Vdc and can provide 24 Adc forcing current for up to 10 seconds during transient conditions. Its rugged encapsulated construction, wide operating temperature range of -40°C to +70°C, and high humidity tolerance ensure dependable performance in harsh generator installations worldwide.
