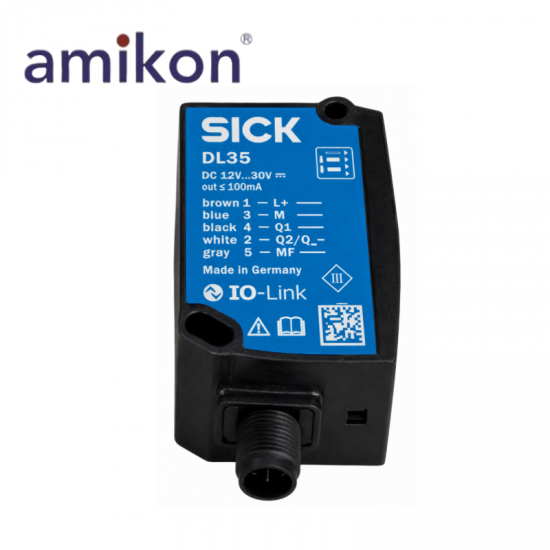

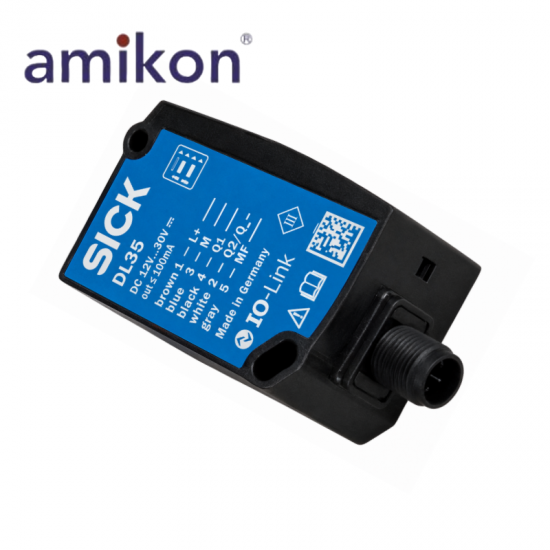

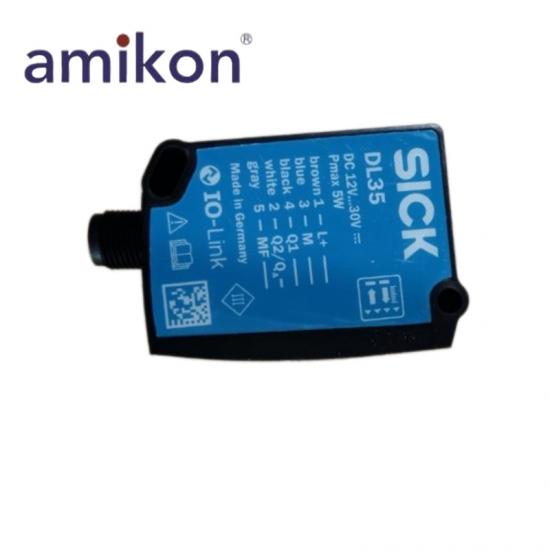

SICK DL35-B15552 TIME-OF-FLIGHT SENSORS

Contact Info

 Sales manager：Jim Pei

 Email：sales6@amikon.cn

 Wechat: ZXH18020776782

 Phone/WhatsApp：+86 18020776782

Product Description

Product Model: DL35-B15552

Product Parameters: TIME-OF-FLIGHT SENSORS

Country of origin: USA

Place of shipment: Xiamen, China

Estimated Shipping Size: 21x15.3x15cm

Manufacturer: SICK

Weight: 3.3 kg

Measuring range: 200 mm ... 35,000 mm, on “diamond grade” reflective tape

Target Reflector: Resolution 100 µm

Repeatability: ≥ 0.5 mm

Measurement accuracy Typ: ± 15 mm

Response time: 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms

Switching frequency: 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz

Output time: 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms

Type of light: Visible red light

Average laser service life (at 25 °C): 100,000 h

Data transmission rate: 38.4 kbit/s

Maximum output current IA: ≤ 100 mA

Current: 4 mA ... 20 mA, ≤ 450 Ω

Voltage: 0 V ... 10 V, ≥ 50,000 Ω

Resolution: 12 bit

Features

Time-of-Flight (ToF) measurement technology: Enables non-contact, high-precision distance measurement using laser pulse timing.

Wide measuring range: 200 mm to 35,000 mm, suitable for short, medium, and long-range detection applications.

High measurement accuracy: Typical accuracy of ±15 mm with repeatability ≥ 0.5 mm for stable industrial performance.

High resolution output: 12-bit resolution for fine signal granularity and precise control feedback.

Flexible response time settings: Adjustable from 2.5 ms to 96.5 ms to balance speed and measurement stability.

High switching frequency: Up to 333 Hz, supporting fast industrial automation processes.

Multiple output options: Analog output: 4–20 mA (≤450 Ω load): Voltage output: 0–10 V (≥50 kΩ load): Digital switching output (max 100 mA)

Industrial communication capability: Data transmission rate of 38.4 kbit/s for system integration.

Visible red laser light: Easy alignment and installation during setup and commissioning.

Long service life: Laser lifetime up to 100,000 hours (at 25°C).

Configurable performance modes: Multiple selectable timing and frequency settings for different application requirements.

High reflectivity target compatibility: Optimized for use with “diamond grade” reflective tape for improved long-range detection reliability.

Rugged industrial design: Suitable for demanding automation environments such as logistics, positioning, and distance monitoring.
