>Bently Nevada 102044-00-18-10-02-00 3300 XL 8 mm Proximity Probe


3300 XL 8 mm Proximity Probe
3300 XL 8 mm Proximity Probe 3300 XL 8 mm Proximity Probe 3300 XL 8 mm Proximity Probe

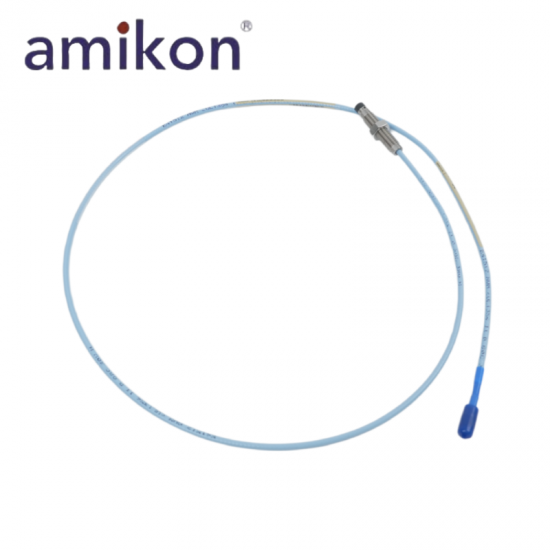

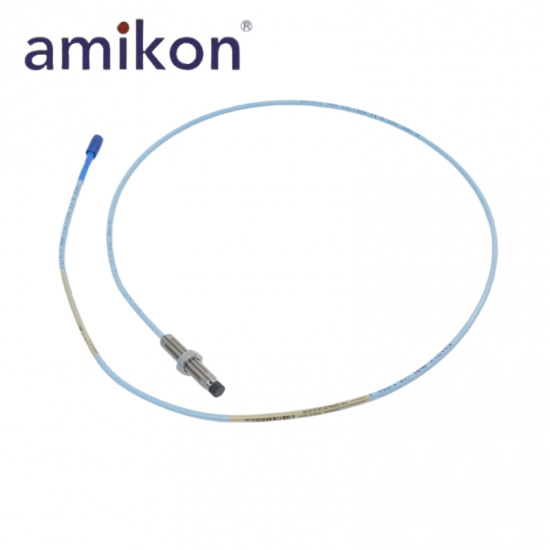

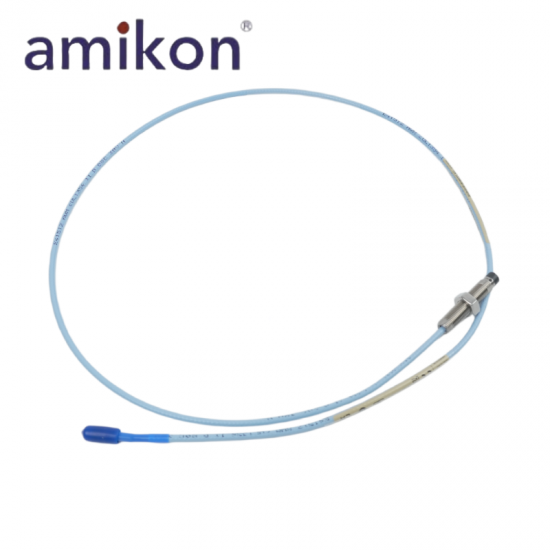

Bently Nevada 102044-00-18-10-02-00 3300 XL 8 mm Proximity Probe

102044-00-18-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe for non-contact shaft vibration and position measurement.

  • Brand:

    Bently Nevada

  • Item NO.:

    102044-00-18-10-02-0

  • Product Origin:

    USA

  • Manufacturer:

    Bently Nevada

  • Part number:

    102044-00-18-10-02-00

  • Dimension:

    1.5x1.3x111cm

  • Weight:

    0.05kg
Inquiry now
Product Detail
Bently Nevada Machinery Monitoring
102044-00-18-10-02-00
3300 XL 8 mm Proximity Probe
Machinery Condition Monitoring

Contact info

Sales Manager
Jim Pei 		Email
sales6@amikon.cn 		Wechat
ZXH18020776782 		Phone / WhatsApp
+86 18020776782

Specifications

Technical Parameter Official Value
Model Number 102044-00-18-10-02-00
Manufacturer Bently Nevada
Product Series 3300 XL 8 mm
Product Type Proximity Probe
Probe Tip Diameter 8.0 mm (0.31 in)
Measurement Principle Eddy-current proximity
Measured Values Static position and dynamic vibration
Primary Applications Fluid-film bearing machinery
Speed Reference Keyphasor and speed measurement
System Components Probe, extension cable, Proximitor sensor
Standard System Length 5 m
Available System Lengths 1 m, 5 m, 9 m
API Compliance API 670 (standard 5 m system)
Component Interchangeability Probe, cable and Proximitor interchangeable
Backward Compatibility 3300 series 5 mm / 8 mm components
Target Material Calibration AISI 4140 steel standard
Connector Type Corrosion-resistant ClickLoc coaxial
Probe Cable Impedance 75 ohm
Standard Cable Jacket FEP
Extended Temperature Cable PFA option
Probe Construction TipLoc molded tip
Cable Retention CableLoc design
Cable Pull Strength 330 N (75 lbf)
Mounting Options Threaded, reverse mount, smooth case
Thread Options 3/8-24 UNF or M10 x 1
Proximitor Mounting Panel or 35 mm DIN rail
Terminal Type SpringLoc terminals
RFI / EMI Performance Enhanced immunity
Output Relationship Voltage proportional to probe-to-target distance
Official Datasheet 3300 XL 8 mm Proximity Transducer System

Description

102044-00-18-10-02-00 is a Bently Nevada MIV II digital voltage and frequency protection relay for industrial and utility power systems. It supports voltage measurement from 10–250 V and the HI auxiliary supply range for 110–250 VDC or 110–220 VAC service. The relay combines programmable protection, monitoring, indication, and control functions in a compact M Family platform. Its front-panel interface supports straightforward settings review and event analysis. This legacy GE protection relay is suitable for replacement, retrofit, maintenance, and spare-parts requirements. It provides a dependable solution for extending the service life of installed electrical protection systems.

Product Applications & Features

Product Applications102044-00-18-10-02-00 is used in industrial distribution systems, utility substations, generator and feeder protection schemes, retrofit projects, and maintenance replacement programs.
FeaturesDigital voltage and frequency protection, programmable relay logic, event recording, front-panel indication, configurable outputs, and integration into established protection and control practices.
