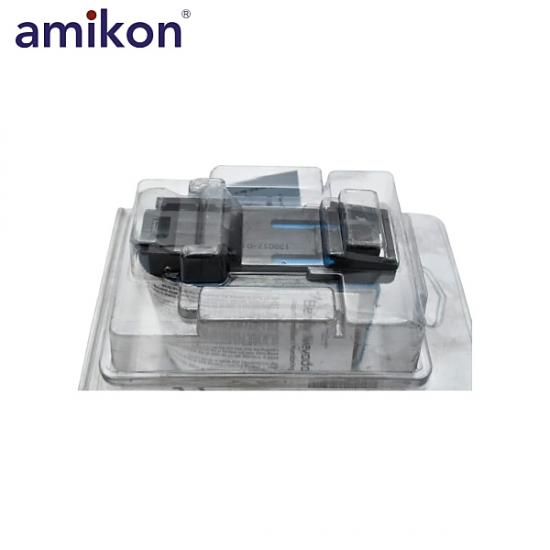

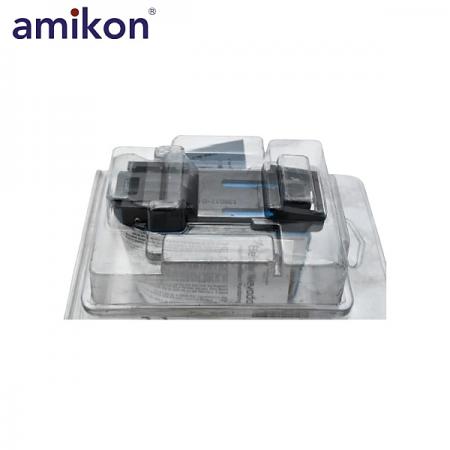

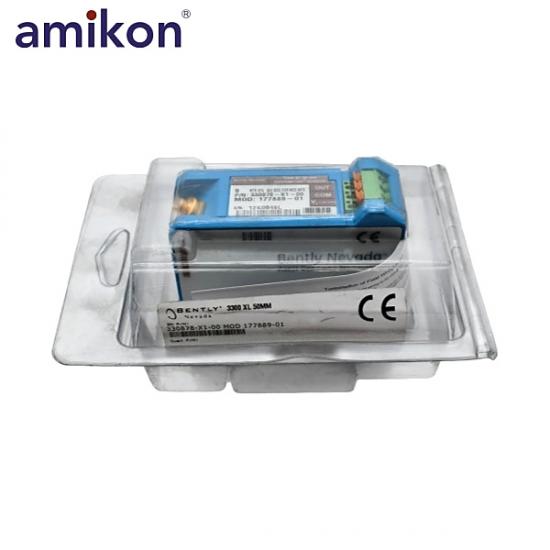

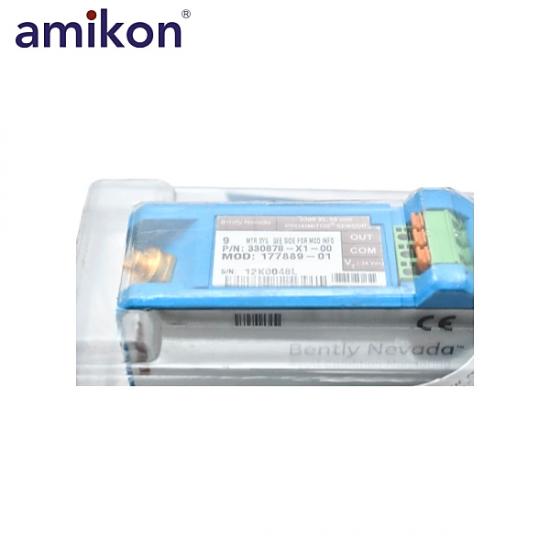

BENTLY NEVADA 330878-X1-00 MOD:177889-01 3300 XL 50 mm Proximitor Sensor
Email: sales15@amikon.cn
WhatsApp: +86-17359287459
Brand:
Bently NevadaProduct Origin:
USAManufacturer:
Bently NevadaPart number:
330878-X1-00 MOD:177889-01Dimension:
8.13 × 6.10 × 5.08 cmHS CODE:
8537101190Warranty:
12 monthsBENTLY NEVADA · 3300 XL 50 MM SYSTEM
The Bently Nevada 330878-X1-00 MOD:177889-01 is a 3300 XL 50 mm Proximitor Sensor for use with one compatible non-contacting 3300 XL 50 mm proximity probe and extension cable. Its thin enclosure supports high-density DIN-rail installations as well as traditional panel mounting, while SpringLoc terminal strips simplify field wiring.
The sensor provides a nominal 27.9 mm (1100 mil) linear range for differential-expansion and large-displacement measurements. Improved RFI/EMI immunity supports industrial installations, and the complete transducer system is available in selectable 5 m or 9 m system lengths.
| Product Data | |||
|---|---|---|---|
| Sensor Input | One 3300 XL 50 mm probe and extension cable | Supply Voltage | -17.5 to -26 Vdc without barriers |
| Maximum Current | 12 mA | Output Resistance | 50 Ω |
| Linear Range | 27.9 mm (1100 mil) | Linear Output | Approximately -1.5 to -12.5 Vdc |
| Average Scale Factor | 394 mV/mm (10 mV/mil) | Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG) |
| Operating Temperature | -51 to +100 °C | Storage Temperature | -51 to +105 °C |
