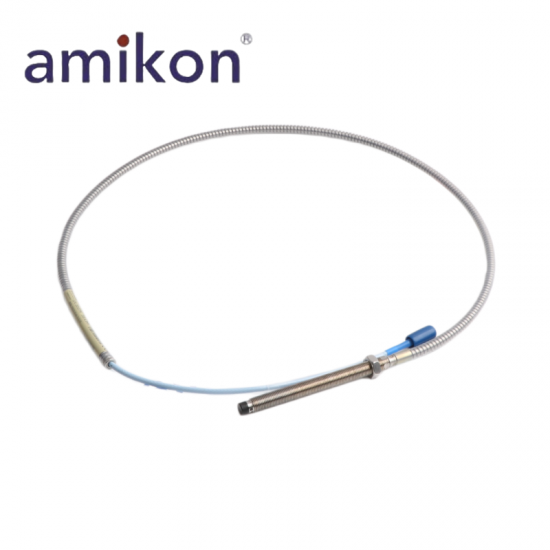

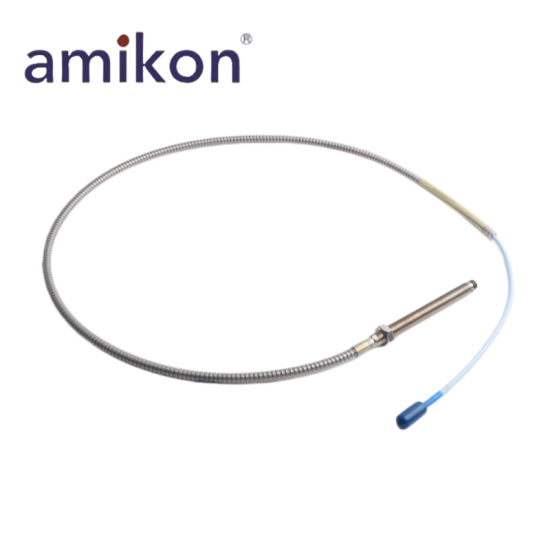

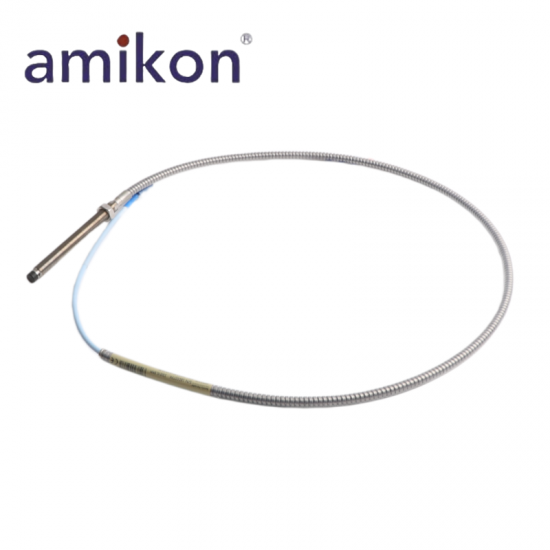

Bently Nevada 330102-00-40-90-11-05 3300 XL 8mm Proximity Probes

Contact Info

ü Sales manager：Jim Pei

ü Email：sales6@amikon.cn

ü Wechat: ZXH18020776782

ü Phone/WhatsApp：+86 18020776782

Product Description

Product Model: 330102-00-40-90-11-05

Product Parameters: 3300 XL 8mm Proximity Probes

Country of origin: USA

Place of shipment: Xiamen, China

Manufacturer: Bently Nevada

Total Length: 9.0 meters (29.5 feet)

Connector and Cable-Type: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

Agency Approval: CSA, ATEX, IECEx  Approvals

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Output Resistance: 50 Ω

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Frequency Response: (0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring.

Probe Tip Material: Polyphenylene sulfide (PPS).

Probe Case Material: AISI 303 or 304 stainless steel (SST).

Armor: Flexible AISI 302 or 304 SST with FEP outer jacket.

Standard cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated

Extended Temperature Range cable: 75Ω triaxial, perfluoroalkoxy(PFA) insulated

Advantage

High-Precision Vibration and Position Monitoring
Compared with conventional proximity probes, the 330102-00-40-90-11-05 provides highly accurate and repeatable shaft vibration, position, and displacement measurements, helping improve machinery protection and condition monitoring performance.

FluidLoc Cable Technology for Enhanced Reliability
The integrated FluidLoc cable offers superior resistance to oil, moisture, and chemical ingress, reducing the risk of signal degradation and extending service life in harsh industrial environments.

Wide Frequency Response for Comprehensive Diagnostics
With a frequency response of 0–10 kHz, the probe can accurately capture both low-frequency shaft movement and high-frequency vibration signatures, enabling more effective fault detection than many standard probes.

Rugged Stainless-Steel Construction
Featuring a stainless-steel probe case and armored cable assembly, the probe delivers excellent resistance to corrosion, vibration, impact, and mechanical wear, ensuring reliable operation in demanding applications.

Certified for Hazardous Industrial Environments
CSA, ATEX, and IECEx approvals allow deployment in hazardous locations worldwide, making the probe suitable for critical industries such as oil and gas, power generation, petrochemicals, and mining.

Seamless Integration with 3300 XL Monitoring Systems
Fully compatible with Bently Nevada 3300 XL extension cables and Proximitor sensors, the probe simplifies installation, maintenance, and spare-part management while ensuring optimal system accuracy and reliability.
