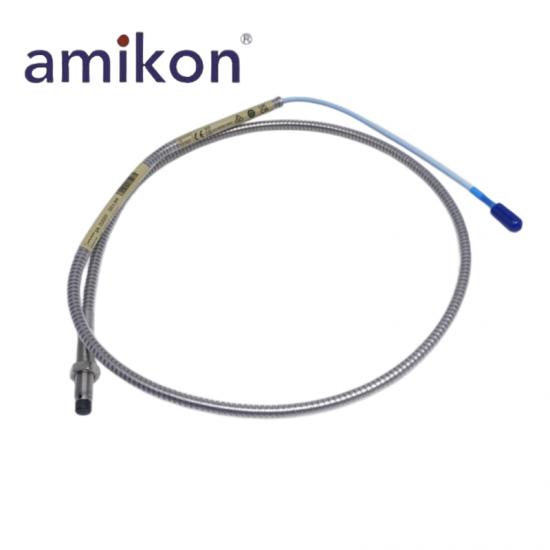

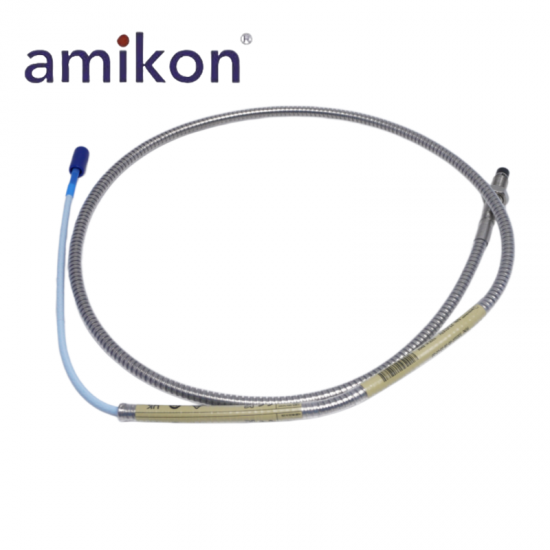

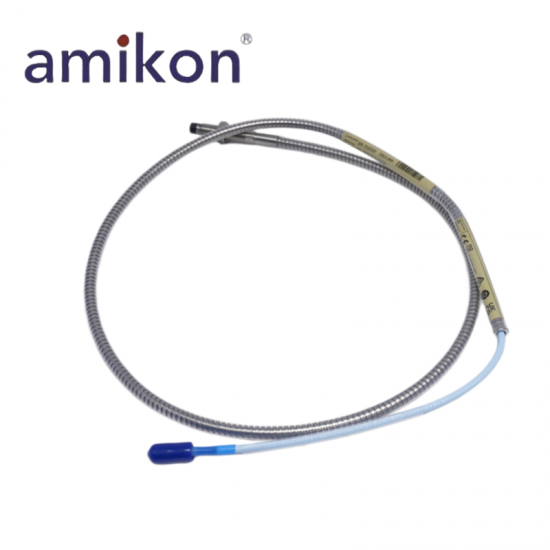

Bently Nevada 330102-00-16-90-11-05 3300 XL 8 mm Probe

Contact Info

ü Sales manager：Jim Pei

ü Email：sales6@amikon.cn

ü Wechat: ZXH18020776782

ü Phone/WhatsApp：+86 18020776782

Product Description

Product Model: 330102-00-16-90-11-05

Product Parameters: 3300 XL 8 mm Probe

Country of origin: USA

Place of shipment: Xiamen, China

Manufacturer: Bently Nevada

Total Length: 9.0 meters (29.5 feet)

Connector and Cable-Type: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

Agency Approval: CSA, ATEX, IECEx  Approvals

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Output Resistance: 50 Ω

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Frequency Response: (0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring.

Probe Tip Material: Polyphenylene sulfide (PPS).

Probe Case Material: AISI 303 or 304 stainless steel (SST).

Armor: Flexible AISI 302 or 304 SST with FEP outer jacket.

Standard cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated

Extended Temperature Range cable: 75Ω triaxial, perfluoroalkoxy(PFA) insulated

Advantage

High Measurement Accuracy and Stability
Compared with many standard proximity probes, the 330102-00-16-90-11-05 delivers highly accurate and stable shaft vibration and displacement measurements, ensuring reliable machinery condition monitoring.

FluidLoc Cable for Enhanced Environmental Protection
The FluidLoc cable design provides superior resistance to moisture and fluid contamination, improving long-term reliability in harsh industrial environments compared with conventional probe cables.

Rugged Stainless-Steel Construction
Constructed with stainless-steel housing and armored cable protection, the probe offers excellent resistance to corrosion, vibration, and mechanical damage, extending operational life in demanding applications.

Wide Frequency Response (0–10 kHz)
Its broad frequency range enables accurate detection of both low-frequency shaft movement and high-frequency vibration events, providing more comprehensive machinery diagnostics than many comparable probes.

International Hazardous-Area Certifications
CSA, ATEX, and IECEx approvals allow installation in hazardous and safety-critical environments worldwide, offering greater application flexibility than non-certified alternatives.

Seamless 3300 XL System Compatibility
Fully compatible with Bently Nevada 3300 XL extension cables and Proximitor sensors, the probe simplifies installation, maintenance, and spare parts management while ensuring optimal system performance.
