Product Description

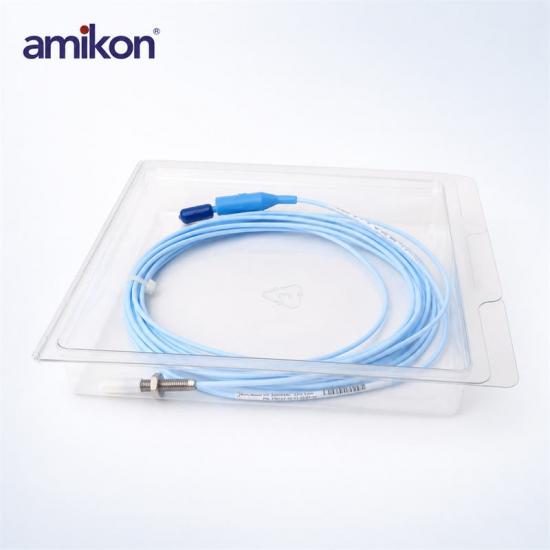

Bently Nevada 330171-00-12-50-01-05 is a 3300 5 mm proximity probe configured with a 1/4-28 UNF thread, no armor, a 1.2-inch case, a 5.0-metre total length, a protected standard ClickLoc connector, and the multiple-approvals option. Its smaller probe package is intended for mounting locations where an 8 mm probe cannot physically fit.

In a complete 3300 5 mm Proximity Transducer System, the probe works with the matched Bently Nevada signal-conditioning hardware to produce an output proportional to the distance between the probe tip and a conductive surface. The system supports static position and dynamic vibration measurements on fluid-film bearing machinery, as well as Keyphasor and speed measurements.

Selection should be based on mechanical access rather than an assumed reduction in sideview clearance. Baker Hughes specifies that the 5 mm probe provides the same linear range as the 3300 XL 8 mm probe, but it does not reduce sideview or tip-to-tip spacing requirements. Where narrow sideview clearance is the governing constraint, the 3300 XL NSv family should be evaluated instead.

Technical Specifications

FAQ

Can 330171-00-12-50-01-05 be selected simply because it needs less sideview clearance than an 8 mm probe?

No. The 5 mm probe is useful where its smaller body fits a restricted mounting location, but its sideview and tip-to-tip spacing requirements are not smaller than those of the 3300 XL 8 mm probe. If sideview clearance is the limiting condition, evaluate the 3300 XL NSv family.

How should the five-metre probe be matched to the signal-conditioning hardware?

Baker Hughes identifies five-metre probes for use with a five-metre Proximitor Sensor system. Do not add cable length by assumption: confirm that the combined probe and extension-cable length matches the system length specified for the selected Proximitor Sensor.

Does installation of the ClickLoc connector require special tools?

No special connector-installation tools are required. The gold-plated ClickLoc connector is designed to be finger tightened until the locking action is felt; keep the supplied connector protector in place where environmental or mechanical protection is needed.

Is this exact configuration a FluidLoc cable version?

No. Ordering option 01 identifies the standard cable with a miniature coaxial ClickLoc connector and connector protector. If internal oil migration through the cable is a project concern, stop the selection process and verify a FluidLoc ordering option before purchase.

What should be checked during initial gap and measurement verification?

Begin with the recommended 1.27 mm gap and verify the complete probe-to-Proximitor chain against the monitoring system. The published calibration is based on an AISI 4140 steel target; other target materials can change the electrical response and may require a material-specific calibration.

Does the -05 approval suffix automatically cover every hazardous-area project?

No. The suffix denotes the multiple-approvals option, but the project must still be checked against the applicable approval drawing, certificate, temperature limits, wiring method, and local jurisdiction before installation or acceptance.
