>Bently Nevada 146054-34-20-02-05 3300 Ceramic Capped Proximity Probe


3300 Ceramic Capped Proximity Probe
3300 Ceramic Capped Proximity Probe 3300 Ceramic Capped Proximity Probe 3300 Ceramic Capped Proximity Probe

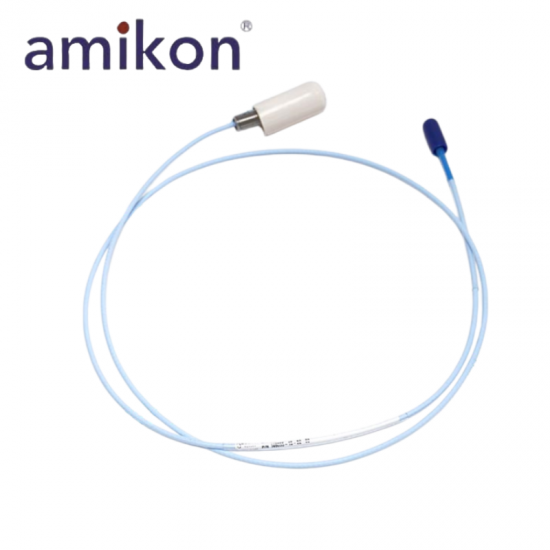

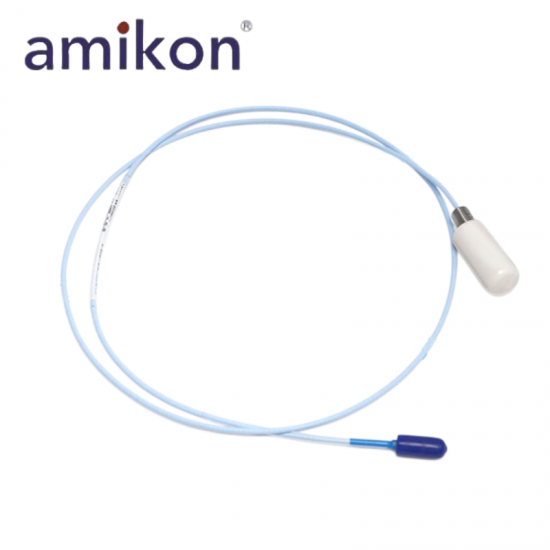

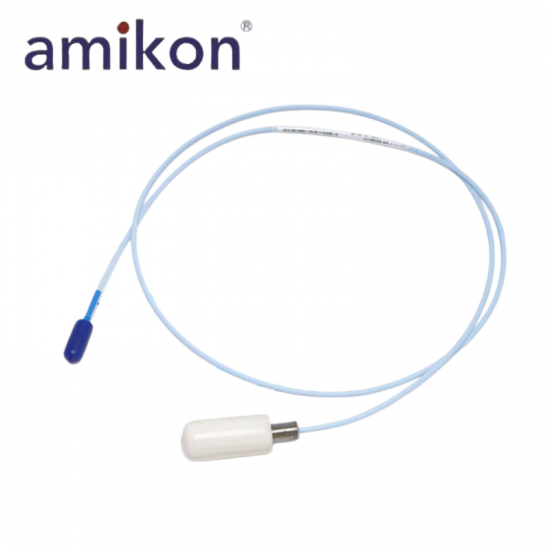

Bently Nevada 146054-34-20-02-05 3300 Ceramic Capped Proximity Probe

146054-34-20-02-05 is a Bently Nevada 3300 ceramic-capped proximity probe with a 3.4-inch case, 2.0-metre total length, standard miniature coaxial ClickLoc connector, and CSA, ATEX, and IECEx approvals. It is designed for noncontact machinery vibration and position monitoring in aggressive chemical and high-pressure environments.

  • Brand:

    Bently Nevada

  • Item NO.:

    146054-34-20-02-05

  • Product Origin:

    USA

  • Lead Time:

    3-7 Days

  • Manufacturer:

    Bently Nevada

  • Part number:

    146054-34-20-02-05
Inquiry now
Product Detail
Bently Nevada Condition Monitoring
146054-34-20-02-05 3300
Ceramic Capped Proximity Probe
3300 Series Probe

Contact info

Sales Manager
Jim Pei 		Email
sales6@amikon.cn 		Wechat
ZXH18020776782 		Phone / WhatsApp
+86 18020776782

Specifications

Technical Parameter Official Value
Model Number 146054-34-20-02-05
Product family 3300 Ceramic Capped Probe
Probe type Forward-mount proximity probe
Mounting thread 3/8-24 UNF
Armor Without armor
Overall case length 3.4 in
Total length 2.0 m (6.6 ft)
Connector Miniature coaxial ClickLoc
Cable type Standard cable
Agency approvals CSA, ATEX, IECEx
Nominal DC resistance 7.88 ± 0.50 Ω
Linear range 1.52 mm (60 mils)
Recommended gap 1.0 mm (40 mils)
Incremental scale factor 7.87 V/mm (200 mV/mil) ±6.5%
Minimum cable bend radius 25.4 mm (1.0 in)
Operating and storage temperature -51 to +177 °C (-60 to +351 °F)
Pressure seal rating 34 bar (500 psi) nitrogen
Probe cap Alumina ceramic
Probe case 304 stainless steel
Compatible sensor 3300 Proximitor Sensor

Description

146054-34-20-02-05 is a Bently Nevada 3300 ceramic-capped proximity probe for machinery monitoring in aggressive chemical and high-pressure environments. This configuration has a 3.4-inch case, 2.0-metre total length, standard miniature coaxial ClickLoc connector, and CSA, ATEX, and IECEx approvals. Its alumina ceramic cap and 304 stainless steel case provide robust protection, while compatibility with the 3300 Proximitor Sensor supports displacement and vibration measurements. Correct electrical gapping and matching with the specified Bently Nevada extension cable and Proximitor Sensor are required for reliable system performance.

Product Applications & Features

Product Applications146054-34-20-02-05 is used for noncontact shaft vibration and position monitoring on rotating machinery, including installations exposed to aggressive chemicals, extreme pH conditions, or pressure-sealed process environments.
FeaturesCeramic-capped sensing tip, 3/8-24 UNF forward-mount case, 2.0-metre integral standard cable, miniature coaxial ClickLoc connector, and hazardous-area approvals for CSA, ATEX, and IECEx.
