330194-15-25-50-05
330194-15-25-50-05
Brand:
Bently NevadaItem NO.:
330194-15-25-50-05Product Origin:
USAManufacturer:
Part number:
330194-15-25-50-05Dimension:
1.2x1x68cmWeight:
0.02 kgHS CODE:
8537101190Warranty:
12 monthsSpecification

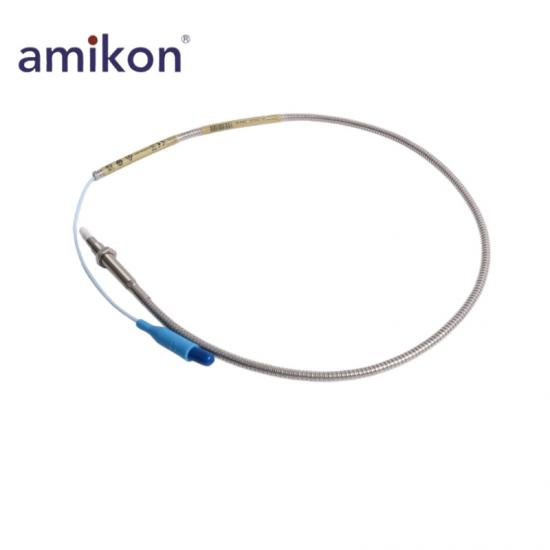

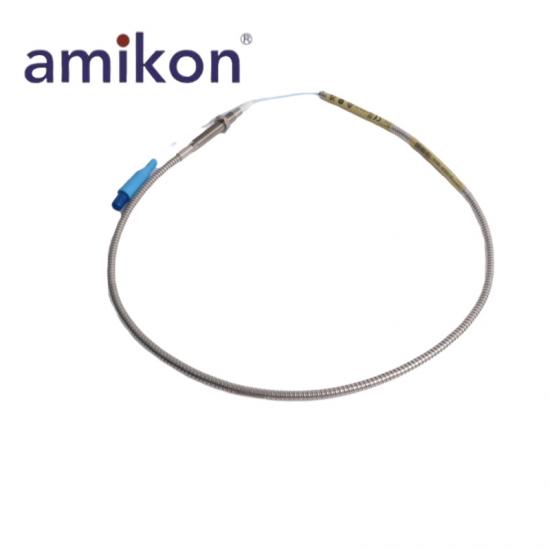

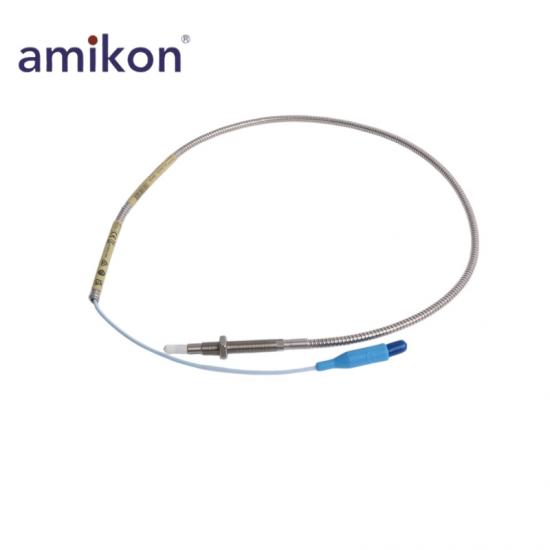

Product Name：Bently Nevada 330194-15-25-50-05 3300 XL 8 mm Probe
Item NO.： 330194-15-25-50-05
Description: 3300 XL 8 mm Probe
Weight: 0.02kg
Dimensions: 1.2x1x68cm
Brand：Bently Nevada
Country of Origin: USA
Place of shipment: Xiamen, China
Unthreaded Length Option: 150mm
Overall Case Length Option: 250mm
Total Length Option: 5.0 meters (16.4 feet)
Agency Approval Option: CSA, ATEX, IECEx Approvals
Power Supply: Requires −17.5 Vdc to −26 Vdc (12 mA max). Barriers need −23 Vdc to −26 Vdc.
Sensitivity: Less than 2 mV change per volt change in input voltage.
Output Resistance: 50 Ω
Nominal Probe DC Resistance (RPROBE): 8.73 ± 0.50 Ω for 5.0 m length
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel
Cable Type: 75 Ω triaxial FEP insulated (standard)
Armor: Flexible AISI 302/304 SST with FEP jacket
Tensile Strength: 330 N (75 lbf) probe case to lead; 270 N (60 lbf) at connectors
Connector Torque Max: 0.565 N·m (5 in-lbf)
Probe Case Thread: M10×1, max engagement 15 mm
Sealing: Viton® O-ring (differential pressure seal)
Contact us
> Sales manager：Jim Pei
> Email：sales6@amikon.cn
> Wechat: ZXH18020776782
> Phone/WhatsApp：+86 18020776782
Product Introduction
|
The Bently Nevada 330194-15-25-50-05 is a 3300 XL 8 mm proximity probe designed for accurate, non-contact vibration and position measurement in rotating machinery. Featuring an M10×1 threaded, armored construction with a 5-meter integral cable, it provides reliable performance in harsh industrial environments. Widely used in turbines, compressors, and pumps, it offers high durability, strong noise immunity, and hazardous-area certifications (CSA, ATEX, IECEx) for oil & gas and power generation applications. |
