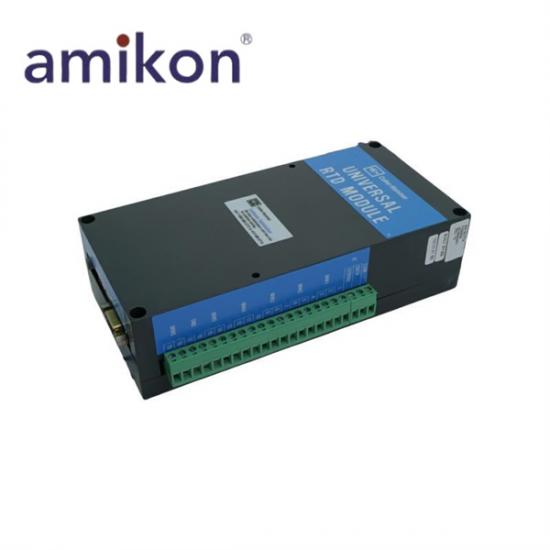

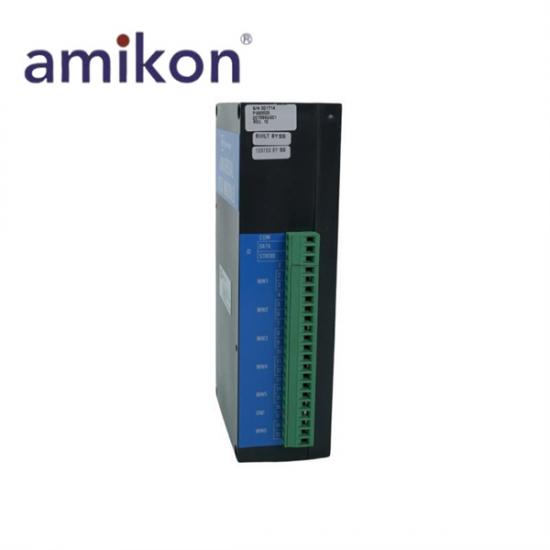

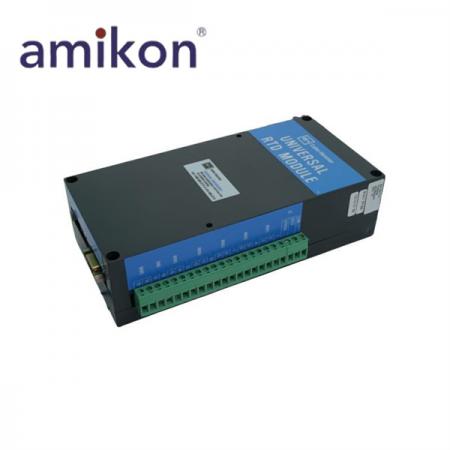

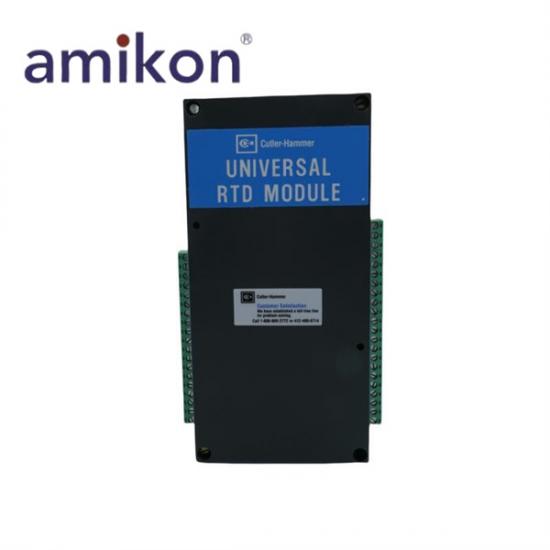

Cuttler Hammer 2D78559G01 Universal RTD Module

Manufacturer: Cuttler Hammer
Product Model: 2D78559G01
Product Type: Universal RTD Module
Country of origin: USA
Input Channels: C4 channels
Excitation Current: C0.25 mA typical per RTD
Accuracy: C±0.1% of reading
Update Time: C50 ms per channel
Input Impedance: C> 10 MΩ
Common Mode Rejection: C> 120 dB at 50/60 Hz
Normal Mode Rejection: C> 60 dB at 50/60 Hz
Isolation: C500 V AC channel-to-channel
Operating Temperature: C0°C to +60°C
Storage Temperature: C-40°C to +85°C

The Cuttler Hammer / Westinghouse 2D78559G01 Universal RTD Module is a high-performance temperature sensing solution designed for demanding industrial environments. Engineered for precision and reliability, this module is compatible with a wide range of control systems, ensuring seamless integration into PLCs, DCS, or other automation platforms. Its robust construction and advanced design allow it to deliver stable and accurate temperature measurements, making it ideal for process control, manufacturing, and energy management applications.
With an ultra-wide operating temperature range of -40°C to +125°C and a rapid response time of ≤0.1 seconds, the 2D78559G01 module ensures accurate, real-time monitoring under extreme conditions. Featuring a high input resistance of 1KΩ and providing a 4–20 mA output signal, it minimizes interference and maintains signal integrity across various industrial settings. The module’s DC 12V supply voltage requirement simplifies installation and enhances compatibility, offering a versatile and reliable solution for industrial temperature measurement and process optimization.
