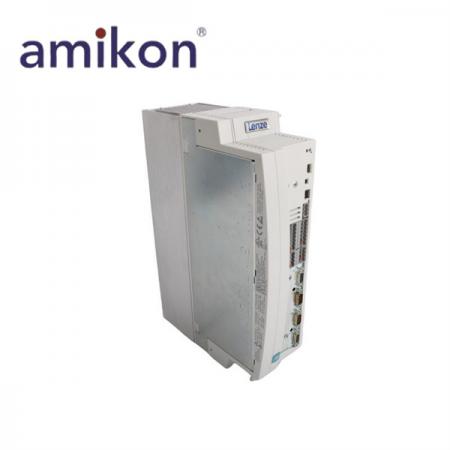

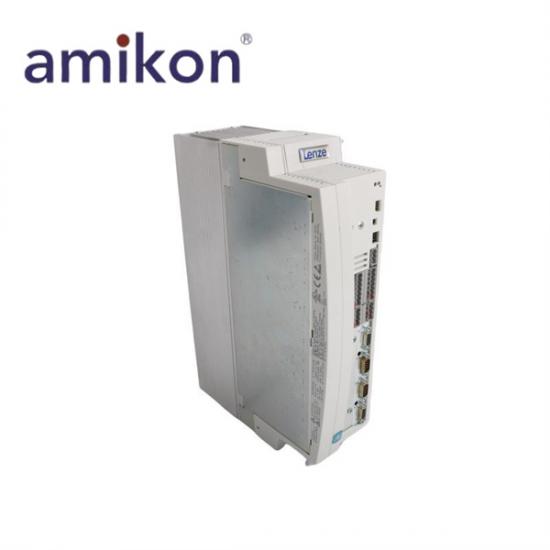

LENZE EVS9323-ES Servo Inverter

Manufacturer	Lenze
Product Type	Servo Inverter
Product Line	Series 9300
Part Number	EVS9323-ES
Typical Motor Power	1.5 kW (2.0 hp)
Rated Output Current	3.9 A (8 kHz switching frequency)
Maximum Current	5.85 A (8 kHz switching frequency)
Standstill Current	5.9 A (8 kHz switching frequency)
Supply Voltage Range	320 V to 528 V AC
Output Voltage	Up to 94% of input voltage with mains choke; full input voltage without choke
Switching Frequency Options	8 kHz or 16 kHz
Efficiency (Without Choke)	Up to 100% of rated input voltage
Rated Output Power	2.2 kW
Maximum Power Loss	140 W
Motor Cable Length	Up to 50 m without additional filters (at 8 kHz and rated voltage)
Ambient Temperature Range	0°C to +55°C (derate output current by 2.5% per °C above +40°C)
Protection Rating	IP20
Mounting Conditions	Vertical installation within a control cabinet

The Lenze EVS9323-ES is a servo inverter in the Series 9300. It can handle typical motor power outputs of 1.5 kW, equivalent to 2.0 horsepower. It is rated for a continuous output current of 3.9 A at an 8 kHz switching frequency. Under maximum load conditions, this inverter can reach a capacity of 5.85 A and draw a standstill current of 5.9 A at the same frequency.
The device operates over a supply voltage range of 320 V to 528 V AC. It can generate an output voltage reaching up to 94% of the input voltage when using a mains choke or use the full input voltage without the choke for scenarios that require it. This inverter has flexibility in switching frequency, offering 8 kHz or 16 kHz options.
The EVS9323-ES can maintain efficiency close to 100% of its rated input voltage when operating without a choke. Its rated output power capacity is set at 2.2 kW, while it can experience maximum power loss levels of 140 W. The motor cable length can extend up to 50 meters without any need for additional filtering at the 8 kHz rating and rated voltage.
