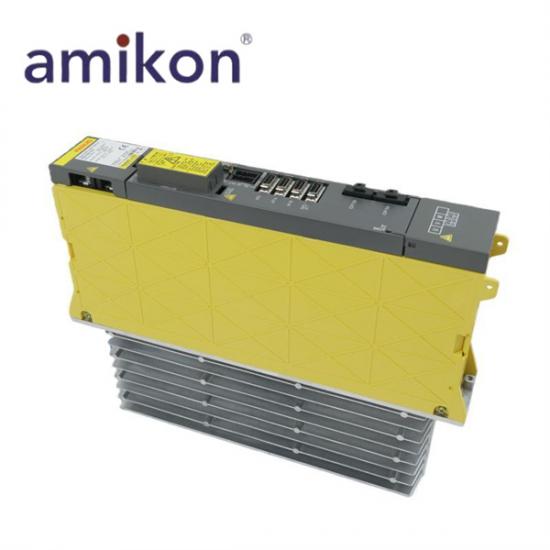

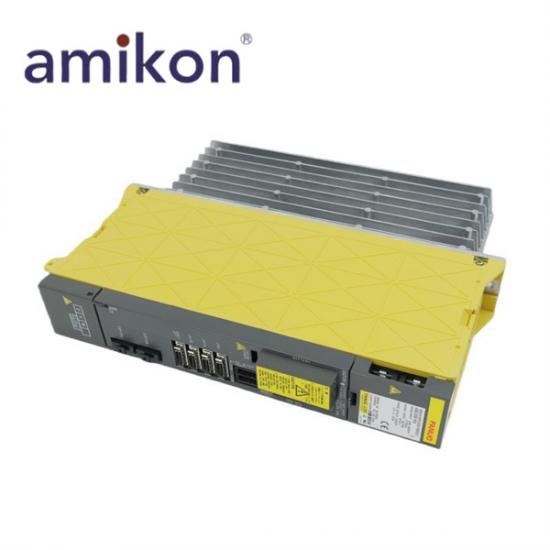

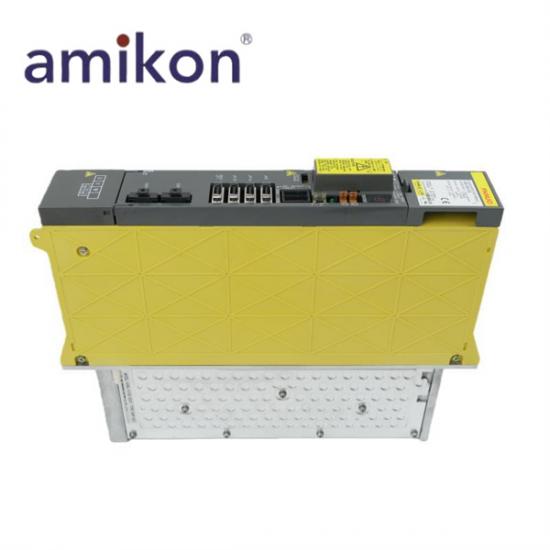

General Electric A06B-6096-H104 Single-Axis Servo Amplifier Module

✣ Product Information ✣

General Electric A06B-6096-H104 is a single-axis servo amplifier module from the Alpha series, identified as the SVM1-40L. It receives motion commands from the CNC controller and regulates the positioning, speed, acceleration, and deceleration of one machine-tool feed axis. The module uses an FSSB optical-fiber interface for high-speed communication and operates with a rated DC link input of 283 to 325 VDC. Maximum output voltage reaches 230 VAC, while the rated L-axis output current is 12.5 A.
General Electric A06B-6096-H104 belongs to the 200 V AC input series and uses a Type 2 external heatsink structure for heat dissipation. The compact module can control compatible servo motors used on X, Y, or Z axes in CNC machining systems. Typical installations include machine tools equipped with Fanuc 15i, 16i, 18i, 20i, or 21i controllers using the FSSB servo network. Compatible motor applications may include Alpha-series models such as α12/2000, αC22/1500, and α22/1500.

✣ Technical Data ✣

Manufacturer: General Electric
Product Model: A06B-6096-H104
Product Type: Single-Axis Servo Amplifier Module
Place of 0rigin: USA
Axis Configuration: Single-axis (L-axis)
Input Voltage Class: 200 V AC Input Series
Rated DC Link Input Voltage: 283 V DC to 325 V DC
Maximum AC Output Voltage: 230 V AC
Rated Output Current: 12.5 Amps
Communication Interface: FSSB (Fanuc Serial Servo Bus) Optical Fiber
Cooling Method / Structure: Type 2 External Heatsink

✣ Need Assistance? ✣

For pricing, stock availability, or additional product information, feel free to contact us.

✣ Why Partner With Us? ✣

Industrial Automation Parts Supply

We supply a wide range of industrial automation components, including PLCs, DCS modules, HMI panels, servo drives, power supplies, I/O modules, communication modules, and other control system spare parts.

Worldwide Shipping

Orders can be shipped to customers in many countries through established international carriers, with delivery options selected according to destination and urgency.

Export Documentation

We provide standard export documents and assist with shipping paperwork to help support international orders.

Careful Packaging

Products are packed carefully before shipment to help reduce the risk of damage during transportation.

Product Sourcing

If a required part is difficult to find, we can help check availability through our supplier network and provide sourcing support whenever possible.

Customer Support

Our team responds to product inquiries, quotations, and order updates, helping customers obtain the information needed before and after purchase.

✣FAQ ✣

1. What function does General Electric A06B-6096-H104 perform?
General Electric A06B-6096-H104 controls the position, movement speed, acceleration, and deceleration of one CNC machine-tool feed axis.

2. How many axes can General Electric A06B-6096-H104 control?
General Electric A06B-6096-H104 operates as a single-axis amplifier for one L-axis servo motor.

3. Which communication interface does General Electric A06B-6096-H104 use?
General Electric A06B-6096-H104 communicates with the CNC controller through the FSSB optical-fiber servo bus.

4. Can General Electric A06B-6096-H104 provide a 230 VAC motor output?
Yes. General Electric A06B-6096-H104 supports a maximum three-phase AC output voltage of 230 V and a rated output current of 12.5 A.

5. What cooling structure applies to General Electric A06B-6096-H104?
General Electric A06B-6096-H104 uses a Type 2 external heatsink structure to dissipate heat during servo operation.
