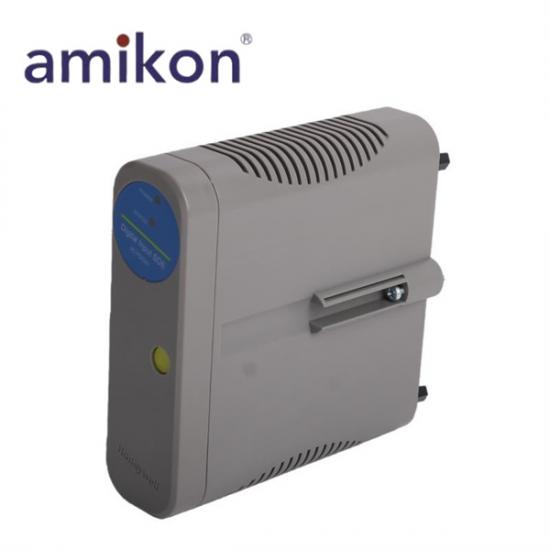

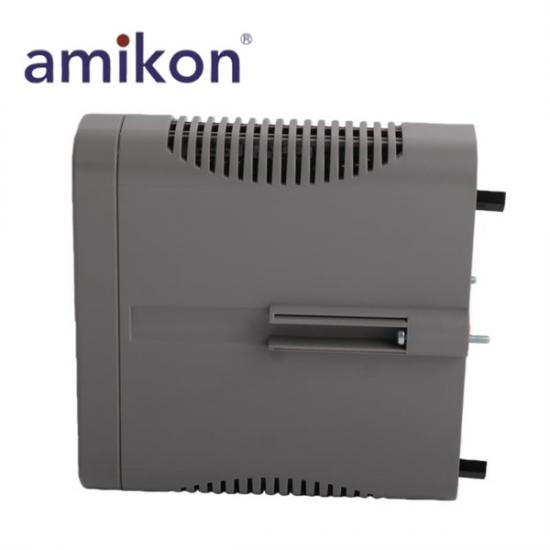

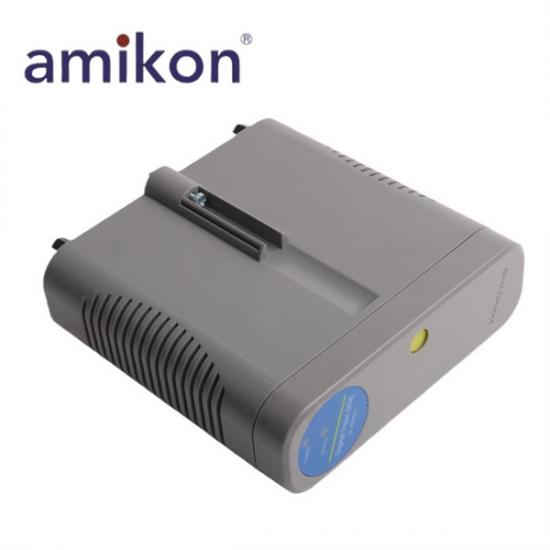

Honeywell 8C-PDISA1 51454471-276 Digital Input Sequence of Events, Coated

※Contact Us

Account Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

Feel free to contact us for product inquiries, quotation and technical support. We are always ready to provide professional and efficient service for you.

※Product Specifications

Honeywell 8C-PDISA1 51454471-276 Digital Input Sequence of Events, Coated

Manufacturer: Honeywell
Product Numbers: 8C-PDISA1 51454471-276
Product Type: Digital Input Sequence of Events, Coated
Place of 0rigin: USA
Input Channels: 32
Input Channel Scanning (PV): Normal = 20ms ;  Fast = 5ms
Digital Input Resolution for Sequence of Events (SOE): 1ms
Voltage Rating: 24 VDC
DI Power Voltage Range: 18 to 30 VDC
Module current rating: 95 mA
Galvanic Isolation (any input terminal voltage referenced to common): 1000 VAC RMS or ±1000 VDC
Isolation Technique: Optical (in IOM)
ON Sense Voltage/Current: 13 VDC (min) or 3 mA (min)
OFF Sense Voltage/Current: 5 VDC (max) or 1.2 mA (max)
Input Impedance: 4.2 KΩ
Absolute Delay Across Input Filter and Isolation: 5 ms ± 20%
Field Resistance for Guaranteed ON Condition: 300 Ωmax @ 15 VDC
Field Resistance for Guaranteed OFF Condition: 30 KΩmin @ 30 VDC
Module Removal and Insertion under power: Supported

※Product Description

The Honeywell 8C-PDISA1 (51454471-276) is a 32-channel digital input Sequence of Events (SOE) module designed for high-resolution event monitoring in industrial control systems. It supports 24 VDC nominal input signals with a wide operating range of 18 to 30 VDC, making it suitable for demanding field environments. The module provides fast and normal scanning modes (5 ms and 20 ms), enabling precise time-stamped event capture with SOE resolution down to 1 ms. With optical isolation built into the IOM and galvanic isolation rated up to 1000 VAC RMS or ±1000 VDC, it ensures strong protection between field inputs and control logic, improving system safety and signal integrity.
This module features a low current consumption of 95 mA and is engineered with a 4.2 kΩ input impedance for stable signal detection. It supports 13 VDC (min) / 3 mA ON sensing and 5 VDC (max) / 1.2 mA OFF sensing, ensuring reliable status discrimination across varying field conditions. The input filter and isolation introduce a controlled delay of 5 ms ±20%, balancing speed and stability in SOE applications. Designed for industrial robustness, it also supports hot removal and insertion under power, making it highly practical for maintenance in continuous-operation systems. The coated design further enhances durability in harsh environments.
