>Honeywell CC-TSP411 51306669-175 Speed Protection Module IOTA


Speed Protection Module IOTA
Speed Protection Module IOTA Speed Protection Module IOTA Speed Protection Module IOTA

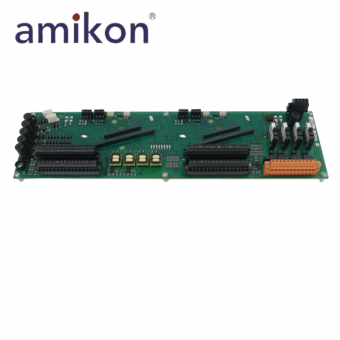

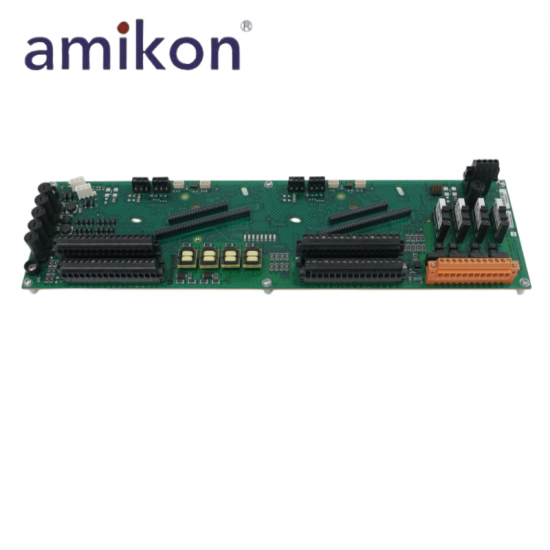

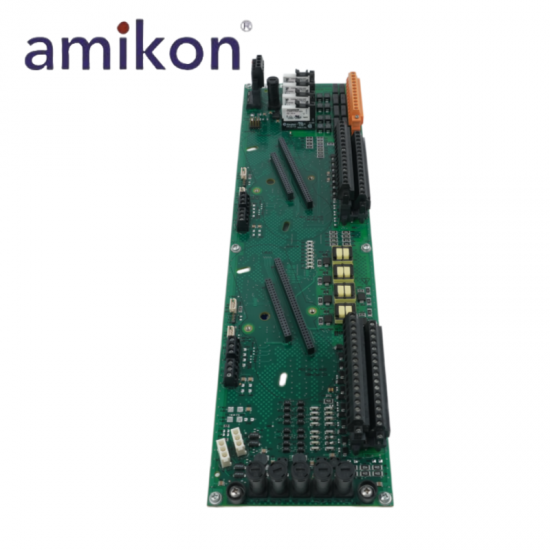

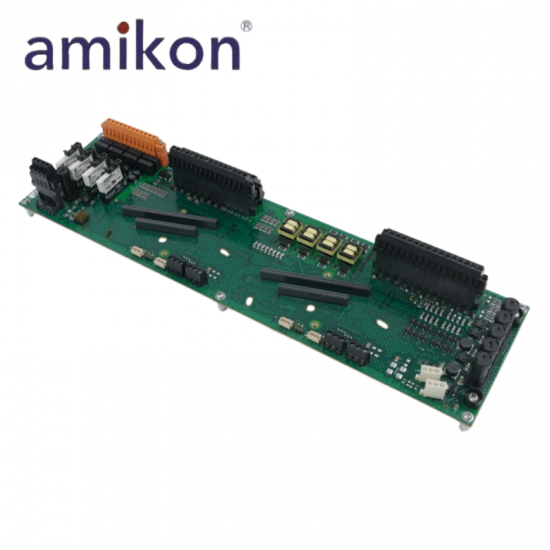

Honeywell CC-TSP411 51306669-175 Speed Protection Module IOTA

CC-TSP411 (51306669-175) is a Honeywell Experion Series C redundant 18-inch Speed Protection IOTA for turbomachinery applications.

  • Brand:

    Honeywell

  • Item NO.:

    CC-TSP411 51306669-1

  • Product Origin:

    USA

  • Manufacturer:

    Honeywell

  • Part number:

    CC-TSP411 51306669-175

  • Dimension:

    44.3x12x7cm

  • Weight:

    0.7 kg
Inquiry now
Product Detail
Honeywell Experion Series C
CC-TSP411 51306669-175
Speed Protection Module IOTA
Turbomachinery Protection I/O

Contact info

Sales Manager
Jim Pei 		Email
sales6@amikon.cn 		Wechat
ZXH18020776782 		Phone / WhatsApp
+86 18020776782

Specifications

Technical Parameter Official Value
Model Number CC-TSP411
Part Number 51306669-175
Manufacturer Honeywell
Product Family Experion Series C Turbomachinery I/O
Product Type Speed Protection IOTA
Configuration Redundant
IOTA Size 18 inch
Associated IOM CC-PSP401
Speed Input Channels 4
Speed Input Types Active or passive probes
Passive Probe Isolation ±1000 VDC
Passive Isolation Technique Isolation transformer on IOTA
Magnetic Pickup Level >0.5 Vpk and <42 Vpk
Active TTL OFF / ON <1 VDC / >3.5 VDC
24 V Active OFF / ON <6 V / >10 V
Magnetic Pickup Frequency 150 Hz to 25 kHz
Active Pickup Frequency 1 Hz to 10 kHz
Active Input Excitation 5 or 24 VDC
Speed Resolution 0.015% of upscale
Speed Accuracy 0.05% of reading
Passive Input Impedance 2 kΩ at 1 kHz
Active Input Impedance >1.5 kΩ
Speed Input Scan Rate 2.5 ms
Digital Output Channels 4 isolated
Contact Form Form A or Form B, jumper selectable
Maximum Load Voltage 230 VAC RMS / 24 VDC
Output Isolation 1500 VAC RMS or ±1500 VDC
Analog Input Channels 8
Analog Output Channels 1
Digital Input Channels 8
DI Power Range 22 to 28 VDC
Analog Input Resolution 16 bit
Analog Input Scan Rate 10 ms
Analog Output Type 4–20 mA
Maximum AO Load 760 Ω
AO Response Time 1 ms
Official Specification Honeywell EP03-540-511

Description

CC-TSP411 is a Honeywell MIV II digital voltage and frequency protection relay for industrial and utility power systems. It supports voltage measurement from 10–250 V and the HI auxiliary supply range for 110–250 VDC or 110–220 VAC service. The relay combines programmable protection, monitoring, indication, and control functions in a compact M Family platform. Its front-panel interface supports straightforward settings review and event analysis. This legacy GE protection relay is suitable for replacement, retrofit, maintenance, and spare-parts requirements. It provides a dependable solution for extending the service life of installed electrical protection systems.

Product Applications & Features

Product ApplicationsCC-TSP411 is used in industrial distribution systems, utility substations, generator and feeder protection schemes, retrofit projects, and maintenance replacement programs.
FeaturesDigital voltage and frequency protection, programmable relay logic, event recording, front-panel indication, configurable outputs, and integration into established protection and control practices.
