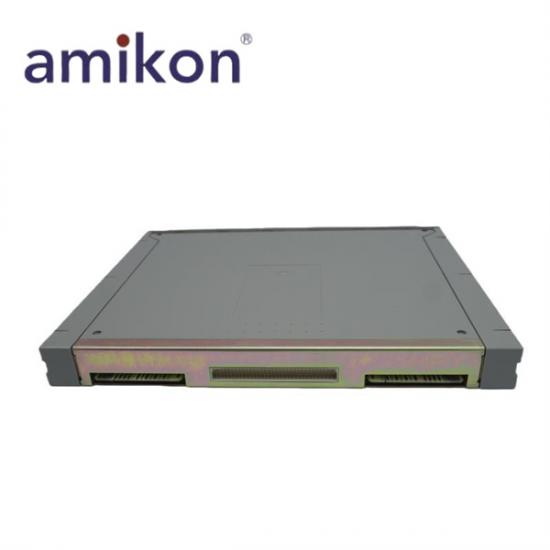

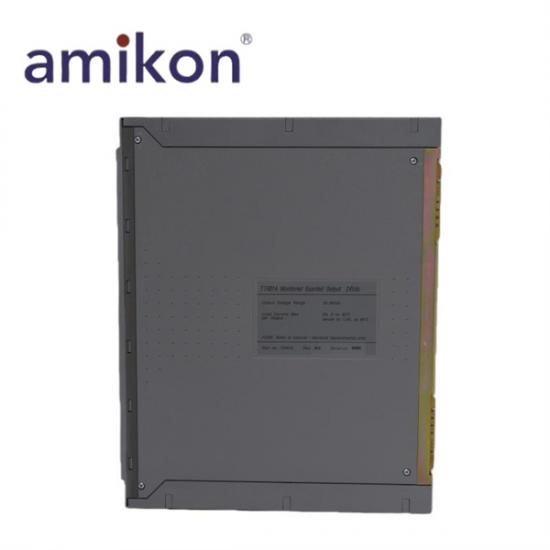

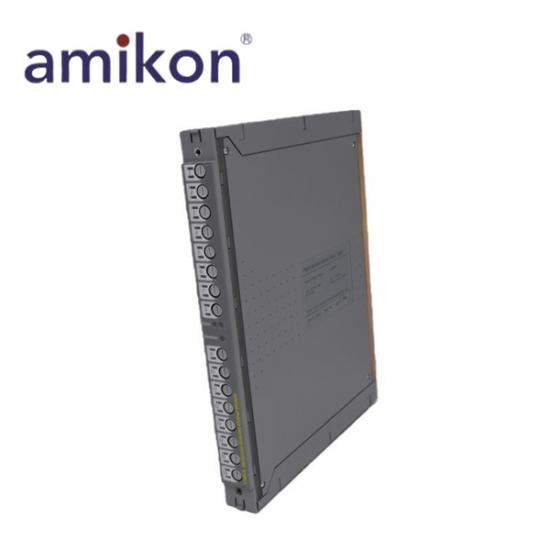

ICS Triplex T7481 Monitored Guarded Output Module

—— Contact Us ——

—— Product Information ——

Monitored Guarded output modules provide Guarded control and line monitoring for sixteen field loads.

Three types of modules are available for interfacing to outputs powered from 24 VDC, 110 VAC, or 120 VDC field power supplies.

These modules are called Guarded because each module's dualredundant design ensures that no single fault within the module will inadvertently apply power to an output.

These modules also monitor the output field wiring for open and short circuit faults.  Individual output line status is available to application programs.
Features
• Sixteen Guarded outputs (in two groups of eight).
• Fault tolerant operation when connected in parallel with another module of the same type.
• Hot-replaceable.
• Complete, automatic testing of all output circuits.
• Automatic line monitoring detects open and short field wiring circuits.
• Individual front panel indicators on each module show module fault/active status and shutdown state; additional indicators show output status and load/fuse fault for each point. Fuses accessible from front panel.
• 2500 minimum electrical isolation between field and logic circuits.
• TÜV certified, Risk Class 5.

—— Technical Specifications ——

Manufacturer: ICS Triplex
Product Numbers: T7481
Product Type: Monitored Guarded Output Module
Place of 0rigin: USA
Voltage Range: 18 to 36 VDC
Number of Outputs: 16 (2 groups of 8)
Load Current (0-40°C): 2 A
Load Current (at 60°C): 1.5 A (derated)
Minimum Load Current: 20 mA
On-State Voltage Drop: 1.0 V maximum
Surge Current (inductive): 7 A for 20 ms
Safetybus Power: 1.5 load units
Over Voltage Protection: 70 VDC continuous, 100 VDC for 5 sec
