>Pepperl+Fuchs HD2-DM-B FieldConnex Basic Diagnostic Module


FieldConnex Basic Diagnostic Module
FieldConnex Basic Diagnostic Module FieldConnex Basic Diagnostic Module FieldConnex Basic Diagnostic Module

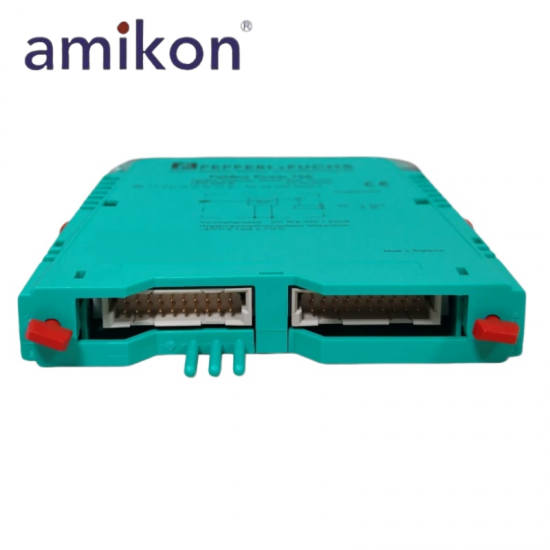

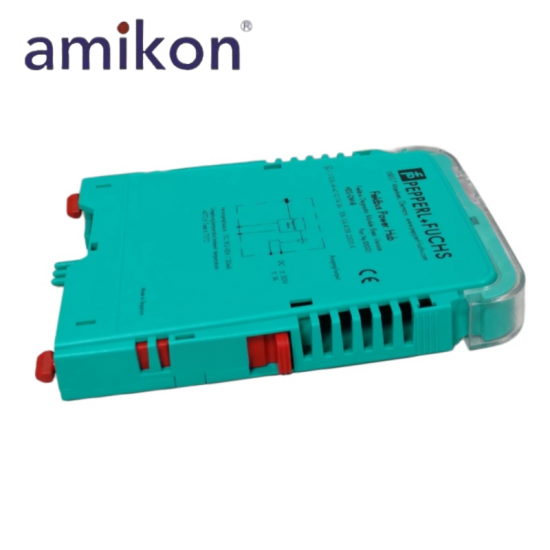

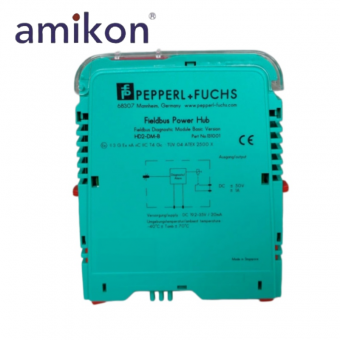

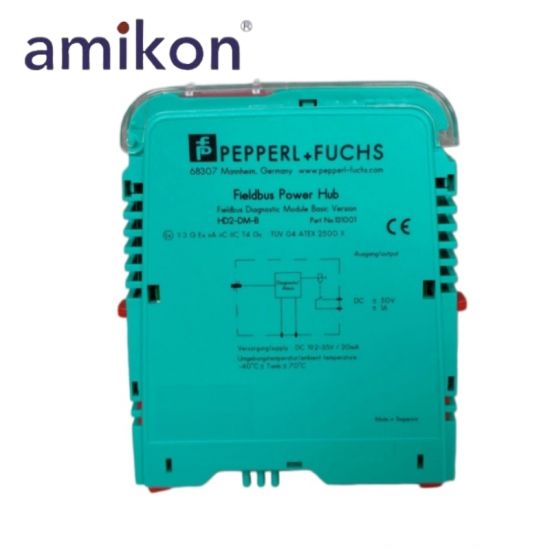

Pepperl+Fuchs HD2-DM-B FieldConnex Basic Diagnostic Module

Product Name: HD2-DM-B FieldConnex Basic Diagnostic Module
Brand Name: Pepperl+Fuchs
Model Number: HD2-DM-B
Place of Origin: Germany
Warranty: 12 Months
Whatsapp: +86 18020776782
Email: sales6@amikon.cn

  • Brand:

    Other Hot-sellings

  • Item NO.:

    HD2-DM-B

  • Product Origin:

    Germany

  • Lead Time:

    3-7 Days

  • Manufacturer:

    Pepperl+Fuchs

  • Part number:

    HD2-DM-B
Inquiry now
Product Detail
Pepperl+Fuchs INDUSTRIAL AUTOMATION
HD2-DM-B
FieldConnex Basic Diagnostic Module
Official Product Data

Contact info

Sales Manager
Jim Pei 		Email
sales6@amikon.cn 		Wechat
ZXH18020776782 		Phone / WhatsApp
+86 18020776782

Specifications

Technical Parameter Official Value
Model Number HD2-DM-B
Product type Basic Diagnostic Module
Design / mounting Motherboard based
Hazardous-area installation Zone 2 / Division 2
Rated voltage 19.2 to 35 V
Rated current 20 mA
Power dissipation Maximum 0.5 W
Number of fieldbus segments 4
Primary power LED Green; primary bulk supply connected
Secondary power LED Green; secondary bulk supply connected
Error LED Red, 2 Hz flashing on supply/redundancy fault
Fault signal VFC alarm, 1 A at 50 V DC, normally closed
Segment isolation Functional insulation to IEC 62103
Rated insulation voltage 50 Veff
EMC directive 2014/30/EU; EN 61326-1:2013
EMC standard NE 21:2011
Operating temperature -40 to +70 °C
Storage temperature -40 to +85 °C
Relative humidity Below 95%, non-condensing
Shock resistance 15 g, 11 ms
Vibration resistance 1 g, 10 to 150 Hz
Pollution degree Maximum 2 to IEC 60664
Corrosion resistance ISA-S71.04-1985, severity G3
Housing material Polycarbonate
Degree of protection IP20
Mounting method Motherboard mounting
ATEX certificate TÜV 04 ATEX 2500 X
ATEX marking II 3 G Ex nA nC IIC T4 Gc
FM certificates FM 19 US 0015 X / FM 19 CA 0011 X
IECEx certificate IECEx TUN 13.0038X
IECEx marking Ex nA IIC T4 Gc
Fieldbus compatibility FOUNDATION Fieldbus H1 / PROFIBUS PA

Description

HD2-DM-B is an official Pepperl+Fuchs FieldConnex basic diagnostic module for fieldbus power hub monitoring. It operates from 19.2 to 35 V with 20 mA rated current and monitors four fieldbus segments. LED indication and a normally closed VFC alarm support power-supply and redundancy diagnostics. The module is designed for motherboard mounting and Zone 2 / Division 2 installations. This Pepperl+Fuchs diagnostic module supports online monitoring for FOUNDATION Fieldbus H1 and PROFIBUS PA infrastructure.

Product Applications & Features

Product ApplicationsUsed for basic online monitoring of FieldConnex power hub supply status, redundancy health, and fieldbus infrastructure.
FeaturesSuitable for process automation plants using FOUNDATION Fieldbus H1 or PROFIBUS PA in hazardous-area and industrial installations.
