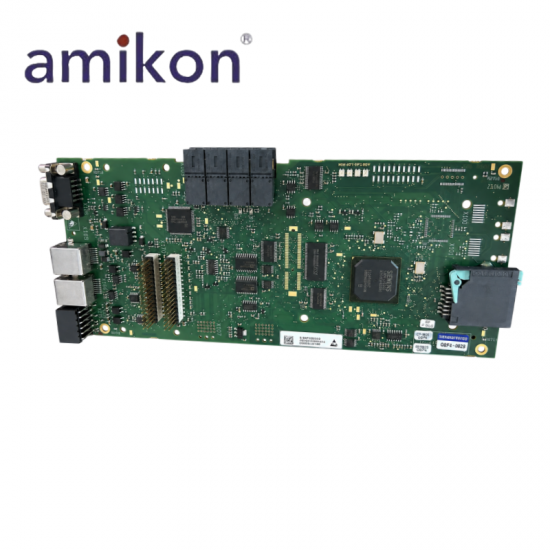

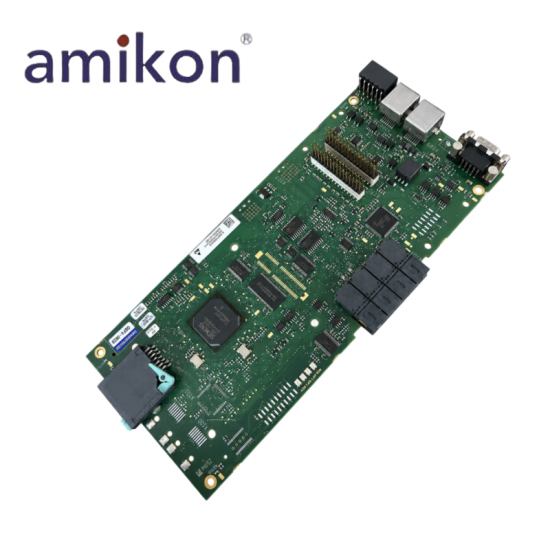

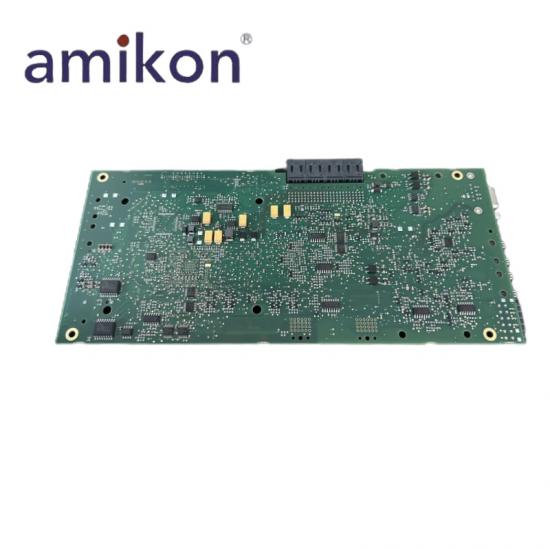

Siemens A5F00133580-014 C98043-A7100 Control Unit Board

Contact Info

ü Sales manager：Jim Pei

ü Email：sales6@amikon.cn

ü Wechat: ZXH18020776782

ü Phone/WhatsApp：+86 18020776782

Product Description

Product Model: A5F00133580-014 C98043-A7100

Product Parameters: Control Unit Board

Country of origin: Germany

Place of shipment: Xiamen, China

Manufacturer: Siemens

In stock: 1 unit

Weight: 0.2 kg

Serial Interface: RS232 / RS485

Connector Type: 9-Pin D-Sub Connector

Power Supply: 24 V DC

Electronics Power: 2-phase 380–480 V AC

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +70°C

Relative Humidity: <95% (non-condensing)

Compatible Drive Series: SINAMICS DCM (6RA80 series DC converters)

Memory Capacity: 32 MB

Digital Inputs: 4 (2 unused, 2 pre-defined as ON/OFF1 and Regulator Enable)

Configuration Versions: Available as Standard CUD (-L3) or Advanced CUD (-L4) variant

Firmware Compatibility: Fully compatible with all software versions (V1.1, V1.2, V1.3, V1.4, and newer)

Parameterization: Via BOP (Basic Operator Panel) or STARTER software

Advantage

Central Drive Control Function

The board serves as the main control core of Siemens SINAMICS DCM / 6RA80 systems, executing real-time closed-loop control of DC motor speed, torque, armature current, and field current to ensure precise and stable operation.

Signal Acquisition and Processing

It collects and processes feedback signals from encoders, tachometers, and analog/digital sensors, converting them into control actions that maintain accurate motor regulation under changing load conditions.

Power Converter Coordination

The unit synchronizes and controls the power section of the drive system, ensuring correct firing, regulation, and coordination of the rectifier/inverter stages for stable energy conversion.

Industrial Communication Interface

It enables communication via RS232/RS485 and supports integration with PLCs, operator panels, and engineering tools for parameter setting, monitoring, and system control.

Protection and Safety Management

The board provides critical protection functions such as overcurrent, overspeed, fault detection, and emergency stop control, ensuring safe operation of the entire drive system.

System Diagnostics and Control Optimization

It continuously monitors system status, performs fault diagnostics, and supports advanced control algorithms (e.g., field weakening and torque limiting) to optimize performance and reliability.
