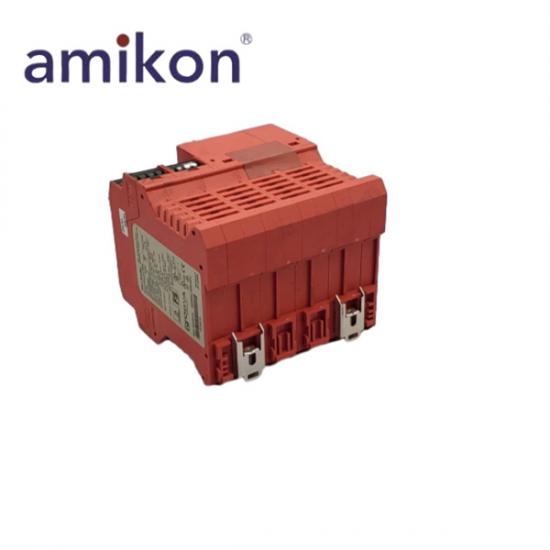

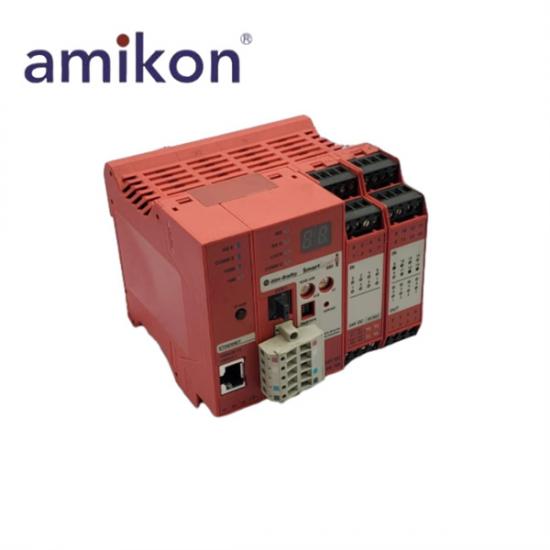

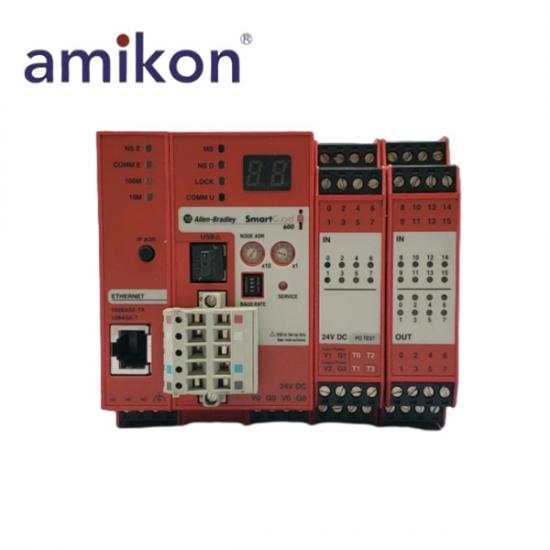

1752-L24BBBE SmartGuard 600 Safety Controller

✣ Product Information ✣

The 1752-L24BBBE safety controller, part of Allen Bradley's SmartGuard 600 series, is designed to meet complex control requirements in industrial settings. With the capability of handling 16 digital inputs and 8 digital outputs, this controller offers significant flexibility in system configuration and monitoring.
Operating on a nominal supply voltage of 24 Volts DC, it functions effectively within a voltage range of 20.4 to 26.4 Volts DC. This unit operates across frequencies of 50 to 60 Hertz, ensuring compatibility with various applications. It also has a current consumption of 280 milliamperes, making it efficient in energy use. The controller has a maximum inrush current of 4.8 amperes for a brief span of 600 microseconds, providing the necessary surge capacity during start-up.
Data transfer is facilitated through multiple communication ports, including Ethernet, DeviceNet, and USB, making it well-suited for integration into modern control systems. The Ethernet data rate supports ranges of 10 to 100 megabits per second, allowing for effective communication bandwidth.

✣ Technical Data ✣

Product Model: 1752-L24BBBE
Product Type: SmartGuard 600 Safety Controller
Place of 0rigin: USA
Number of Inputs/Outputs: 16 digital inputs and 8 digital outputs
Protection Class: IP20
Nominal Supply Voltage: 24 Volts DC
Operating Frequency: 50 to 60 Hertz
Allowable Supply Voltage Range: 20.4 to 26.4 Volts DC
Heat Dissipation: 9.3 Watts (under maximum load)
Communication Ports: Ethernet, DeviceNet, and USB ports
Current Consumption: 280 milliamperes at 24 Volts DC
Inrush Current: 4.8 Amperes (maximum) for 600 microseconds
Ethernet Data Rate: 10 to 100 megabits per second
Input Impedance: 2.6 kiloohms
DeviceNet Current Load: 15 milliamperes at 24 Volts DC
Output Current Rating: 0.5 Amperes

✣ Need Assistance? ✣

For pricing, stock availability, or additional product information, feel free to contact us.

✣ Why Partner With Us? ✣

Industrial Automation Parts Supply

We supply a wide range of industrial automation components, including PLCs, DCS modules, HMI panels, servo drives, power supplies, I/O modules, communication modules, and other control system spare parts.

Worldwide Shipping

Orders can be shipped to customers in many countries through established international carriers, with delivery options selected according to destination and urgency.

Export Documentation

We provide standard export documents and assist with shipping paperwork to help support international orders.

Careful Packaging

Products are packed carefully before shipment to help reduce the risk of damage during transportation.

Product Sourcing

If a required part is difficult to find, we can help check availability through our supplier network and provide sourcing support whenever possible.

Customer Support

Our team responds to product inquiries, quotations, and order updates, helping customers obtain the information needed before and after purchase.

✣FAQ ✣

1. What functions does 1752-L24BBBE SmartGuard 600 Safety Controller provide?
1752-L24BBBE SmartGuard 600 Safety Controller provides safety control functions with 16 digital inputs and 8 digital outputs, helping monitor and control safety-related operations in industrial automation systems.

2. How does 1752-L24BBBE support industrial communication?
1752-L24BBBE includes Ethernet, DeviceNet, and USB communication ports, with Ethernet data rates from 10 to 100 megabits per second for flexible system integration.

3. Can 1752-L24BBBE operate with standard industrial power supplies?
Yes. 1752-L24BBBE uses a 24 V DC nominal supply voltage and supports an allowable voltage range from 20.4 to 26.4 V DC for reliable operation.

4. Does 1752-L24BBBE have low power consumption during operation?
1752-L24BBBE has a current consumption of 280 mA at 24 V DC and heat dissipation of 9.3 W under maximum load, supporting efficient safety system operation.

5. What output capacity does 1752-L24BBBE provide for connected devices?
1752-L24BBBE safety controller provides digital outputs with an output current rating of 0.5 A, suitable for controlling compatible industrial devices and safety circuits.
