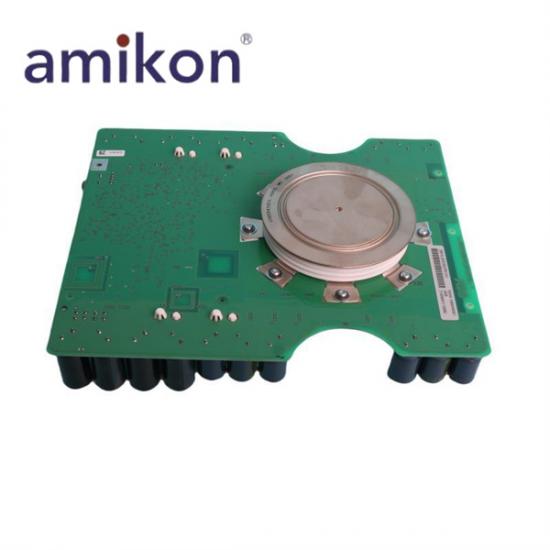

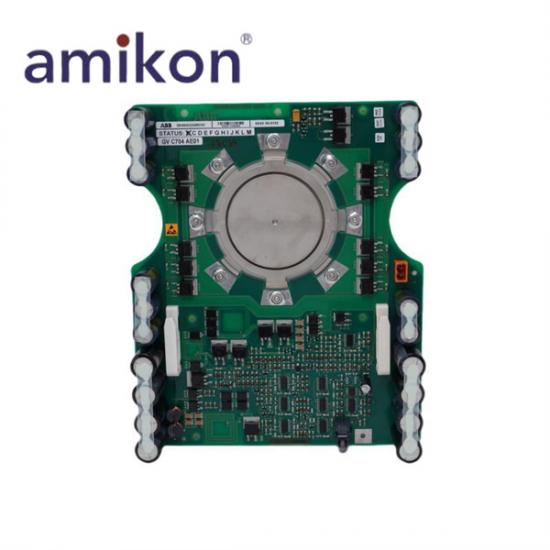

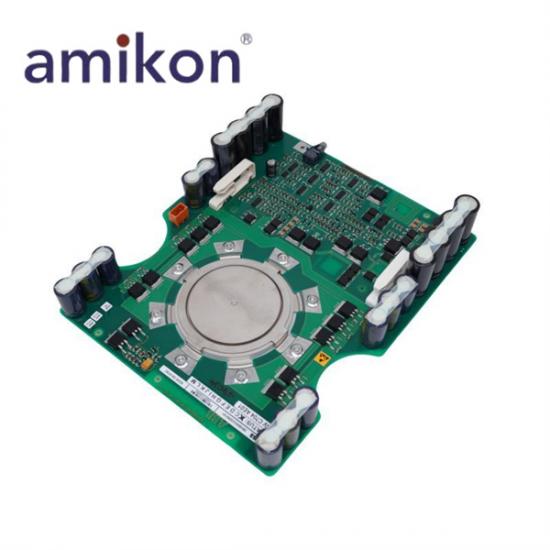

ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 IGCT Power Semiconductor Assembly

Manufacturer: ABB
Product Numbers: 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152
Product Type: IGCT Power Semiconductor Assembly
Place of 0rigin: Sweden
Rated blocking voltage: 4500 V (4.5 kV).
Maximum DC link voltage: 2800 V
Maximum turn-off current: 2100 A
Average on-state current: Approx. 630 A
On-state voltage drop: Typical 2.5V - 3.3V
Gate Unit power input: Typically 28V - 35V DC
Operating junction temperature: 0°C to +125°C.

The ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 IGCT Power Semiconductor Assembly is a high-performance device designed for demanding industrial power applications. It features a rated blocking voltage of 4500 V (4.5 kV) and a maximum DC link voltage of 2800 V, providing robust insulation and reliable performance under high-voltage conditions. The assembly supports a maximum turn-off current of 2100 A and an average on-state current of approximately 630 A, ensuring efficient energy conversion and high operational reliability.
With a typical on-state voltage drop of 2.5 V to 3.3 V, this IGCT assembly minimizes conduction losses while maintaining high efficiency. The gate unit requires a power input of 28–35 V DC, and the device operates safely across a junction temperature range of 0°C to +125°C. Manufactured in Sweden by ABB, the assembly combines compact, durable construction with precise control characteristics, making it suitable for integration into industrial converters, inverters, and other high-power electronic systems.
