Brand:
ABBItem NO.:
RPBA-01 3ABD64606859Payment:
T/TProduct Origin:
FinlandColor:
Light grayShipping Port:
Xiamen, ChinaLead Time:
In stockManufacturer:
ABBPart number:
RPBA-01 3ABD64606859Dimension:
95 × 62 × 20 mmWeight:
HS CODE:
Warranty:
12 monthsSales manager: Jim Pei
Wechat: ZXH18020776782
Email: sales6@amikon.cn
Phone/WhatsApp: +8618020776782

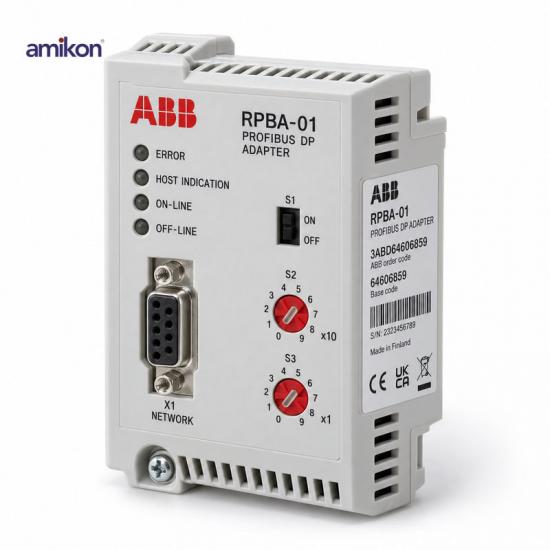

The ABB RPBA-01 3ABD64606859 is an R-series fieldbus adapter that connects a compatible ABB drive to a PROFIBUS DP network. The drive operates as a PROFIBUS slave, allowing the controller to exchange command, reference, status, actual-value and parameter data through the installed adapter.
RPBA-01 supports PROFIBUS DP-V0 and DP-V1, detects the active transfer rate automatically, and works with PROFIdrive and ABB Drives communication profiles. Hardware rotary switches set the node address, a dedicated switch controls bus termination, and three network diagnostic LEDs plus the host indication support commissioning and fault isolation.
This legacy adapter is intended for ABB ACS550, ACH550, ACS800, ACQ800 and DCS800 drives. Selection should be based on the exact drive family, available option slot, required GSD file and the existing PROFIBUS project configuration—not solely on connector appearance.
| Drive-to-PROFIBUS integrationConnects a supported ABB drive as a slave on a PROFIBUS DP network for cyclic control and monitoring. | Control and parameter exchangeCarries start/stop commands, speed or torque references, status and actual values, parameter access and supported fault-reset commands. | Built-in commissioning toolsProvides node-address selectors, selectable bus termination and dedicated ERROR, On-Line, Off-Line and host indications. |
Installation safety: Installation and maintenance must be performed by qualified personnel. Isolate the drive, wait at least five minutes for the intermediate circuit to discharge, verify the absence of voltage, and follow the drive hardware manual before fitting or removing the adapter.
Configuration note: Use the GSD file that matches the selected DP mode. Set the physical node address and bus termination before startup, mount the module in the option slot specified for the drive, and activate the communication module through the drive parameters.
| Manufacturer | ABB |
|---|---|
| Model | RPBA-01 |
| Order / Material Code | 3ABD64606859 |
| Product Family | R-series fieldbus adapter |
| Product Type | PROFIBUS DP adapter module |
| Supported Protocol | PROFIBUS DP-V0 and DP-V1 |
| Communication Profiles | PROFIdrive and ABB Drives |
| Supported PPO Messages | PPO types 1 to 6 |
| Network Role | PROFIBUS slave |
| Compatible ABB Drives | ACS550, ACH550, ACS800, ACQ800 and DCS800 |
| Transfer Rates | 9.6, 19.2, 45.45, 93.75 and 187.5 kbit/s; 500 kbit/s; 1.5, 3, 6 and 12 Mbit/s; automatic detection |
| Transmission Medium | Shielded twisted-pair RS-485 cable |
| Topology / Link Type | Multi-drop / asynchronous half-duplex |
| Node Address Setting | Rotary switches, range 00 to 99 |
| Network Capacity | 127 stations including repeaters; 31 stations plus one repeater per segment |
| Connectors | 34-pin parallel bus connector and 9-pin female D-sub |
| Maximum Cyclic I/O | 28 bytes in, 28 bytes out, 56 bytes total |
| Maximum Acyclic I/O | 240 bytes in, 240 bytes out, 480 bytes total |
| Current Consumption | 350 mA maximum at 5 V, supplied by the drive control board |
| Degree of Protection | IP20 |
| Dimensions | 95 × 62 × 20 mm |
| Mounting | Option slot on the drive control board |
| Country of Origin | Finland |
| Shipping Location / Availability | Xiamen, China / In stock |
| Warranty | 12 months |
