ABB SYN 6302 3BHE056302R0203 Dual-Channel Synchronizing Device

/ Get In Touch With Amikon /

Amikon - Professional Automation Spare Parts Distributor

Account Manager | Leonia

Business Email | sales11@amikon.cn

24/7 WhatsApp | +86 18030175807

/ Product Description /

The Siemens SYN 6302 3BHE056302R0203 is a SYNCHROTACT 6 dual-channel automatic synchronizing device designed for redundant synchronization systems in power generation and grid-parallel applications. It processes measuring inputs U1 and U2 in the range of 57.7 V to 130 V AC and operates within a frequency range of 10 Hz to 100 Hz, supporting both 50 Hz and 60 Hz systems.

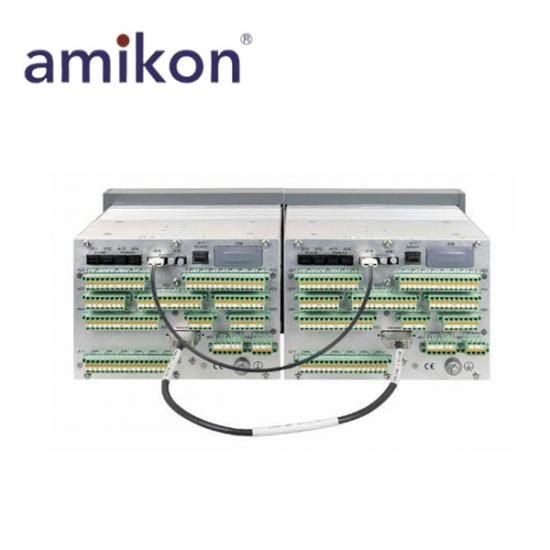

The Siemens SYN 6302 3BHE056302R0203 is built with dual synchronized units configured as a redundant system, where output contacts are typically connected in a 4-channel series arrangement to enhance operational safety. It supports multiple auxiliary voltage options including 24/48 VDC, 100–125 VAC/VDC, and 220–250 VDC, and is certified to IEC 61508 SIL2 for functional safety. Communication interfaces include IEC 61850 Ed.2, Modbus RTU, and Profibus DP, with support for up to 20 parameter sets and 2 kV dielectric isolation, ensuring reliable and secure synchronization performance.

/ Product Specifications /

Manufacturer: Siemens
Product Numbers: SYN 6302 3BHE056302R0203
Product Type: Dual-Channel Synchronizing Device
Place of 0rigin: Sweden
Series: SYNCHROTACT 6
Measuring Inputs (U1, U2): 57.7 V to 130 V AC (Nominal range)
Frequency Range: 50 Hz or 60 Hz (Operating range: 10 Hz to 100 Hz)
Auxiliary Voltage: 24 / 48 VDC or 100 to 125 VAC/VDC or 220 to 250 VDCSafety Certification: IEC 61508 SIL2 (Functional Safety)
Communication Protocols: IEC 61850 Ed.2, Modbus RTU, Profibus DP
Parameter Sets: Supports up to 20 independent parameter sets
Output Contacts: 4-channel series configuration (Redundant mode)
Isolation: 2 kV (Dielectric test, IEC 60255-5)
