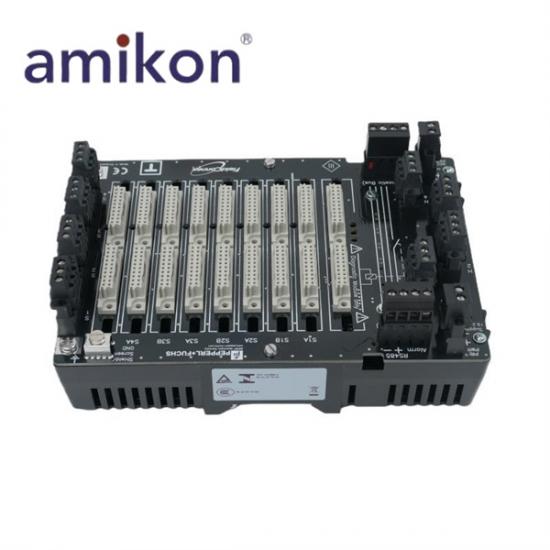

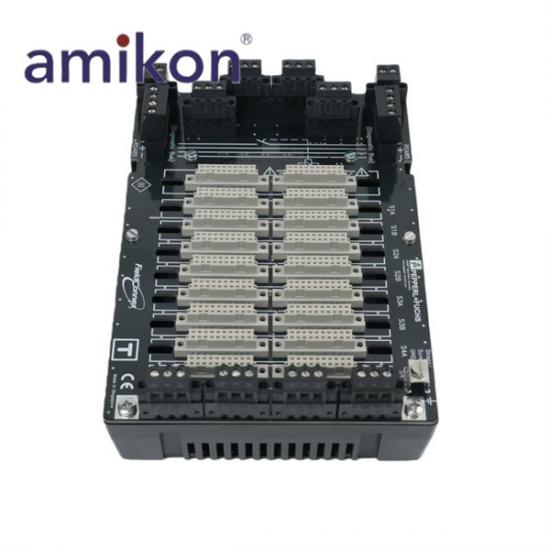

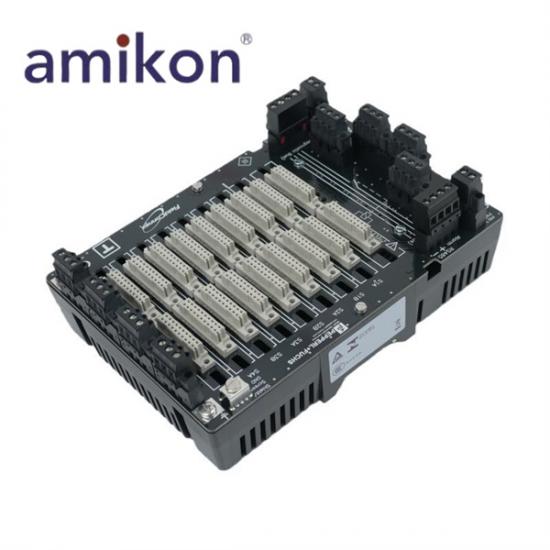

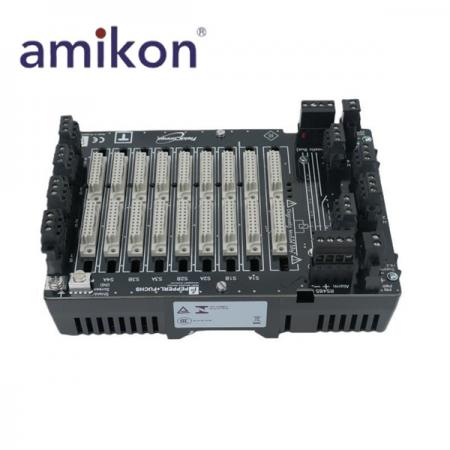

4-segment redundant FieldConnex Power Hub motherboard with pluggable screw terminals.
Services: Stock check · Fast response · Global delivery
Leonia: sales11@amikon.cn · +86 18030175807
Brand:
Other Hot-sellingsItem NO.:
MBHC-FB-4RPayment:
T/TLead Time:
Confirm by RFQManufacturer:
Pepperl+FuchsPart number:
MBHC-FB-4R | 267022Weight:
Approx. 580 gMBHC-FB-4R is a four-segment redundant FieldConnex Power Hub motherboard with a common host interface and pluggable screw terminals.
Pepperl+Fuchs MBHC-FB-4R provides four redundant power-supply segments for FOUNDATION Fieldbus H1. The motherboard uses a general-purpose common host interface and supports PLC and PCS hosts.
The exact MBHC-FB-4R version uses pluggable screw terminals. Pepperl+Fuchs lists item number 267022 for this model.
| Manufacturer | Pepperl+Fuchs |
|---|---|
| Model | MBHC-FB-4R |
| Item number | 267022 |
| Product type | Power Hub motherboard |
| Fieldbus platform | FieldConnex FOUNDATION Fieldbus H1 |
| Design / mounting | Motherboard based |
| Hazardous-area installation | Zone 2 / Division 2 |
| Supply connection | Redundant |
| Rated voltage | 19.2 to 35 V SELV/PELV |
| Rated current | 12 A |
| Power dissipation | Typically 0.4 W per segment |
| Number of segments | 4 redundant power-supply segments |
| Host side | General-purpose host |
| Terminating resistor | 100 Ω integrated |
| Fault signal | VFC alarm, 1 A at 50 V DC, normally closed |
| Segment-to-segment isolation | Functional insulation to IEC 62103; rated insulation voltage 50 Veff |
| Segment-to-supply isolation | Functional insulation to IEC 62103; rated insulation voltage 250 Veff |
| Ambient temperature | -40 to 70 °C (-40 to 158 °F) |
| Storage temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative humidity | Less than 95%, non-condensing |
| Shock resistance | 10 g, 11 ms |
| Vibration resistance | 1 g, 10 to 150 Hz |
| Pollution degree | Maximum 2 according to IEC 60664 |
| Corrosion resistance | ISA-S71.04-1985, severity level G3 |
| Connection type | Pluggable screw terminal |
| Core cross section | 2.5 mm² |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | Approximately 580 g |
| Mounting | DIN rail mounting |
| ATEX certificate | TÜV 10 ATEX 555761X |
| IECEx certificate | IECEx TUN 13.0037X |
The motherboard supplies four fieldbus segments with redundant power-supply connections.
Each system uses the documented 100 Ω integrated terminating resistor arrangement.
Pepperl+Fuchs specifies typical power dissipation of 0.4 W per segment.
The common host interface is specified for general-purpose hosts and supports PLC and PCS systems. The motherboard is DIN-rail mounted and the exact MBHC-FB-4R version uses removable, pluggable screw terminals.
The official datasheet lists HD2-DM-B, HD2-DM-A and HD2-DM-A.RO diagnostic modules for use with this motherboard. Installation is documented for Zone 2 / Division 2, subject to the applicable certificates and instruction manual.
MBHC-FB-4R is a four-segment redundant FieldConnex Power Hub motherboard with a common host interface.
The exact MBHC-FB-4R model uses removable, pluggable screw terminals.
Pepperl+Fuchs specifies 19.2 to 35 V SELV/PELV and a rated current of 12 A.
The motherboard supports four redundant power-supply segments for FOUNDATION Fieldbus H1.
The official product data specifies installation in Zone 2 / Division 2 and lists the applicable ATEX, FM and IECEx approvals.
