ABB AI02J Analog Input Module

Manufacturer: ABB
Product Numbers: AI02J
Product Type: Analog Input Module
Place of 0rigin: Sweden
Signal specification: AI: 4…20 mA,or 1…+5 VDC
Life cycle status: ACTIVE
Number of channels: 16
Signal type: AI with HART
HART: Yes
SOE: No
Redundancy: No
Form factor: Standard (190 mm)
Module power requirements: 24 VDC ± 10%, 100 mA typical
Module power connection: POWER TB on cHBX01L or VBX01T
Field IO power: 24 VDC ± 10%, 20 mA per CH
Overvoltage category: Category I for power, inputs or outputs. Tested according to EN 61010-1
Mounting: Horizontal Row or Vertical Column
MTBF (per MIL-HDBK-217-FN2): PR C: 132,367 Hours
MTTR (Hours): 1 Hours
Use with MTU: HBS01-EPD, HBS01-FPH, VBS01-EPD, VBS01-FPH, VBS01-SFP
Module keying code for base: slot #1 = 05, slot #2 = 19
Temperature, Operating: -40 to +70 °C Tested according to IEC/EN 60068-2-1, IEC/EN 60068-2-2
Temperature, Storage: -40 to +85 °C Tested according to MIL-STD-810G
Relative humidity: 20% to 95% @ 40°C non-condensing. Tested according to IEC/EN 60068-2-78, IEC/EN 61298-3
Vibration (operational sinusoidal) 5 to 60 Hz 0.137 mm (0.0054 in.), 60 to 150 Hz 1.0 G. Tested according to IEC/EN 60068-2-6
Vibration (transportation): 10 to 500 Hz. Tested according to MIL-STD-810G
Shock (storage): 15 G, 11 msec. Tested according to IEC/EN 60068-2-27

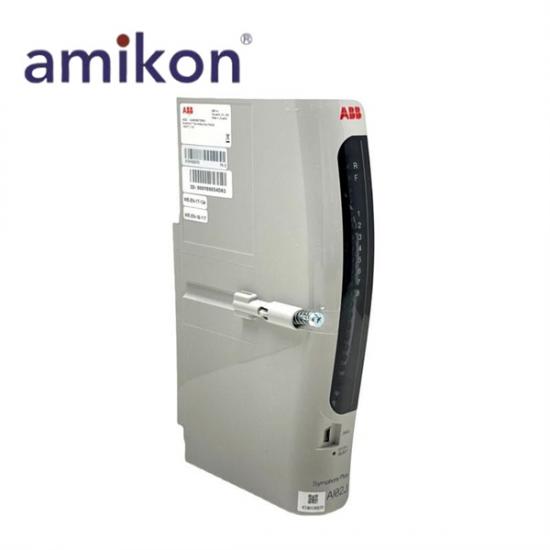

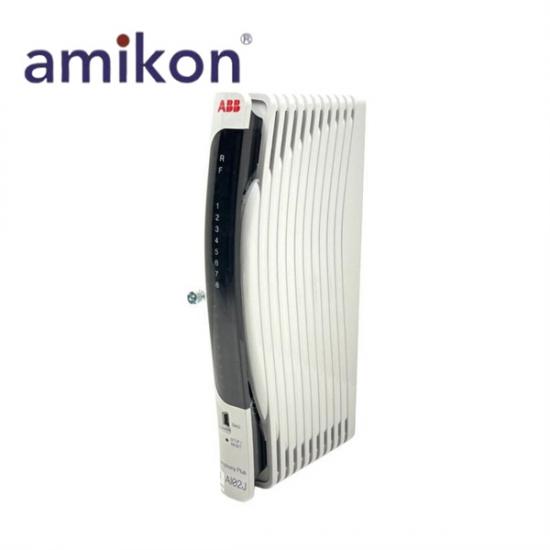

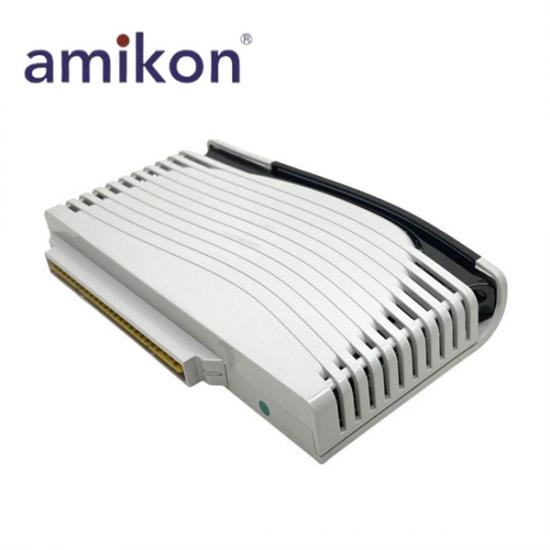

The AI02J Analog Input module processes up to 16 high level, group isolated, analog input field signals. Each channel is independently configurable for either 4 to 20 mA or 1 to +5 VDC ranges. FC 221 (I/O Device Definition) sets AI module operating parameters and each input channel is configured using FC 222 (Analog Input Channel) to set indivdual input channel parameters such as engineering units, High/Low alarm limits, etc.
A/D resolution of each channel is configurable from 12 to 16 bits with polarity. The AI02J module has one A/D converter for all 16 input channels. The module will update 16 input channels in 100 msecs.
In current mode, the AI02J module supports HART v5.4 instruments and provides short circuit protection by limiting current to a maximum of 96 mA. The AI02J module will also detect an open circuit in less than 5 seconds.

Features and benefits

• 16 independently configurable channels supporting:
• 4 to 20 mADC or 1 to +5 VDC
• Up to 24 HART v5.4 secondary variables Total
• Max 4 sec vars per analog input CH
• Sec HART variables available to control logic
• 12 to 16-Bit (with polarity) A/D resolutionV
• A/D update of all 16 Channels in 100 msecs
• Accuracy is ±0.1 % of Full Scale Range where FSR = 25 mA or 6.25 VDC
