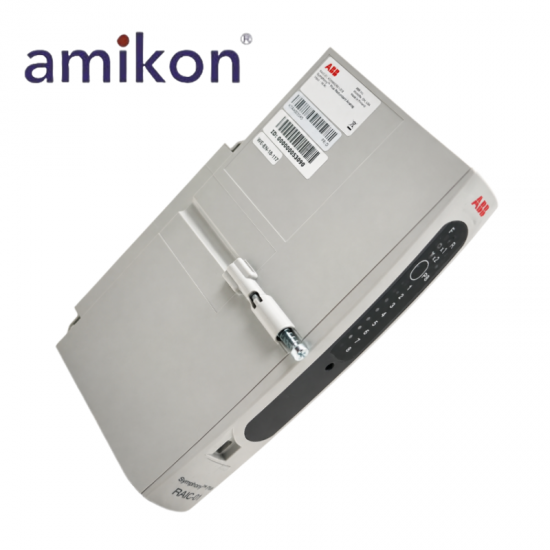

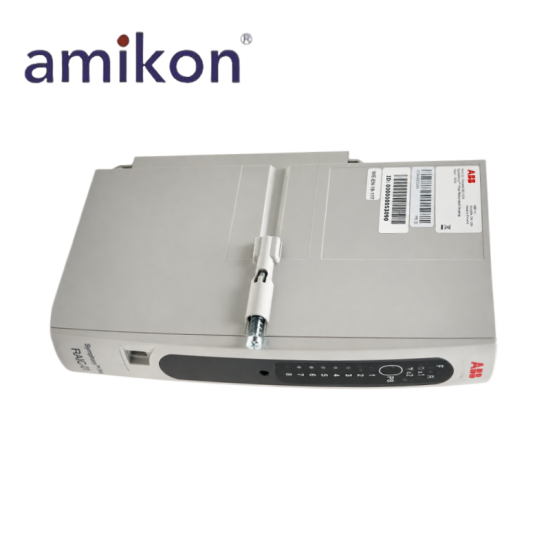

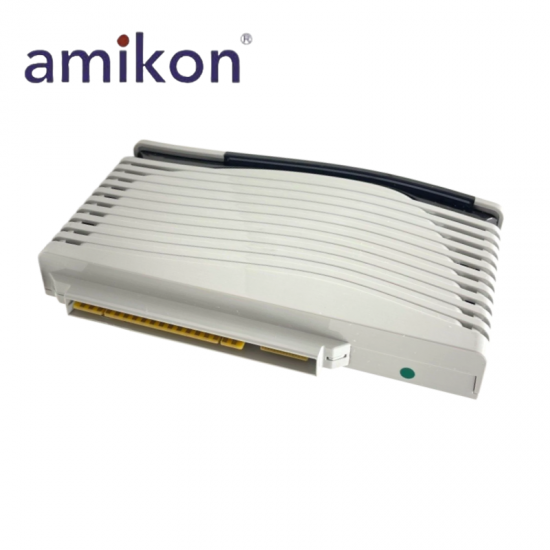

ABB RAI02J Redundant Analog Input Module

Contact Info

ü Sales manager：Jim Pei

ü Email：sales6@amikon.cn

ü Wechat: ZXH18020776782

ü Phone/WhatsApp：+86 18020776782

Product Description

Product Model: RAI02J

Product Parameters: Redundant Analog Input Module

Country of origin: Sweden

Place of shipment: Xiamen, China

Manufacturer: ABB

Stock: 2

Number of channels: 16

Signal type: AI

Redundancy: Yes

Mounting: Horizontal Row or Vertical Column

Module power requirements: 24 VDC ± 10%, 100 mA typical

Field IO power: 24 VDC ± 10%, 20 mA per CH

Analog Inputs: 4…20 mA,or 1…+5 VDC with HART

Input Impedance: 250 Ω current mode (externally powered), >= 250 kΩ voltage mode

Output load: 0 to 750 Ω Current mode, minimum 22kΩ voltage mode

Accuracy, FSR: ±0.1% FSR, FSR = 25 mA or 6.25 VDC

Temp effect on accuracy: Max ±0.003% per deg C

Short circuit protection: Max 96 mA per CH

Temperature, Operating: -40 to +70 °C

Temperature, Storage: -40 to +85 °C

Relative humidity: 20% to 95% @ 40°C non-condensing.

Vibration (operational sinusoidal): 5 to 60 Hz 0.137 mm (0.0054 in.), 60 to 150 Hz 1.0 G.

Vibration (transportation): 10 to 500 Hz.

Shock (storage): 15 G

Advantage

Multi-Channel Analog Signal Acquisition

Provides 16 independently configurable input channels for collecting 4–20 mA current or 1–5 VDC voltage signals from field instruments.

Redundant Operation for High Availability

Supports redundant architecture, ensuring continuous signal acquisition and improving system reliability in critical industrial applications.

HART Communication and Smart Device Data Access

Enables HART v5.4 communication, allowing retrieval of primary, secondary, and diagnostic variables from smart field devices for enhanced process visibility.

High-Precision Signal Processing

Delivers 12–16 bit resolution with ±0.1% full-scale accuracy, ensuring stable and accurate measurement of analog process signals.

Fast and Reliable Data Update

All channels are refreshed within approximately 100 ms, supporting real-time monitoring and control in distributed control systems.

Electrical Isolation and Industrial Protection

Provides 1500 V galvanic isolation, strong noise immunity, and short-circuit protection per channel, ensuring safe and stable operation in harsh electrical environments.
