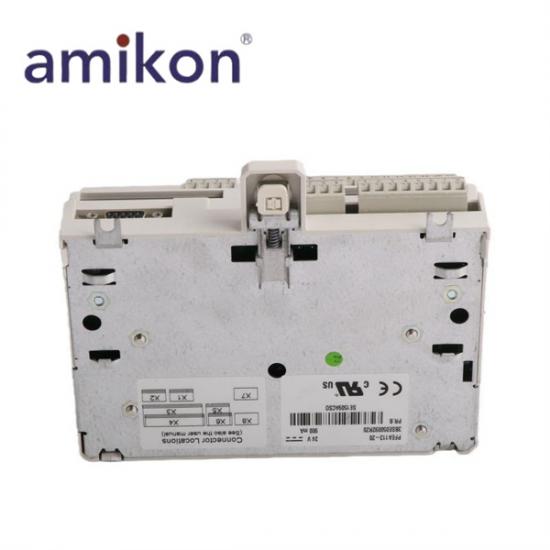

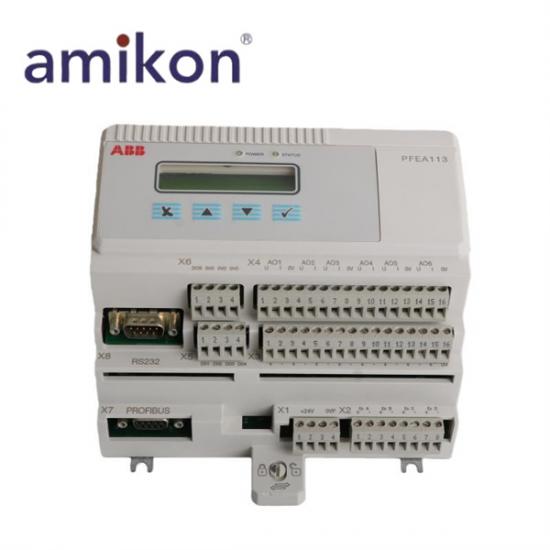

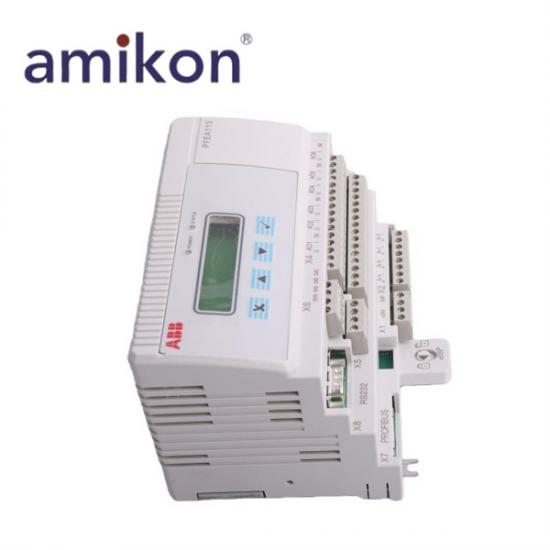

ABB 3PFEA113 3BSE028144R0020
Brand:
ABBPayment:
T/TProduct Origin:
SwedenLead Time:
IN STOCKManufacturer:
ABBPart number:
PFEA113 3BSE028144R0020Dimension:
16x13.5x11cmWeight:
0.74kgHS CODE:
8537101190Warranty:
12 month|
Product Information |
Manufacturer: ABB
Product Numbers: PFEA113 3BSE028144R0020
Product Type: Tension Electronics
Place of 0rigin: Sweden
IP20 voltage: DC 24 V (18 - 36 V）
Power requirement: 12 W
IP65 main voltage: DC 24 V (18 - 36 V) 100 (-15%) - 240 (+10%) V AC
Frequency: 45 - 65 Hz
Number of load cells: 4
Current: 0.5 A rms, 330 Hz
Max. load: 4 load cells plus 10 Ω cable resistance
The ABB PFEA113 3BSE028144R0020 is a high-performance tension electronics module designed for accurate web tension measurement and control in continuous manufacturing processes. Operating on 24 V DC (18–36 V) with a power requirement of 12 W, the unit supports up to four load cells and delivers stable signal processing with a current of 0.5 A rms at 330 Hz. It is available in both IP20 DIN-rail and IP65 enclosed (NEMA 4) versions, allowing installation in standard control cabinets or harsher industrial environments. With compatibility across multiple load cell models such as PFCL, PFTL, and PFRL series, the module offers flexible integration into various tension measurement systems.
Engineered for advanced functionality, the PFEA113 provides six configurable analog outputs along with Profibus-DP communication, enabling seamless integration into control and monitoring systems. It features gain switching (gain scheduling) for dual web paths, digital zero setting, and self-diagnostic capabilities with status feedback via both digital outputs and Profibus. The system can be expanded by combining up to three units, supporting segmented roll applications with up to 12 load cells, making it ideal for winders and similar machinery. Its intuitive multi-language display (2 × 16 characters) and configuration keys enhance usability, allowing operators to monitor total, differential, or individual load cell signals efficiently.
|
