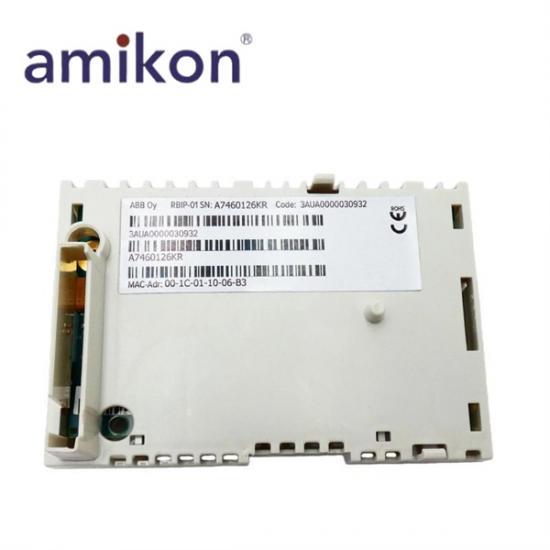

ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module

Manufacturer: ABB
Product Numbers: RBIP-01 3AUA0000030932
Product Type: BACnet/IP Router Module
Place of 0rigin: Sweden
Mounting: Into the option slot on the control board of the drive.
Degree of protection: IP20
Power supply: 12...26 V DC / AC, 200 mA, internal fuse
Resistors:
• Network bias resistors, 560 ohms (DIP switches)
• Network termination resistor, 120 ohms (DIP switch)
Weight: <100 g
Ambient temperature range: 0...45 °C, 32…113 °F
Ambient humidity range: 20...80 percent relative humidity, non condensing

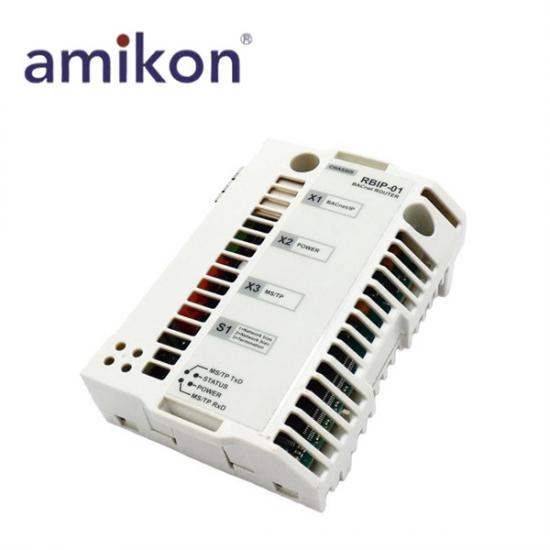

Indicators: Six LEDs (POWER, MS/TP TxD, MS/TP RxD, STATUS, an orange and a green network LED).

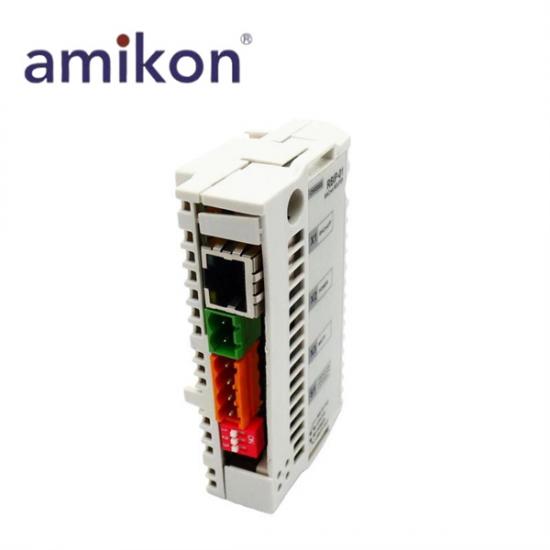

Connectors:
• 2-pin connector for power supply
• 4-pin connector for EIA-485
• RJ-45 connector
Serial port:
• 1×serial port EIA-485 BACnet MS/TP; B (+), A (-), AGND, Shield
Ethernet link:
• 1×RJ-45 10/100 Base T Fast Ethernet Port
• Termination: Internal
• Wiring: CAT 5 UTP, CAT 5 FTP* or CAT 5 STP* (*Recommended)
• Connector: RJ-45
• Maximum segment length: 100 m
Topology: Bus, star Serial communication type: Half and full Duplex
Transfer rate: 10/100 Mbps

The ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module is a compact snap-on device designed for seamless integration into ABB ACH550 drives for HVAC applications. It fits directly into the option slot on the control board of the drive, providing a lightweight (<100 g) and space-efficient solution while maintaining full compatibility with both current and older ACH550 drive generations.
Equipped with a 10/100 Mbps RJ‑45 Ethernet port and a serial EIA‑485 BACnet MS/TP port, the RBIP‑01 module allows flexible network configurations including bus or star topologies, supporting both half- and full-duplex communication. It also includes network bias and termination resistors (DIP switch configurable), and a 12–26 V DC/AC power supply with internal fuse protection, ensuring reliable operation in environments with 0–45 °C ambient temperature and 20–80 % relative humidity.
The ABB RBIP-01 BACnet/IP Router Module features an internal web server that enables convenient commissioning and BACnet/IP configuration via a PC. Six LED indicators provide clear status feedback (POWER, MS/TP TxD/RxD, STATUS, network LEDs), while the device supports CAT 5 cabling for Ethernet links up to 100 m. This combination of integrated network routing, monitoring indicators, and user-friendly configuration makes the RBIP‑01 an ideal solution for efficient HVAC network management.
